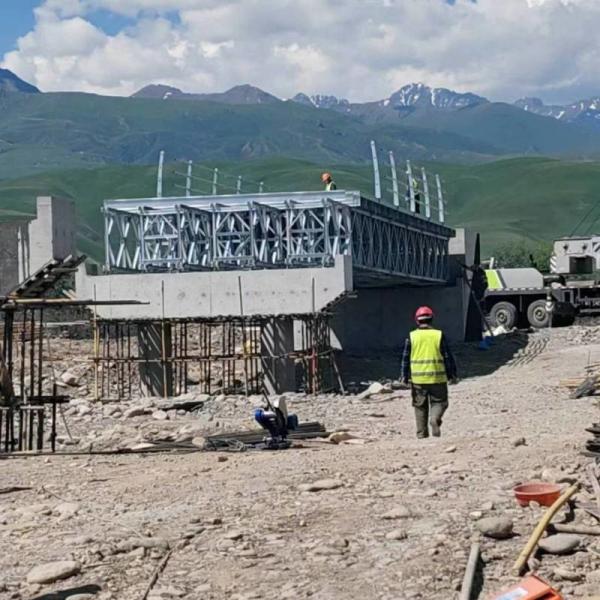

Temporary Steel Modular Bridge/steel Frame Bridge For Sale

The "200-Type" Bailey bridge is an advanced modular steel bridge system designed for rapid deployment and high load-bearing capacity. It is widely used for both temporary and permanent bridge solutions, particularly in emergency response, disaster relief, and infrastructure projects.

Key Features
- **Design and Construction**: The 200-Type Bailey bridge is constructed using high-strength steel panels with a truss height of 2.134 meters.This increased height compared to the 321-Type allows for greater load capacity and stability.
- **Load Capacity**: It supports various load classes, including HS-15, HS-20, HS-25, HL-93, and tracked vehicles up to 50 tons.The bridge can be configured for single or double lanes, with clear widths of 3.15 meters, 4.2 meters, and 7.35 meters.
- **Span and Flexibility**: The maximum single span can reach up to 60.96 meters, with the bridge length adjustable in increments of 3.048 meters.This flexibility allows for a wide range of applications and adaptability to different terrains and requirements.
- **Rapid Deployment**: The modular design enables quick assembly and disassembly, making it ideal for emergency situations where rapid response is crucial.
- **Durability and Maintenance**: The bridge components are designed for long-term use with minimal maintenance. Options for galvanization or painting provide additional corrosion resistance.

Applications
The 200-Type Bailey bridge is suitable for a variety of applications, including:
- **Emergency and Temporary Bridges**: Ideal for disaster relief, military operations, and temporary infrastructure.
- **Permanent Bridges**: Due to its durability and load capacity, it can also be used for permanent or semi-permanent bridge solutions.
- **Construction and Engineering Projects**: Used as construction trestles, formwork supports, or temporary access bridges.

Advantages
- **High Stability and Safety**: The design includes features like wind-resistant braces and pre-arched construction to enhance stability.
- **Easy Assembly and Disassembly**: The use of standardized components and pin-and-bolt connections allows for quick and easy construction.
- **Cost-Effective**: The modular nature and reusability of components make it a cost-effective solution for both short-term and long-term needs.

In summary, the 200-Type Bailey bridge offers a versatile, durable, and rapidly deployable solution for a wide range of bridge applications, making it a valuable asset in both emergency and permanent infrastructure projects.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
