Specifications
Delivery Time :
15-30 working days
Certification :
VERIFICATION OF CONFORMITY
Model Number :
ZRB-500B
Automatic grade :
Semi-Automatic
Price :
Negotiable
Packaging material :
PVC POF Heat shrinkable film
Supply Ability :
10 sets per month
Payment Terms :
T/T
Scope of application Diameter/ Width :
Ø(10-185) / W(50-400) MM
Place of Origin :
CHINA
Packaging Details :
Wooden Case
Type :
Wrapping Machine
Brand Name :
ZHIROBO
Application :
Tapes
MOQ :
1 set
Condition :
New
Description
Patented Cold Cutting Semi-Automatic Tape Cuff Packaging Machine For PVC POF Film
Equipment Advantages
  • Patented Cold Sealing & Cutting Technology
    Incorporates an innovative patented cold sealing and cutting system, delivering smooth and refined sealing results. The sealing and cutting blades operate without heat, preventing material adhesion and improving packaging quality.​
  • Exceptional Energy Efficiency
    Designed for low power consumption, with daily electricity usage of only approximately 3 kWh, significantly reducing operating costs.​
  • Adjustable Width & Diameter Design
    Features a patented adjustable structure that enables quick and convenient adaptation to different product sizes and packaging requirements.​
  • High-Speed Packaging Performance
    Achieves packaging speeds of up to 21 packs per minute, improving production efficiency while maintaining consistent quality.​
  • Stable Film Feeding System
    Equipped with a specialized material storage structure to ensure smooth and stable film release, preventing film deviation during operation.​
  • Precise Product Positioning
    Advanced discharge positioning technology ensures accurate product placement and tight, secure packaging without looseness.​
  • Strong & Durable Steel Construction
    Built with a robust steel frame structure, providing excellent stability, durability, and long-term operational reliability.
Basic Use

The sleeve wrapping machine is primarily designed for shrink packaging of cylindrical products, widely used in adhesive products, medical treatment, printing, textile, and other industries. Suitable for packaging stationery tape, double-sided tape, sealing tape, masking tape, mesh tape, electrical tape, label paper, self-adhesive materials, and other products in both whole-tube and single-roll packaging configurations.

Main Technical Parameters
Parameter Specification
Name/Model ZRB-500B
Scope of application Diameter/ Width Ø(10-185) / W(50-400) MM
Packing speed/min

21 PCS/min

Power supply Single-Phase AC200-240V, 50-60HZ 400W
Air supply pressure 5KG
Machine size 1200(L) * 1100(W) * 1720(H)
Weight 200kg
Packing film PVC POF Heat shrinkable film
Configuration Parameters
Component Brand/Model
Model Semi-auto Sleeve Wrapper ZRB-500B
Touch screen Mcgstpc
PLC CHSJL
Air switch Chint
Switching Mode Power Supply Mingwei
Contactor Schneider
Relay IDEC
Solid state relay NNC
Button switch Kndele
Solenoid valve China STNC
Cylinder CNTUOPU
Thermostat -
Electric machinery Sanly
Governor -
Photoelectric sensor Taiwan Yangming
Proximity switch CNTD
Pneumatic joint EASUN
High temperature adhesive tape JAPAN NITTO
Filter China STNC
Bearing NSK HRB

Note: Components marked with "-" indicate standard or unspecified components

Equipment Overview

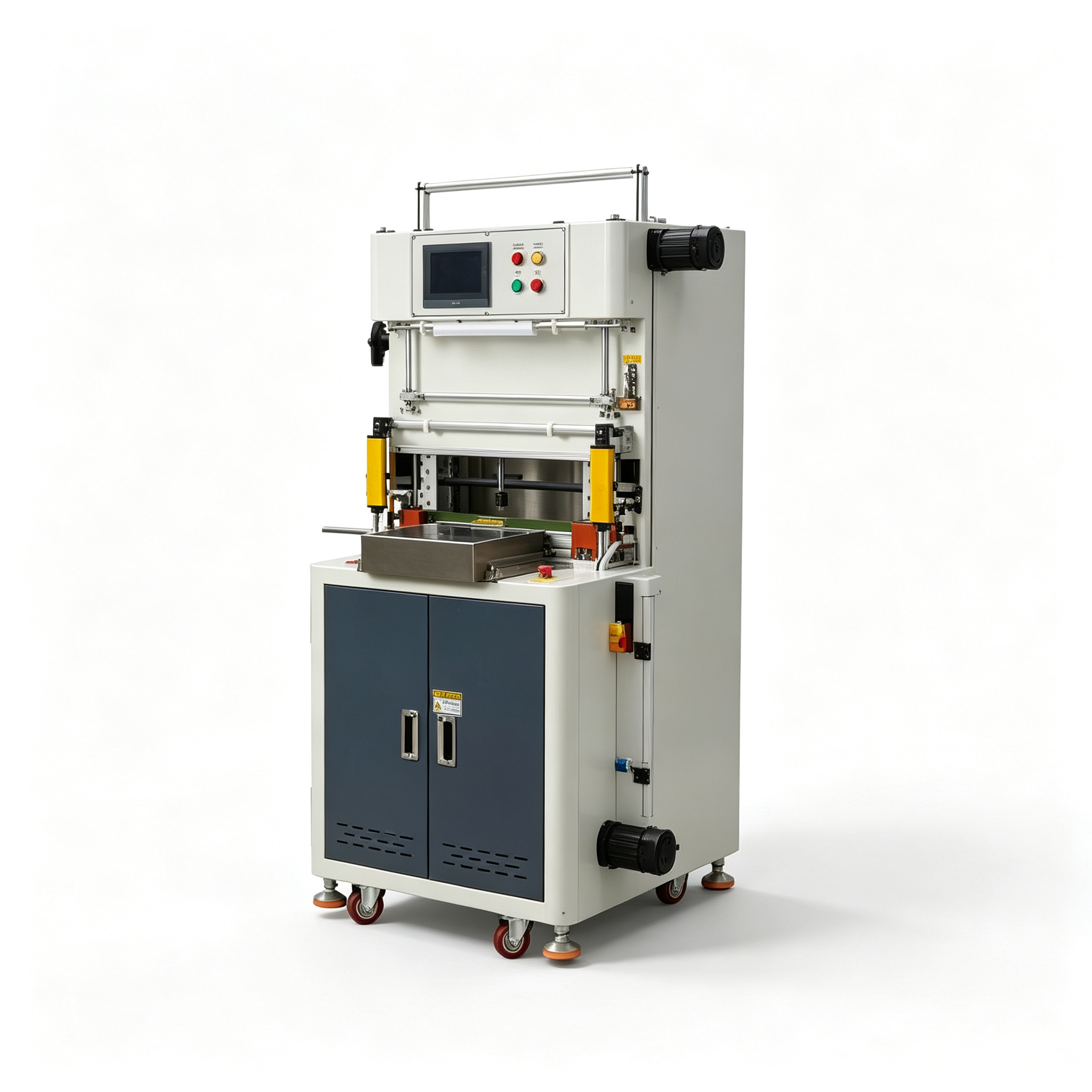

Cold Cut Shrink Wrapping Machine Semi Auto Tape Cuff Packaging Machine For PVC POF Film

Cold Cut Shrink Wrapping Machine Semi Auto Tape Cuff Packaging Machine For PVC POF Film
