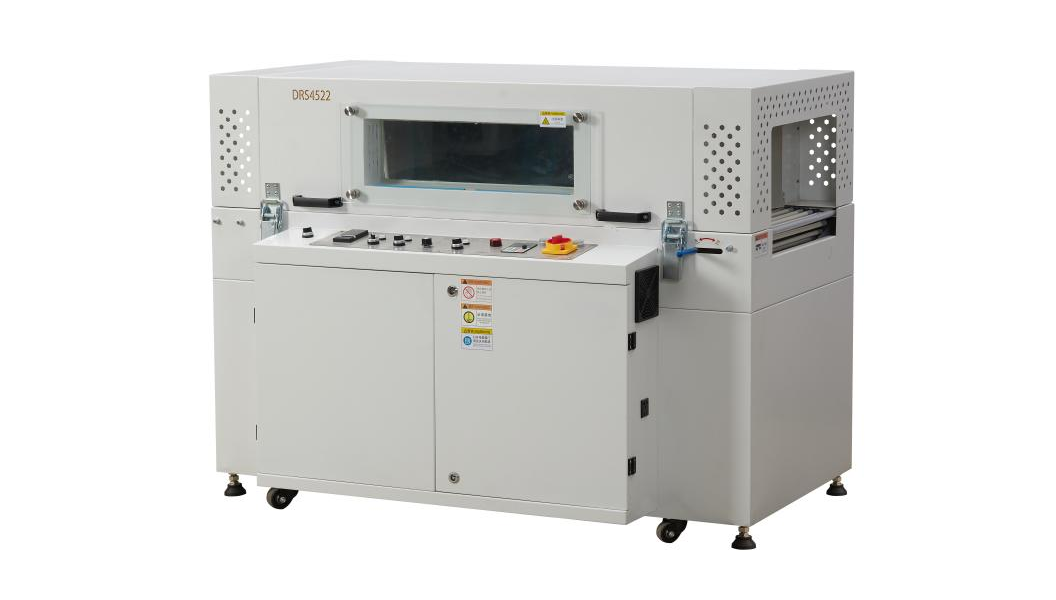

Variable Frequency Shrink Wrapping Machine Visible Shrink Tunnel Packaging Machine
Variable Frequency Shrink Wrapping Machine Visible Shrink Tunnel Packaging Machine
Specifications
Model Number :
DRS-4522
Applicable Industries :
Food, daily chemical
Certification :
VERIFICATION OF CONFORMITY
Machinery Test Report :
Provided
MOQ :
1 set
Price :
Negotiable
Heating Temperature Range :
0-300°C
Packaging Details :
Wooden Case
Packing Type :
Wooden case
Place of Origin :
CHINA
Payment Terms :
T/T
Packing Material :
PE film
Delivery Time :
15-30 working days
Mouth Shape :
flat mouth heat shrink
Brand Name :
ZHIROBO
Packaging Type :
Cartons, CANS, Bottles, Barrel, Film
Description
Intelligent Visible Variable-Frequency Heat Shrink Tunnel Heating Tubes DRS-4522
Basic Use:

Ideal for heat shrink wrapping across a wide range of sectors including adhesive products, daily chemicals, gifts, toys, medical supplies, food, and cosmetics.

Equipment Benefits:

  • The intelligent visual frequency conversion heat shrink furnace features a heating system insulated with high-temperature resistant rock wool, maintaining a low external surface temperature during operation and minimizing energy waste.
  • This machine is fitted with stainless steel heating elements, ensuring extended durability and reliable performance.
  • A custom-engineered air circulation duct design guarantees consistent and uniform heating for all packaged items. Dual high-power imported circulation fans generate strong, balanced airflow within the shrink chamber, with fully adjustable wind speed.
  • The exterior casing of the shrink tunnel is constructed from bent carbon steel with a powder-coated finish, while the interior lining uses precision-formed galvanized steel sheets.
Main Technical Parameters:
Name/Model DRS-4522
Heating tunnel size (length * width * height) 1200x450x220mm
Applicable Product size (width * height) 300x150mm
Packing speed/min 23 PCS/min
voltage 220-380v 50-60HZ
power 8KW
Conveying speed 0-15m/min
Conveying material Chain stick
Conveying load 30kg max
Overall Machine size 1500x890x1100mm
Weight 170kg
Packing film PVC POF Heat shrinkable film
Configuration Parameters:
Model DRS-4522
frequency converter cost
speed motor Zhan Peng
Three phase asynchronous fan Yunchi
air switch chint
Contactor chint
Phase failure and phase sequence protector chint
relay chint
Button switch heli
thermostat BERM
Heating pipe 1.8KW Metal ring
Insulation layer Made of high-temperature resistant rock wool
Equipment Layout:

Variable Frequency Shrink Wrapping Machine Visible Shrink Tunnel Packaging Machine

Variable Frequency Shrink Wrapping Machine Visible Shrink Tunnel Packaging Machine
