PLC Control Shrink Band Tunnel 30KG Load Tape Roll Packing Machine For Shrink Effect Check
PLC Control Shrink Band Tunnel 30KG Load Tape Roll Packing Machine For Shrink Effect Check
Specifications
Model Number :
DRS-4522
Model :
DRS-4522
Packaging Details :
Wooden Case
Delivery Time :
15-30 working days
Packing speed :
23 PCS/min
Control system :
PLC Touch Screen
Weight :
170kg
Conveying material :
Chain stick
Applicable Product size (width * height) :
300x150mm
Overall Machine size :
1500x890x1100mm
Place of Origin :
CHINA
Price :
Negotiable
Heating tunnel size :
1200x450x220mm
Payment Terms :
T/T
Packing film :
PVC POF
Brand Name :
ZHIROBO
Type :
Wrapping Machine
Certification :
VERIFICATION OF CONFORMITY
MOQ :
1 set
Description
Heat Shrink Tunnel With Front Visible Window For Real-Time Shrink Effect Check 30KG Load
Basic Use:

It is suitable for heat shrink packaging of adhesive products, daily chemicals, gifts, toys, medical supplies, food, cosmetics and other industries.

Equipment Advantages:
  • The thermal insulation layer of the heating system of the intelligent visible variable-frequency heat shrink tunnel is made of high-temperature resistant rock wool, which keeps the surface temperature low during operation and reduces heat loss.
  • Our equipment utilizes stainless steel heating tubes (heating elements) to achieve prolonged service life.
  • The air circulation duct system is specially designed to ensure uniform heating of products. Equipped with two high-power imported air circulation motors, it delivers large and even air volume inside the shrink tunnel with adjustable wind speed.
  • The outer panels of the heat shrink tunnel are bent from ordinary carbon steel sheets with plastic-sprayed surface treatment, while the inner panels are hydraulically processed galvanized sheets.
Main Technical Parameters:
Name/ModelDRS-4522
Heating tunnel size (length * width * height)1200x450x220mm
Applicable Product size (width * height)300x150mm
Packing speed/min23 PCS/min
voltage220-380v 50-60HZ
power8KW
Conveying speed0-15m/min
Conveying materialChain stick
Conveying load30kg max
Overall Machine size1500x890x1100mm
Weight170kg
Packing filmPVC POF Heat shrinkable film
Configuration Parameters:
ModelDRS-4522
frequency convertercost
speed motorZhan Peng
Three phase asynchronous fanYunchi
air switchchint
Contactorchint
Phase failure and phase sequence protectorchint
relaychint
Button switchheli
thermostatBERM
Heating pipe1.8KW Metal ring
Insulation layerMade of high-temperature resistant rock wool

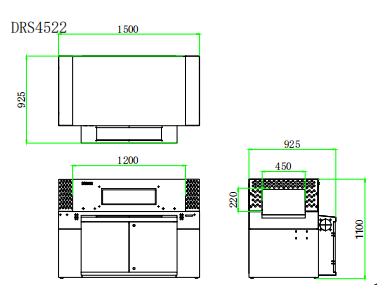

Equipment Layout:

PLC Control Shrink Band Tunnel 30KG Load Tape Roll Packing Machine For Shrink Effect Check
PLC Control Shrink Band Tunnel 30KG Load Tape Roll Packing Machine For Shrink Effect Check
