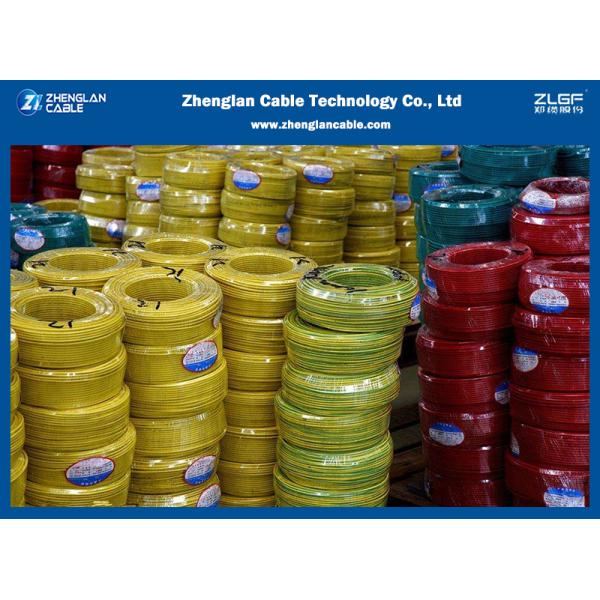

PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%
PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%
PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%
PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%
Specifications
Brand Name :
Zhenglan cable
Model Number :
BVVB House Electric Wiring Cable
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
100 meters
Price :
Negotiation
Payment Terms :
L/C, T/T,
Supply Ability :
150KM
Delivery Time :
7-15 days
Packaging Details :
100m/roll, with wooden box, as customer's request.
Conductor Material :
99.99% oxygen-free Copper
Sheath :
PVC
Application :
used in the switch control
Shelf Life :
30 years
Color :
Red/Yellow/Blue/Green/Black...
Insulation :
PVC
Port :
Qingdao or Shanghai
Country of Origin :
China
Description

PVC Insulated and PVC sheathed Flat cable(BVVB cable)

Application :
Suitable for surface wiring indoor or outdoor.

Construction:
Core number: 2core, 3core

Conductor: Solid or Stranded Annealed copper/ aluminum

Insulation: PVC insulation
Outer sheath: PVC sheath.

Rated voltage: 300/500V

Test voltage: 2000V

Physical characteristics

Max working temperature: 70°C

Mounting temperature: 0°C-+40°C

Minimum bending radius:

For cable with diameter below 25mm, allowed bending

radius should not be less than 4D;

For cable with diameter above and including 25mm,

allowed bending radius should not be less than 6D;

Standard: IEC227-4 or JB/T8734.2-2016

Packing: 100m per roll (per coil or plastic reel, as your request)

Technical Sheet:

Nom. Cross Section Area (mm²) Approx O.D mm Thickness of insulation Thickness of sheath 20℃max. Conductor resistance (Ω/km) 70℃min. Insulation resistance(mΩ/km)
2×0.75 4.6×7.1 0.6 0.9 24.5 0.013
2×1.0 4.8×7.4 0.6 0.9 18.1 0.012
2×1.5 5.3×8.5 0.7 0.9 12.1 0.012
2×2.5 6.2×10.1 0.8 1.0 7.41 0.010
2×4.0 6.7×11.1 0.8 1.0 4.61 0.0087
2×4.0 6.9×11.5 0.8 1.0 4.61 0.0083
2×6.0 7.5×12.5 0.8 1.1 3.08 0.0074
2×6.0 7.8×13.0 0.8 1.1 3.08 0.0070
2×10.0 9.5×16.2 1.0 1.2 1.83 0.0067
3×0.75 4.6×9.6 0.6 0.9 24.5 0.0013
3×1.0 4.8×10.1 0.6 0.9 18.1 0.0012
3×1.5 5.3×11.7 0.7 0.9 12.1 0.0011
3×2.5 6.2×14 0.8 1.0 7.41 0.0010
3×4.0 7.0×15.8 0.8 1.0 4.61 0.0087
3×4.0 7.1×16.3 0.8 1.0 4.61 0.0083
3×6.0 7.5×17.5 0.8 1.1 3.08 0.0074

PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%

PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%

PVC Sheathed Flat Flexible Building Wire And Cable Shelf Life BVVB Cable 99.99%

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
