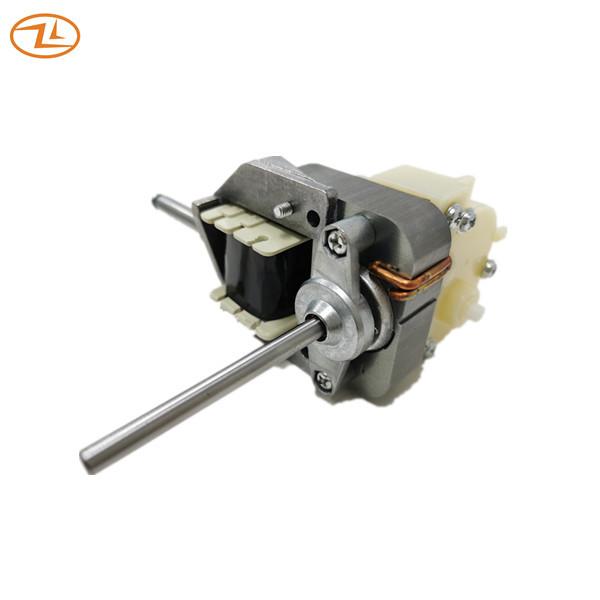

60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan
60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan
60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan
60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-14
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
Fan motor
Rated voltage :
220V 60HZ
Stack size :
61x60.5mm
Lamination :
14mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
Oscilating fan
Description

Shaded Pole Motor With Gearbox For Oscilating Stand Fan 220V 60HZ

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Rated voltage/frequency V/HZ 220V 60HZ
Voltage fluctuation ±5% of rated voltage
End play 0.2-0.8mm
High speed Rated current 0.165±20%A
Rated power 21.5±20%W
Rated speed 2350±200RPM
Low speed Starting voltage <= 176V
Rated current 0.135±20%A
Rated power 17.5±20%W
Rated speed 2150±200RPM
Rising Temp. IEC60335-1 <85K
Lock Temp. IEC60335-1
High-voltage test 1800VAC/2mA/1S
Cold insulation resistance >= 100MΩ


Drawing:

60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan

Application: Stand fan, Oscilating fan

60hz Gearbox 220v Shaded Pole Motor For Oscilating Stand Fan
