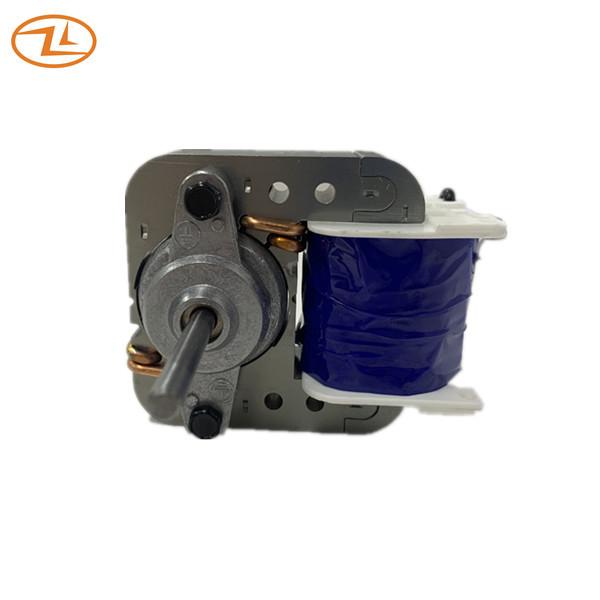

Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/200
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
120V 60HZ
Stack size :
62.5x62.5mm
Lamination :
20.5mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
water dispenser
Description

Shaded Pole Motor Zhaoli Motor Fan Motor YJ62/200 For Cooling Purpose Long Life

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 On Load (fan blade)
Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ62/200 120 60 <207 <0.12A <56W >2400

Working Temp. 0~40℃
Working humidity 90% RH max
Voltage fluctuation 5% range of the rated voltage at rated load
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.


Drawing:

Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor

Application: Cooling fan, Water dispenser

Zhaoli Cooling Fan Motor 2400 RPM 120V 1 Phase Asynchronous Motor
