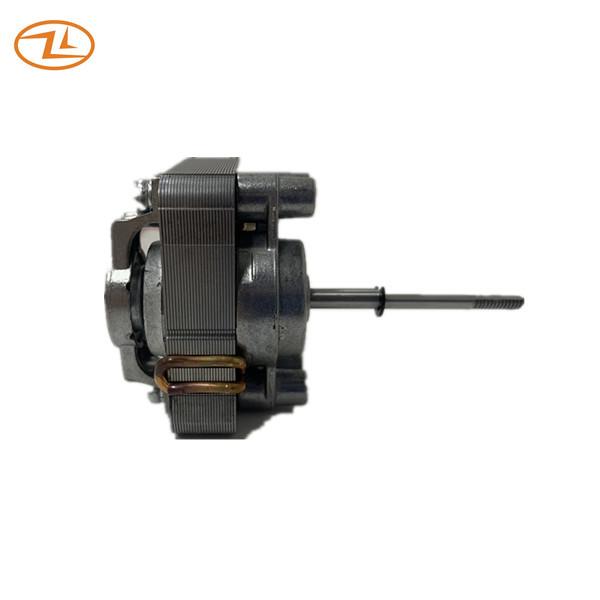

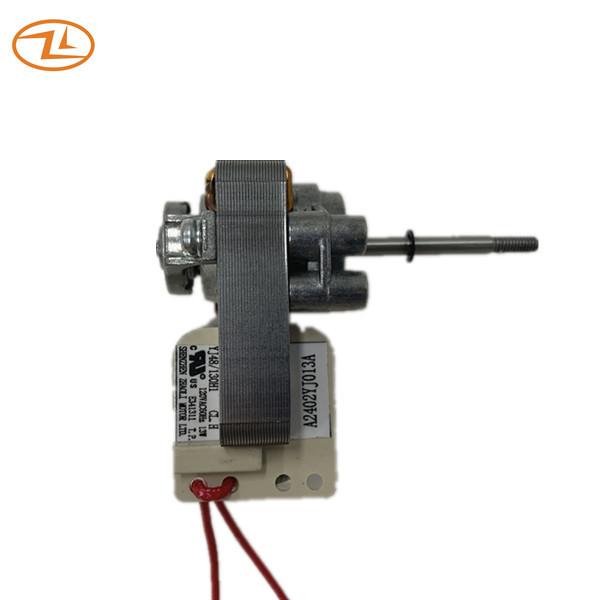

YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series
YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series
YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series
YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series
Specifications
Brand Name :
Zhaoli
Model Number :
YJ48-12
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
230V 50HZ
Stack size :
48x50mm
Lamination :
12mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection/ corrision protection
Application :
tangential fan
Description

YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series

Fan Motor Shaded Pole Motor YJ48/200 Low Noise YJ48/200 CL.H 230V 50HZ

This is one type of shaded pole motor. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions. We can also provide fan impellers.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 On Load (fan blade)
Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ48-12 230 50 <207 <0.25A <16W >1800

Working Temp. 0~40℃
Working humidity 90% RH max
Voltage fluctuation 5% range of the rated voltage at rated load
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.


Drawing:

YJ48 12 Shaded Pole Motor Low Noise 230V 50HZ Single Phase Series

Application: Tangential fan, blower fan, cross flow fan
