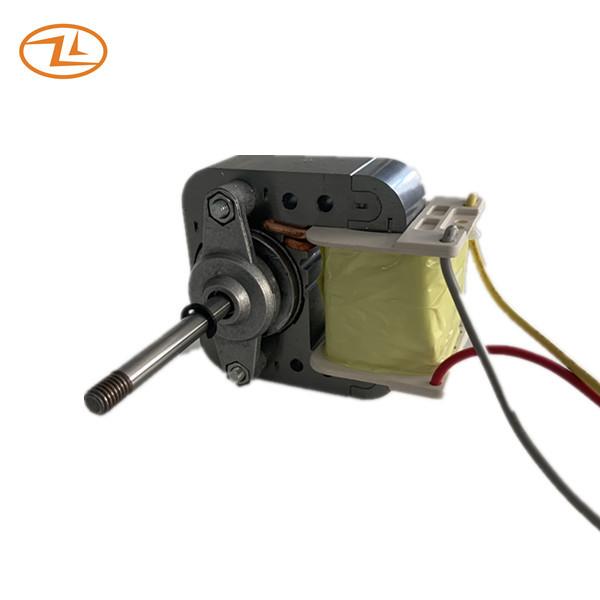

Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-20
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
127V 60HZ
Stack size :
62.5x62.5mm
Lamination :
20mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
circulator fan
Description

Shaded Pole Motor Fan Motor Zhaoli Motor YJ62-20 With Three Speed Steps

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 On Load (fan blade)
YJ62-20 127V 60HZ High speed Medium speed Low speed
Current A 0.55+/-15% 0.44+/-15% 0.28+/-15%
Input power W 38+/-15% 31+/-15% 20+/-15%
Speed RPM 2400+/-10% 2050+/-10% 1450+/-10%

Drawing:

Fan Shaded Pole Motor YJ62 20 127V With Three Speed Steps

Application: Circulator Fan, Heater Fan, Stand fan, Table fan
