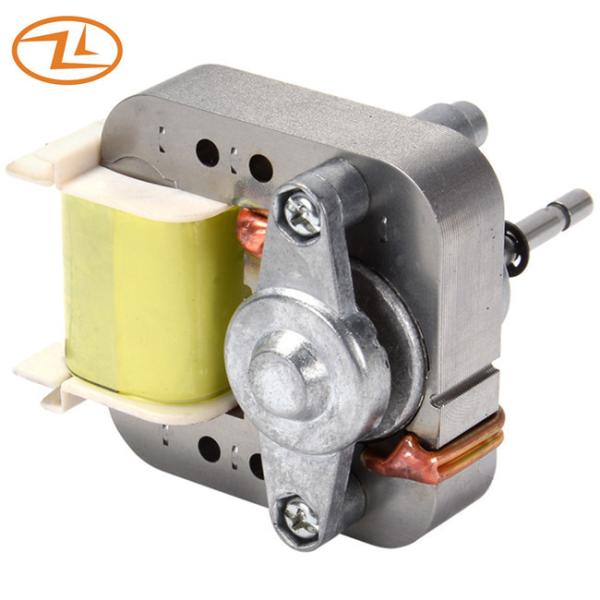

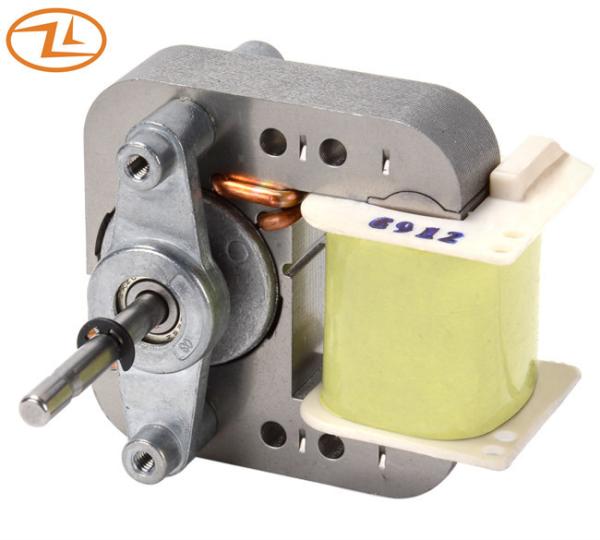

Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor
Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor
Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor
Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-16
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
C-frame motor
Rated voltage :
120V 60HZ
Stack size :
61x60.5mm
Lamination :
16mm
Insulation class :
A/E/B/F/H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
up to the application
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Explosion-proof/ rust proof
Application :
Electric fan/white noise/humidifier
Description

Shaded pole motor C-frame motor YJ61-16 120V 60HZ fan motor Ball bearing Sleeve bearing optional

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.


Product General Performance Parameters:

Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35

Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.


Application:
Ovens, Microwave ovens, Air-conditioners, Refrigerators, Washing machines, Fan heaters, Ventilators,
Humidifiers, Water-pumps, Air-fresheners,Humidifiers.

Specification:

Model

Dimensions

Rated voltage

V

Rated frequency

HZ

 Free load On load
A B

Current

A

Speed

RPM

Current

A

Input power

W

Output power

W

Speed

RPM

Torque

G.CM
YJ61-8A 8 Φ3.17 220 50 0.14 2900 0.15 15 1.4 2230 63
YJ61-10D 10 Φ4 220 50 0.1 2910 0.12 13 2.2 2200 100
YJ61-12F 12 Φ5 220 50 0.17 2930 0.19 18 3.5 2310 150
YJ61/200 13.5 Φ5 120 60 0.28 3400 0.32 21 3 2200 140
YJ61-20E 30 Φ6 220 50 0.35 2960 0.45 45 6 2350 260
YJ61-40 40 Φ6 220 50 0.6 2930 0.65 74 20 2500 800

Drawing:

Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor

Rust Proof 100W Shaded Pole C Frame Motor YJ61-16 120V 60HZ Fan Motor
