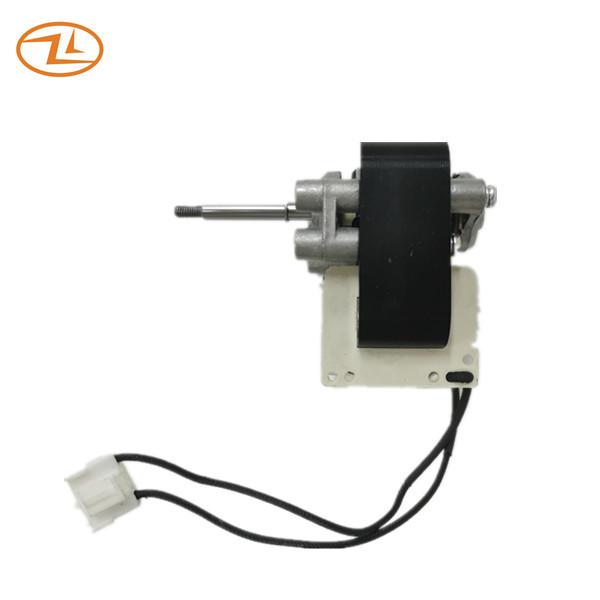

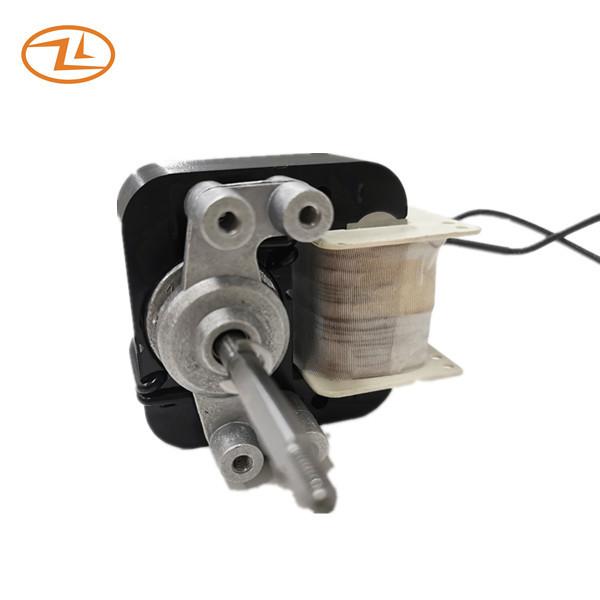

AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-20
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor 611302
Rated voltage :
100V 50/60HZ
Stack size :
61x60.5mm
Lamination :
25mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
blanket dryer
Description

AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

This is one type of shaded pole motor, mainly applied in dehumidifer with oscilating fan, fan heaters, circulator fan.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (fan blade)

Current

A

Input power

W

Speed

RPM

 Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ61/300 100 50 1.10+/-15% 44+/-15% 2700+/-10% 1.10+/-15% 52+/-15% 2000+/-10%
100 60 0.75+/-15% 34+/-15% 3300+/-10% <80V 0.80+/-15% 45+/-15% 2000+/-10%


Drawing:

AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack

Application: Blanket dryer

AC Shaded Pole Motor For Blanket Dryer 100V 50/60HZ 611302 Black Painted Stack
