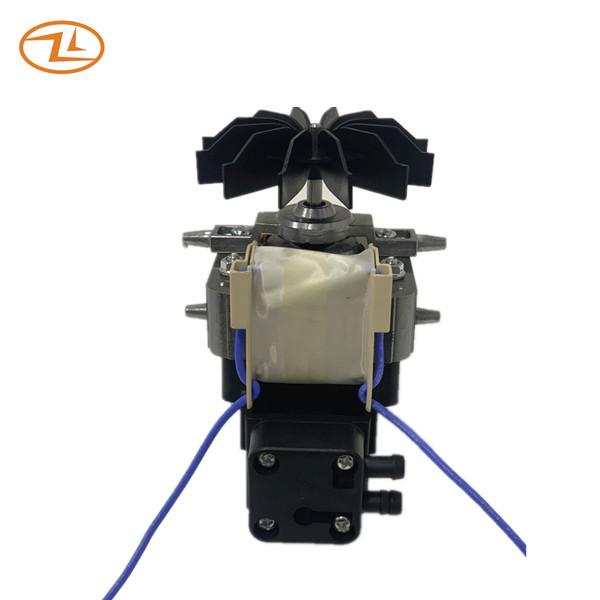

9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/400
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220-230V 50HZ
Stack size :
62.5x60.5mm
Lamination :
20.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.H
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer
Description

YJ62/200 Nebulizer Compressor Motor Air Pump 220-230V 50HZ Zhaoli Motor

Working Condition:

ITEM SPECS
Rated voltage/frequency V/HZ 220-230VAC 50HZ
Working voltage range V 220-230VAC +/- 10%
Insulation class CL.H
Working Temp 0 ~ 40℃
Storage Temp -20 ~ 60℃
Working humidity 20 %~ 85% RH
Storage humidity 10 %~ 95% RH

Performance:

ITEM SPECS
Power consumption 230V 50HZ <110VAC
Max pressure Kpa >130Kpa
Max flow rate L/M >9L/M
Working pressure Kpa 220V 50HZ >50Kpa
Dielectric strength It shall be enough to withstand with application AC1500V/1s/0.5mA. No puncture.
Thermal fuse 150℃
Vibration <0.5mm
Safety Under locked-rotor condition, no fire, no flame.
Life >1000hours
Environmental impact Conform to RoHS

Drawing:

9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa

Application: Compressor Nebulizer

9L/M Air Pump Nebulizer Compressor Motor YJ62 200 230V 130 Kpa
