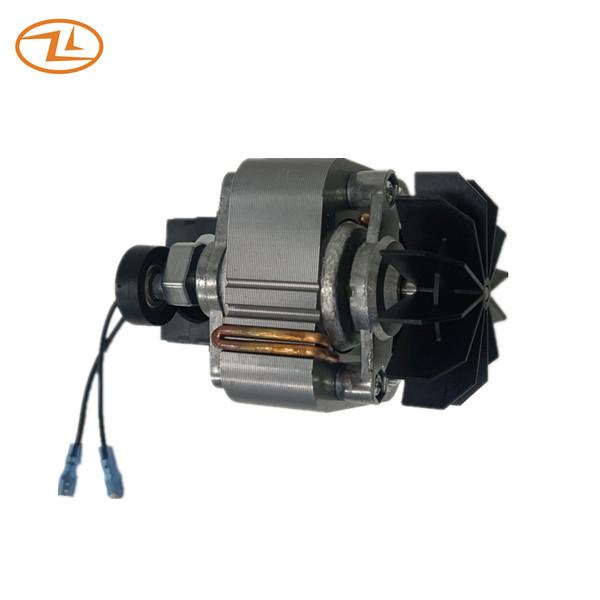

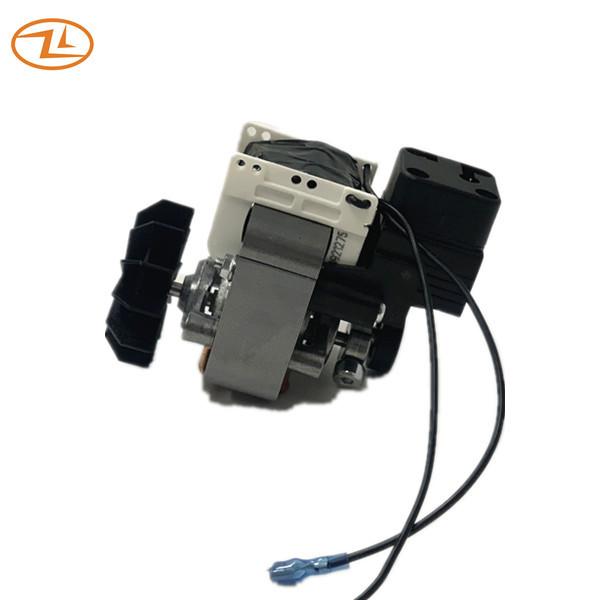

Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/Vacuum use/Inhaler
Description

Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire

This kind of pump is piston compressor pump. Mainly it is used for compressor nebulizer, automizer, suction pump.

Specification:

Rated voltage/frequency V/HZ 230V 50HZ
Rated current A 0.70A max
Rated input power W 68W max
Starting voltage V 200V max
Working air pressure PSI 10PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 30PSI min
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.


Drawing:

Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire

Application: Piston air compressor nebulizer

Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
