2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/ suction machine
Description

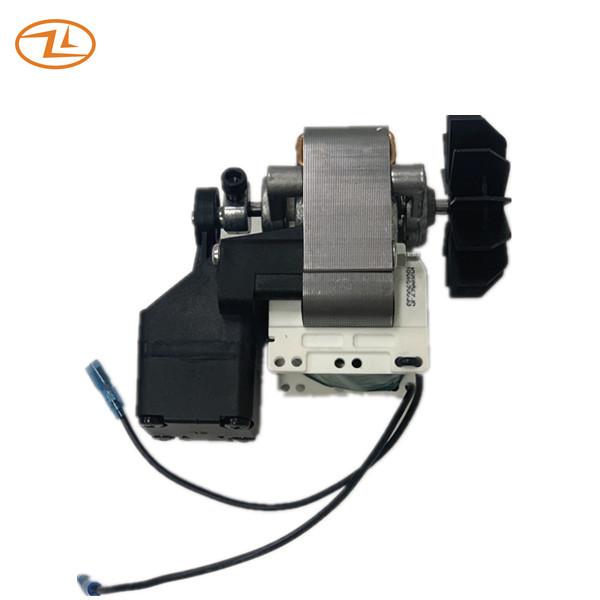

Compressor Motor Pump Motor For Suction Machine Flexible Nozzle Direction

This kind of pump motor is composed by shaded pole motor with piston pump. Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.

Specification:

Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.55A max
Rated input power W 58W max
Starting voltage V 198V max
Rated speed RPM 2500RPM min
Working air pressure PSI 12PSI min
Working flow rate L/M 5L/M min
Max pressure PSI 30PSI min
Max flow rate L/M 14 L/M min

Drawing:

2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine

Application: Compressor Nebulizer, Suction machine

2500 RPM Electric Compressor Pump Motor 12PSI 0.55A For Suction Machine
