Detailed Introduction and Driver Matching Solution for 57CM23-4A Open-loop Stepper Motor

I. Core Parameters and Performance Analysis

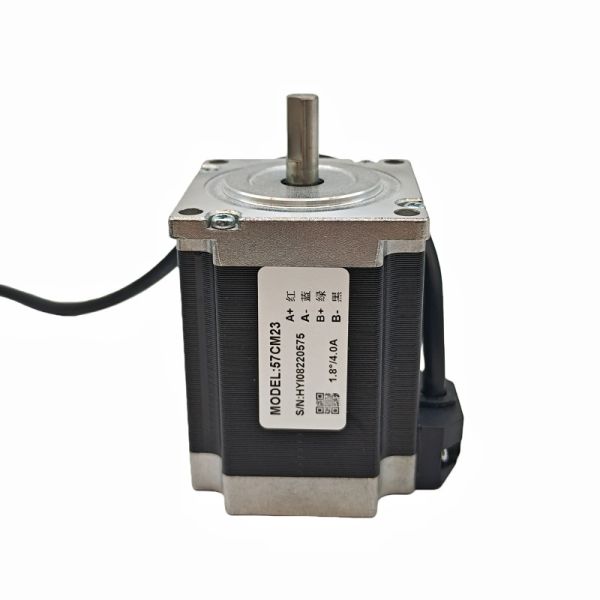

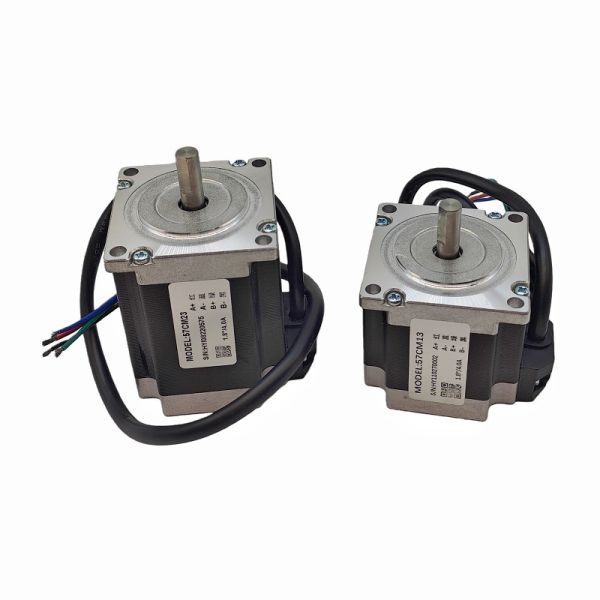

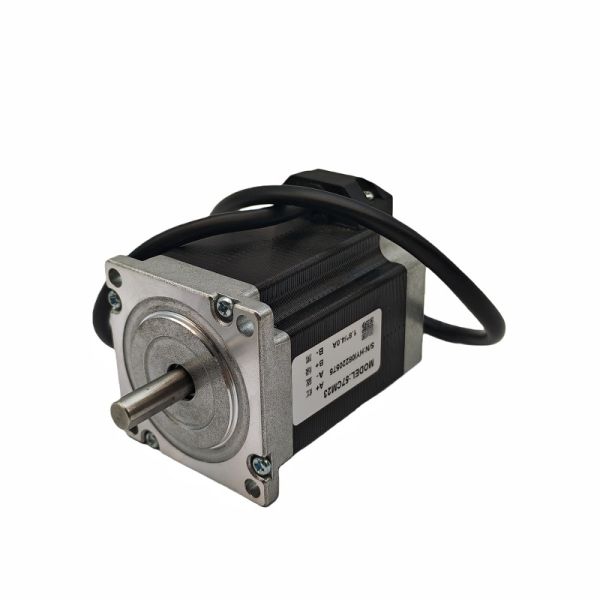

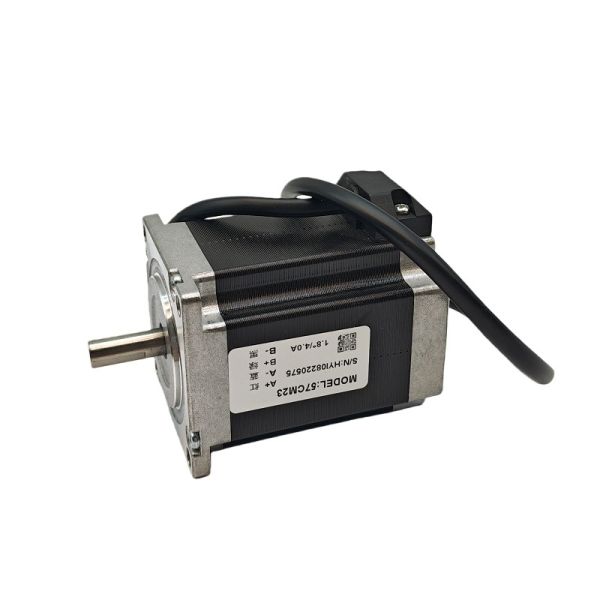

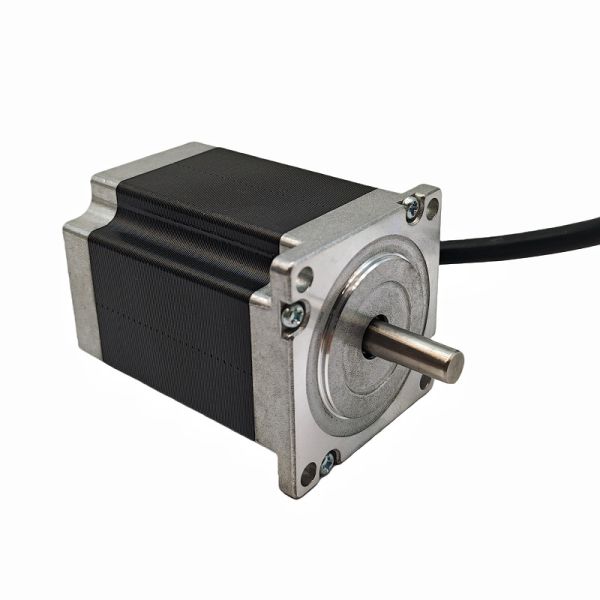

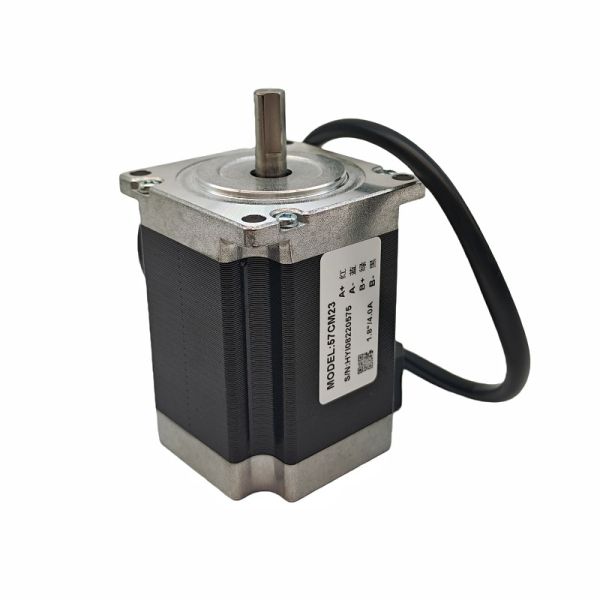

The 57CM23-4A is a NEMA 23 (57mm frame size) two-phase hybrid open-loop stepper motor, specially designed for industrial automation scenarios requiring medium-low load and high-precision positioning. Its core parameters and performance highlights are as follows:

1. Basic Electrical Parameters

- Step angle: 1.8° (full-step mode). With driver microstepping, it can achieve micro-step control at the 0.007° level to meet precision positioning requirements.

- Holding torque: 2.3N·m. It features strong static locking force and can maintain load positioning even when power is off, suitable for working conditions such as the Z-axis of engraving machines and the feed axis of small CNC machine tools.

- Rated current: 4.0A per phase, phase resistance 0.5Ω, phase inductance 2.0mH. The low-inductance design improves the high-frequency response speed of the motor and reduces the risk of step loss at high speeds.

- Recommended supply voltage: 24-48VDC (36VDC is optimal). High-voltage input can enhance the torque output of the motor at high speeds and avoid low-speed resonance and high-speed step loss.

2. Structural and Process Features

- Rotor design: Adopting high-performance permanent magnet + silicon steel sheet laminated rotor, it has low torque ripple (≤5%) and better operation stability than ordinary motors of the same specification.

- Housing material: Aluminum alloy heat-dissipating housing with surface oxidation treatment, which improves heat dissipation efficiency by 20%. The temperature rise is ≤60K during long-term full-load operation, preventing motor demagnetization due to overheating.

- Shaft configuration: Standard 6mm keyway output shaft (custom threaded shaft and double-ended shaft are optional), with IP54 protection rating, suitable for industrial environments with dust and humidity.

- Mounting dimensions: Compliant with NEMA 23 standard flange (56×56mm mounting hole spacing), compatible with mainstream equipment mounting brackets without additional machine modification.

3. Typical Application Scenarios

- CNC equipment: Feed axis and lifting axis of small engraving machines, laser cutting machines, and 3D printers.

- Automated production lines: Small manipulators, belt conveyor positioning modules, and electronic component mounters.

- Special equipment: Laboratory precision platforms, medical device sampling mechanisms, and textile machinery feeding devices.

II. Driver Matching Solutions (Scenario-specific Deep Adaptation)

The core principles of driver selection: rated output current ≥4.0A, support for microstepping adjustment, and voltage range matching the motor's power supply requirements. The following are the optimal matching schemes for different application scenarios:

1. General Industrial Scenarios (Cost-effective & Easy to Debug)

- Recommended model: DM556(V3.0) Digital Stepper Driver

- Adaptation Advantages

- Continuously adjustable output current ranging from 1.0A to 5.6A, perfectly matching the 4.0A rated current of the 57CM23-4A.

- Microstepping range of 200-25600 steps per revolution, supporting quick setting via DIP switches. It operates without vibration and low noise under 1600 microstepping mode.

- Built-in adaptive current decay algorithm, which automatically adjusts current based on motor speed, reducing heat generation by 30% and extending the service life of the motor and driver.

- Compatible with 5V/24V pulse-direction signals, supporting single-ended/differential input, and can be directly connected to PLCs, motion controllers, and single-chip microcomputers.

- Debugging Tips: Set the current to 4.0A, microstepping to 1600, and decay mode to "slow decay" via DIP switches, suitable for most medium and low-speed positioning scenarios.

2. High-speed & High-dynamic Scenarios (Fast Start-stop & High-frequency Response)

- Recommended model: M545D High-voltage Digital Stepper Driver

- Adaptation Advantages

- Power supply voltage range of 24-50VDC. High-voltage input enhances the motor's torque output at high speeds, maintaining more than 60% of the rated torque at 3000rpm and avoiding high-speed step loss.

- Built-in high-frequency response control algorithm, with a pulse response frequency up to 500KHz, supporting fast start-stop and emergency stop, suitable for dynamic working conditions such as high-speed sorters and mounters.

- Equipped with four-fold protection against overcurrent, overvoltage, undervoltage, and overheating, automatically cutting off output in fault conditions to protect the motor and driver.

- Debugging Tips: Select 48VDC for power supply, set the current to 4.0A, microstepping to 800, and enable the "dynamic torque compensation" function to optimize high-speed performance.

3. Economical Light-load Scenarios (Small Equipment & Low Budget)

- Recommended model: OL57-RX Economical Open-loop Stepper Driver

- Adaptation Advantages

- Output current ranging from 2.0A to 4.5A, meeting the rated current requirements of the 57CM23-4A, specially designed for light-load scenarios (load torque ≤1.5N·m).

- Support RS485 communication (Modbus RTU protocol), enabling batch configuration of multi-axis parameters via the host computer, suitable for multi-motor linkage in small production lines.

- Compact size (100×60×30mm) with rail mounting, saving control cabinet space and offering higher cost performance than basic drivers of the same type.

- Debugging Tips: Set the current to 4.0A, microstepping to 400, suitable for low-dynamic demand scenarios such as light-load conveying and small instrument positioning.
