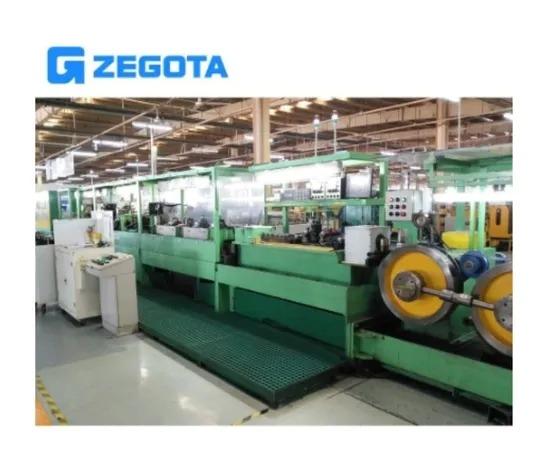

Easy Adjustment High Efficiency 4 High Wire Rolling Mill

Specifications

Model NO. :

4HW15

Roller Position :

Vertical

Roller Number :

Four-High

Layout :

Tandem

Type :

Cold Rolling Mill

Factory :

Zhejiang

Worker :

200

Automation :

Automatic

Transport Package :

in Foil

Specification :

Customized

Trademark :

Zegota

Origin :

China

Production Capacity :

5000/Year

MOQ :

Description

4 high wire rolling mill is a rolling equipment which processes copper, aluminum, stainless steel, carbon steel, alloy and other materials into flat, square, semi-circular and triangular wires by cold rolling. The design team of Zegota technology Co., Ltd. is based on 30 years of R&D and design experience, and has complete independent intellectual property rights. The product matches the international first-line brand and its performance is at the advanced level of the industry. With flat roll, vertical roll, symmetrical four-roll, universal roll and other rolling heads, we can design multi-pass rolling mill production line according to customer's product requirements. It can not only greatly improve the production efficiency of the industry, but also improve the quality of products. It is the best choice for rolling mills to gradually replace the cold drawing and drawing process equipment.






	Item	Parameter
compostion	Raw material diameter	Φ0.1~Φ20mm
	Raw material	Cooper, Stainless steel, Carbon steel, Steel alloy etc.
	Rolled wire size	Max. width-thickness ratio: 30
	Final precision	≤0.005mm
	Working speed	10~600m/min
	Payoff	Per raw material wire.
	Tension	Pneumatic adjustable, servo torque control.
	Roller	Per rolling method.
	Inline detection	Real-time Width and Thickness Detection.
	Cooling system	Cooling medium constant temperature control, precision filtration.
	Lubrication system	Centralized lubrication and constant temperature control.
	Straightener	Vertical straightening and Horizontal Straightening.
	Degreasing system	Air knife oil removal/scraping oil removal.
	Take up	Precision take-up, layout accuracy 0.2m, I-wheel can be customized.

4-Hi Mill Stand Configuration:
Superior Flatness Control: The six-roll stack (1 Work Roll + 2 Intermediate Rolls + 3 Backup Rolls per side) significantly minimizes work roll deflection, ensuring exceptional strip flatness across the entire width, especially for harder materials or wider strips.
Intermediate Roll Flexibility: Intermediate rolls can often be axially shifted (AS-U, AS-U/I) to actively control the pressure distribution across the strip width, further optimizing profile and flatness.
Reduced Work Roll Diameter: Smaller work rolls enable higher reductions per pass and finer surface finishes.
Reversible Operation:
Single-Stand Efficiency: The strip passes back and forth through the same mill stand multiple times, achieving the desired final thickness incrementally. This eliminates the need for multiple stands.
Process Flexibility: Enables flexible scheduling for various alloys, widths, and target thicknesses without complex threading. Ideal for smaller batch sizes.
cessing: Typically processes single coils at a time, with recoilers on both sides of the mill stand.
