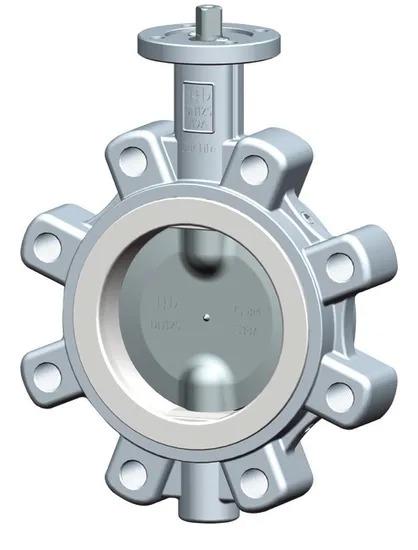

A75 Flanged Double Offset Butterfly Valves

Specifications

Model NO. :

A74

Connection Form :

Depend on Products

Driving Mode :

Depend on Products

Nominal Pressure :

Depend on Products

Channel :

Depend on Products

Structure :

Depend on Products

Type :

Depend on Products

Function :

Blow-Down Valve

Temperature :

-40/+287

Standard :

En1092 Pn10/16,Pn25,Pn40 ASME B16.5 Class150,Clas

Body :

Wcb, CF8,CF8m

Disc :

Wcb,CF8,CF8m

Seat :

PTFE,Rptfe,P287,

Shaft :

17-4 Phss

Connection :

Double Flange

Size :

DN50-DN1600

Pressure :

Full Vacuum-50bar

Face to Face :

ISO5752, ASME B16.10, API 609,Double Flange Short

Top Flange :

ISO 5211

Transport Package :

Wooden Box

Specification :

Depend on products

Trademark :

Zegota

Origin :

China

Production Capacity :

10000 PCS/Month

MOQ :

Description

A75 Flanged Double Offset Butterfly Valves is a high-performance, compact industrial fluid control solution engineered for demanding industrial applications. Featuring a precision-engineered concentric design where the valve stem aligns perfectly with the disc centerline, this valve ensures smooth operation and reliable sealing in low-to-medium pressure systems.
