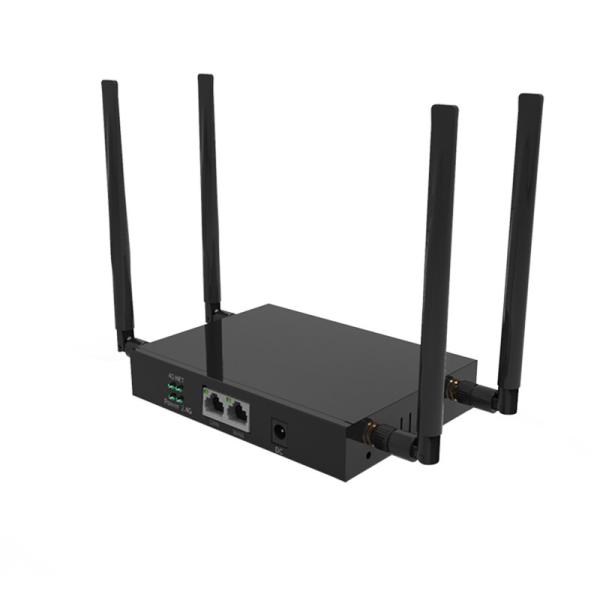

RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
RS282 300Mbps 4G Industrial Wifi Router MT7628N 1WAN 2LAN Ports
Specifications
Brand Name :
OEM
Model Number :
WD523
Place of Origin :
China
MOQ :
2
Price :
negotiate with sales manager
Payment Terms :
Western Union, T/T
Supply Ability :
10000/pcs
Delivery Time :
5-7days
Packaging Details :
1unit be packed in a box
Chipset :
MT7628N
Ports :
1WAN+2LAN ports
Housing :
Metal case
Serial Port :
RS282 and RS485
Wifi Rate :
2.4Ghz 300Mbps
4G Function :
support SIM card
Description

Production Description:

WD523 is an industrial DTU with 4G function, used for data transmission services of industry users, supports transparent data transmission, access to the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then share the Internet network through wireless WiFi 4 and 100Mbps wired LAN.

Network ports
1 WAN port, 100Mbps support auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u
1 LAN port, 100Mbps supports auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u
SIM card slot
SIM card interface 1 standard SIM card (large card) interface, support SIM/USIM
Power port
DC5.0*2.1MM
Button
1* reset button


Antenna
2 external 2.4G antennas
2 external 4G mobile communication antennas, compatible with 3G/2G mobile data communication
Connector
6 PIN connector, this connector is RS232 and RS485 communication interface
Processor
MT7628DA MIPS24KEc architecture CPU, the main frequency is up to 580MHZ
2.4G WIFI Chip
MT7628DA integrates 2.4G WIFI function
IEEE 802.11n/g/b, maximum rate 300Mbps
RAM
DDR2 64MB, Does not support custom memory size


Flash
Nor Flash 16MB
Not support NAND Flash

Company introduce:

ZBT is a professional manufacturer for network devices, with around 500 staffs, including 50-person R & D team, 10,000 Square meters production area.

Main products include openWRT Wi-Fi router, 4G/5G router, Vehicle router, AP, Outdoor router, Mifi, LTE CPE, etc. All of our products are designed, developed and produced by themselves, with appearance patent and software patent. Support OEM/ODM service.

ZBT has professional QC team to check every procedure strictly, includeing raw materials, SMT, DIP, Testing, and Assembly. All of products are 100% checked before shipping.

ZBT built a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering stable quality products, and fast after-sale service. Main customers includes China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in USA, Smart in Philippine, Vodafone in France etc.

ZBT strictly follow ISO9001, CCC, CE and FCC standard, make sure all of our products can meet client’s different requirements in different countries.
