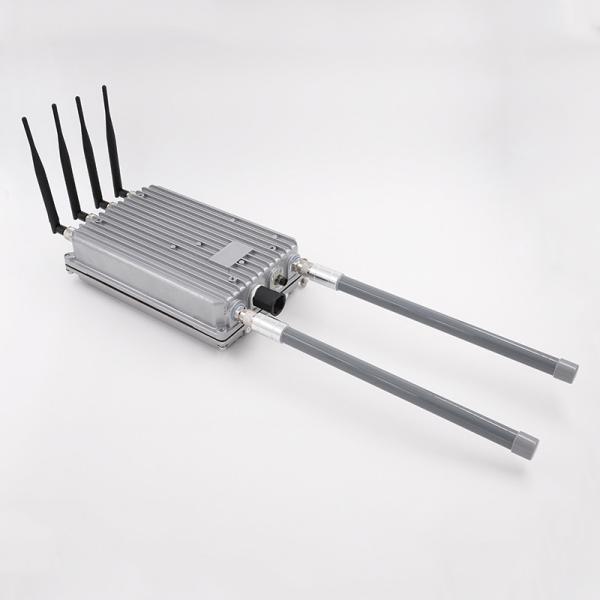

16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET
16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET
16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET
16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET
Specifications
Brand Name :
ZBT
Model Number :
WD323-H
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
7000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Neutral Packing: 1pcs Factory Zbt Price Lte Modem Industrial Wifi Router Dual Module 1 packing box; 20pcs Factory Zbt Price Lte Modem Industrial Wifi Router Dual Module 1 carton
Product name :
300mbps Industrial Lte 4g Router Industrial Wifi Router 2pcs4G PCIE Slot
Main Chipset :
Qualcomm AR9344
Ram :
128M
Flash :
16M
Wired Transfer Rate: :
300mbps
Function :
Firewall, QoS, VPN
Type: :
Wireless, Wireless
Standards And Protocols: :
Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Description

300mbps Industrial Lte 4g Router Industrial Wifi Router 2pcs4G PCIE Slot

Product Feature:

1. Fit for IEEE802.11n,802.11g,802.11b,802.3,802.3u

2. Wireless RF Power :2.4G: 802.11b 25dBm±1dBm,802.11g 23dBm±1dBm,802.11n 21dBm±1dBm

3. Receive Sensitivity :802.11b: -75dBm@10% PER,802.11g: -73dBm@10% PER,

4. 802.11n: -68dBm@10% PER

4. 3 Port 10/100 Mbps , Auto Ajust to Fix Internet ,Auto Swift (Auto MDI/MDIX)

5. Supprt RESET Function

Hardware Specs:

WD323 | Hardware Specs
Hardware Specs

Qualcomm AR9344 Main Chipset

Memory:128M；

Flash:16M；

PA: SKY85309 * 2
Antenna 2 pcs 2.4GHz 5dbi WIFI Antenna ,4pcs LTE Antenna
RF

Max Transmit Power :25dBm 2T2R

Max Receiver Sensitivity:-90dBm

Working Frequency:2.412GHz-2.4835GHz
Modulation Mode

DSSS : DBPSK@1Mbps,DQPSK@2Mbps,CCK@5.5/11Mbps

OFDM : BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-

QAM@48/54Mbps

MIMO-OFDM : MCS 0-15
Speed

11b:1,2,5.5,11Mbps

11g:6,9,12,18,24,36,48,54Mbps

11n:MCS0-MCS15(20MHz与40MHz Analog Bandwidth)

20MHz:144.4Mbps

40MHz:300Mbps

 Port Details

2pcs10/100Mbps LAN RJ45 Port；

1pcs10/100Mbps WAN RJ45 Port；

2pcs4G PCIE Slot

2pcsSIM Slot

1pcsRS485

1pcsRS232

4 Channel IO Output ,With Latch Function

1pcsRESET butoon ；

1pcsRTC Clock

1pcsTemperature Sensor

1pcsUSB2.0

1pcs2.0 DC Port

1pcs2PIN 5.0MM Industrial Power Terminal

1pcs SCM Control 4G Module Power Supply .
Indicator PWR,WIFI,4G_1,4G_2,WAN,LAN1,LAN2
Power DC 5V~36V (Recommend 12V 2A)
Max Power <15W
Working Surrounding

Working Temp:-20℃~70℃

Storage Temp:-40℃～70℃

Working Humidity:10%～90%RH Not Freeze

Storage Humidity:5%～90%RH Not Freeze

16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET

16M Flash 300mbps Industrial 4g Modem Router 2pcs4G PCIE Slot Supprt RESET
