Specifications
Brand Name :
OEM
Model Number :
ZBT-WE3926
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000 units per month
Packaging Details :
Neutral Packing: 1 unit per packing box; 20 units per carton
keywords :
4g Lte Module 3G 4G Wifi Router Indoor For Home / Office Using
CPU :
MT7620A (580MHz)
Protocol :
IEEE 802.11b/g/n
Connector :
1WAN+4LAN+1Sim Card Slot+1USB
Adapter :
12V 1A
Wireless Rate :
300Mbps
Description

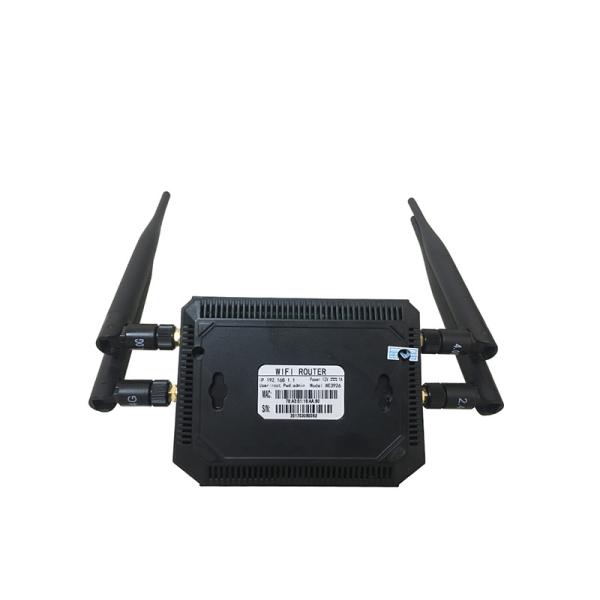

4g Lte Module 3G 4G Wifi Router Indoor For Home / Office Using

ZBT-WE3926 adopt MTK7620A chipset, support 3/4G with sim card slot, provide 1 USB2.0 interface, 1 Micro slot. Simply insert a 4G/LTE SIM card and the built-in modem connects to the internet. Thanks to wide range and speed of 300 Mbps via WiFi, you can enjoy 4G/LTE internet access throughout your home or office.

Main Features:

150 Mbps 4G/LTE mobile broadband

With the 4g wireless broadband router, you can enjoy download speeds of up to 150 Mbps and allow you to share your network on multiple WiFi devices.

Up to 300 Mbps

WE3926 is 300 Mbps WiFi connections - it allows you to stream movies and transfers files at super fast speed. The external antennas also ensure that you get stable wireless connection and coverage.

Easy to Setup and use

Our WE3926 WiFi router is easy to use. With an integrated 4G LTE modem and built-in SIM card slot, the connection to the wireless network is easy. Simply plug in a SIM card and turn on the router and you have a fast, stable and reliable WiFi network. Sometimes, you need to enter the router (IP address: 192.168.1.1) to set APN. You can find the APN of the SIM card from the carrier's official website or mobile phone.

Specification:

Hardware
Main Chipset MT7620A (580MHz)
RAM DDR2 128MB (MAX DDR2 256MB)
SPI FLASH 16MB (MAX 32MB)
Protocol IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11a
IEEE 802.3,IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165

Wireless Rate Max 1200Mbps(depends on the 11AC mode)
Work Frequency 2.4GHz
Antenna 4* removable Omni Directional 5dBi antenna
Interface

1* PCI-E slot

1 *SIM card slot

1 *USB 2.0 port

1 *Micro SD card slot

1 *10/100M WAN port(Auto MDI/MDIX)
4 *10/100M LAN port(Auto MDI/MDIX)

LED Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset Button
Max Power consumption < 12W
Dimension(L*W*H) 141*85*26MM
Software
WAN Type PPPoE,Dynamic IP, Static IP
Work Mode

AP;

Router;

DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding

DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter 12V 1A

4g Lte Module 3G 4G Wifi Router Indoor For Home / Office Using

FAQ:

1. Do you support logo printing?
Re: Yes, we are manufacturer. We support make OEM and ODM. But our MOQ is 1000 units.

2. Do you accept Sample Order?
Re: Yes, of course. Weclome to buy samples to make a test at the first time.

3. Do you provide firmware support?
Re: Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you.

Company Profile:

SHENZHEN ZHIBOTONG (ZBT) Electronics Co., LTD established in 2010, located at Shenzhen, China. ZBT is a manufacturer professional in R&D and producing network equipments, products are included POE switch, Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G wifi router, mobile router, Gpon products. ZBT also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc.ZBT with 30 people R&D team and around 500 people in factory, 10,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, ZBT's products have exported to over 30 countries and regions.Adhere to the conception of 'High Quality, High Performance & High Satisfaction' , Each year ZBT would taken out more than 35% of the annual turnover as R&D funds to develop new products so as to satisfy clients' new coming requests.Customers' high satisfaction is ZTB's continuously pursue,high-quality&best service is ZBT's sincere promise to all clients. ZBT warmly welcome everybody joining in and build a win-win cooperation.
