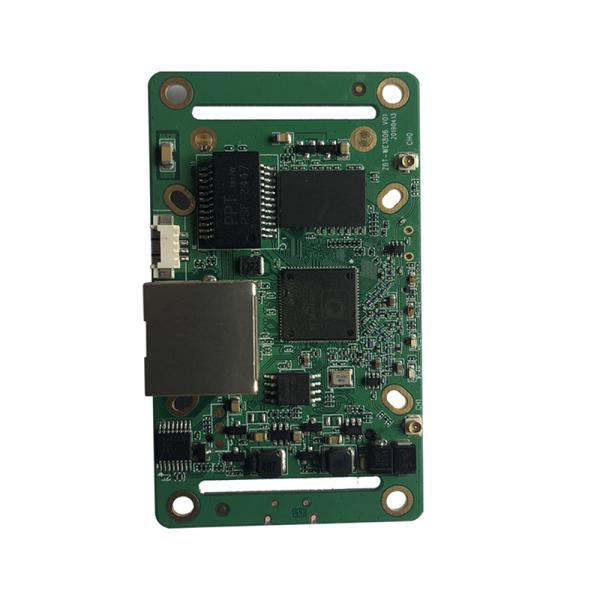

4G Image Tranfer Module 3G 4G Wifi Router / 2.4G 300mbps Wireless Router
4G Image Tranfer Module 3G 4G Wifi Router / 2.4G 300mbps Wireless Router
4G Image Tranfer Module 3G 4G Wifi Router / 2.4G 300mbps Wireless Router
4G Image Tranfer Module 3G 4G Wifi Router / 2.4G 300mbps Wireless Router
Specifications
Brand Name :
ZBT
Model Number :
ZBT-WE2802D
Certification :
FCC/CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
50units/carton
Main chipset :
MT7628DAN
FLASH :
SPI 16MB
Protocal standard :
Wire standard: IEEE802.3,IEEE802.3u Wireless standard: IEEE 802.11b/g/n
Rate :
Max 300Mbps
Work frequency :
2.4GHz
RFoutput :
11b: 19±2dBm 11g: 18±2dBm 11n: 16±2dBm
Description

Specification:

Hardware
Main chipset MT7628DAN
FLASH SPI 16MB
Protocal standard

Wire standard: IEEE802.3,IEEE802.3u

Wireless standard: IEEE 802.11b/g/n
Rate Max 300Mbps
Work frequency 2.4GHz
RFoutput

11b: 19±2dBm

11g: 18±2dBm

11n: 16±2dBm
Receive sensitivity

11b: ≤-86dBm

11g: ≤-74dBm

11n: ≤-68dBm

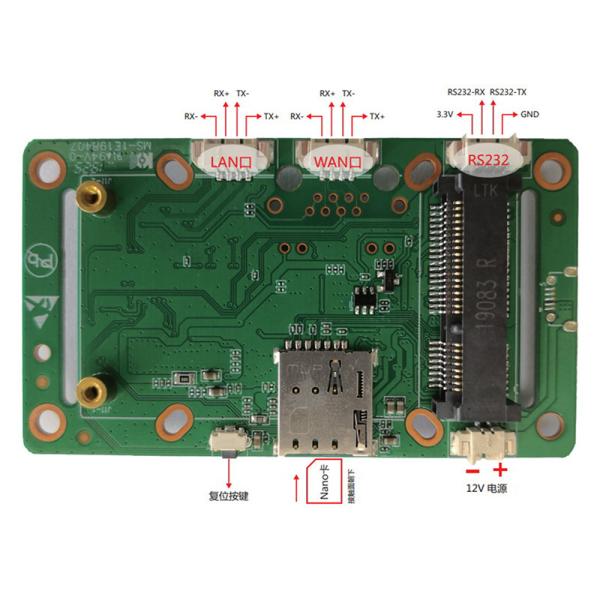

Ports 1*10/100M WAN port, supports Auto MDI/MDIX
1* 10/100M LAN port, supports Auto MDI/MDIX
LED 1*system, 1*WiFi light, 2*4G signal indication
Button 1*Reset
Power adapter DC 12V/1A
Work environment

Work temperature: 0℃ to 40℃;
Store temperature: -40℃ to 70℃;

Work humidity: 10% to 90%RH non-condensing
Sotre humidity:5% to 90%RH non-condensing
