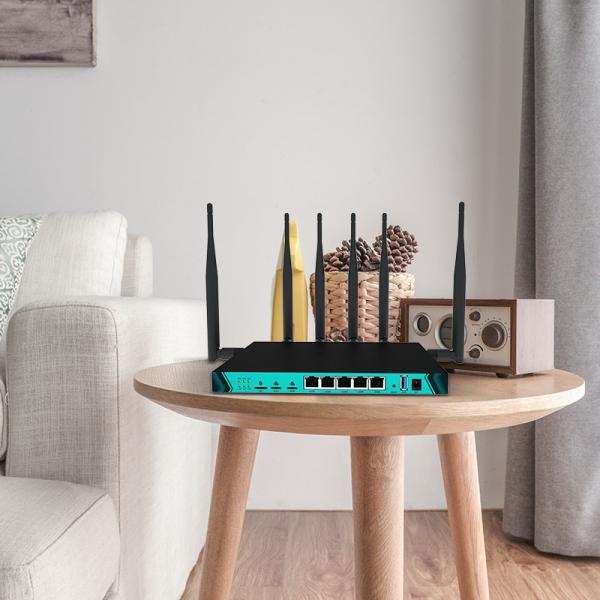

MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
MTK7621A 1000Mbps 4g Mobile Wireless Router USIM For SOHO
Specifications
Brand Name :
ZBT
Model Number :
WG1602
Certification :
CE FCC Rohs
Place of Origin :
Shenzhen,China
MOQ :
200Ppcs
Price :
$45.76-127.94/piecs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 pieces per week
Delivery Time :
45 days
Packaging Details :
1*High Speed 4g Mobile Wireless Router Wholesaels Dual Sim Card 3G 4G Wifi Router For SOHO in a gift box
Products Name :
High Speed 4g Mobile Wireless Router Wholesaels Dual Sim Card 3G 4G Wifi Router For SOHO
Type :
Dual Band Dual Sim Card
Chipest :
MTK7621A
Flash/Ram :
16M +256M
WAN/LAN Port :
10/100/1000Mbps
Max. lan data rate :
1000Mbps
Interface :
1WAN+4LAN+USB+SD
Antenna :
2 or 6 antennas
Color :
Black
Sim card slot :
2*sim cars slot*2pcs PCIE slot
Description

High Speed 4g Mobile Wireless Router Wholesaels Dual Sim Card 3G 4G Wifi Router For SOHO

ZBT-WG1602 Specification(REV.1).pdf



What is 4G router?

Compared to a WiFi-only router, which only supports wireless standards, a 4G WiFi router supports mobile technology via a 4G wireless module.

Once you plug in a micro SIM card with a data plan, the router can communicate with the carrier’s surrounding cell towers to access the internet and generate a reliable WiFi signal. You can easily share this internet access with family and friends.

About Dual sim card router
Compard with the 4G router, Dual sim card 4G router with two 4G modules.Our #WG1602 is a 4G router with two 4G modules. It can access the Internet through 4G sim cards or 1000Mbps WAN port. Support load-balance and network backup..Dual sim card router are Awasom

Reference standards

lUSB2.0 bus standard

lTF Card interface standard

lSIM/USIM interface standard

lPCI- Express bus standard

lIEEE802.11n/g/b/a/ac

lIEEE802.3/802.3u/802.ab

lMini PCI Express Card Electro mechanical Specification Revision 1.0-2003

l4G mobile communication standard

Main features

  • Adopt MT7621A solution, MIPS dual-core CPU, the main frequency is up to 880MHZ
  • Use independent WIFI chip, 2.4G is MT7603EN, 5.8G is MT7612EN
  • 2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, dual frequency rate is about 1200Mbps
  • Using high-speed 256MB DDR3 and 16MB Nor Flash
  • 1 WAN+4 LAN (1000M adaptive network ports, support Auto MDI/MDIX)
  • Support USB2.0 and TF card slots to expand SMABA or FTP network storage function
  • Support "One-click mode"(press the reset button to enter the rescue and flash mode)
  • Built-in two 4G PCIe module interfaces
  • Two external Nano SIM card (small card) interfaces, both support SIM/USIM card

Specification

Ethernet interface

1* Wan port, 1000Mbps, Support Auto MDI/MDIX
Protocol: IEEE 802.3/802.3u/802.ab
4* Lan ports, 1000Mbps, Support Auto MDI/MDIX
Protocol: IEEE 802.3/802.3u/802.ab

USB interface

1* USB2.0 slot (Note: USB slot can't work with the second 4G module at the same time)

TF Card interface

1* Standard TF card interface

SIM Card Slot

2*Nano SIM Card, Support SIM/USIM

Power interface

DC5.0*2.1MM port

Button

1*reset button

Antennas

2*omnidirectional 5dbi 2.4G & 5.8G dual-band antennas
4*omnidirectional 5dbi 4G antennas, compatible with 3G/2G

PCIe interface

Built-in 2*4G PCIe module interfaces

Processor

MT7621A MIPS dual-core CPU, 880MHZ main frequency

2.4G WIFI Chipset

MT7603EN IEEE 802.11n/g/b, Maximum speed 300Mbps

5.8G WIFI Chip

MT7612EN IEEE 802.11ac/a, Maximum rate 867Mbps

Ram

DDR3 256MB

Flash

Nor Flash 16MB
