Specifications
Brand Name :
OYMotion
Model Number :
ZDH-6D-169-N
Place of Origin :
China
MOQ :
1
Price :
To be negotiated
Payment Terms :
Paypal，T/T
Supply Ability :
100 set per month
Delivery Time :
30 work days
Description

Key Attributes

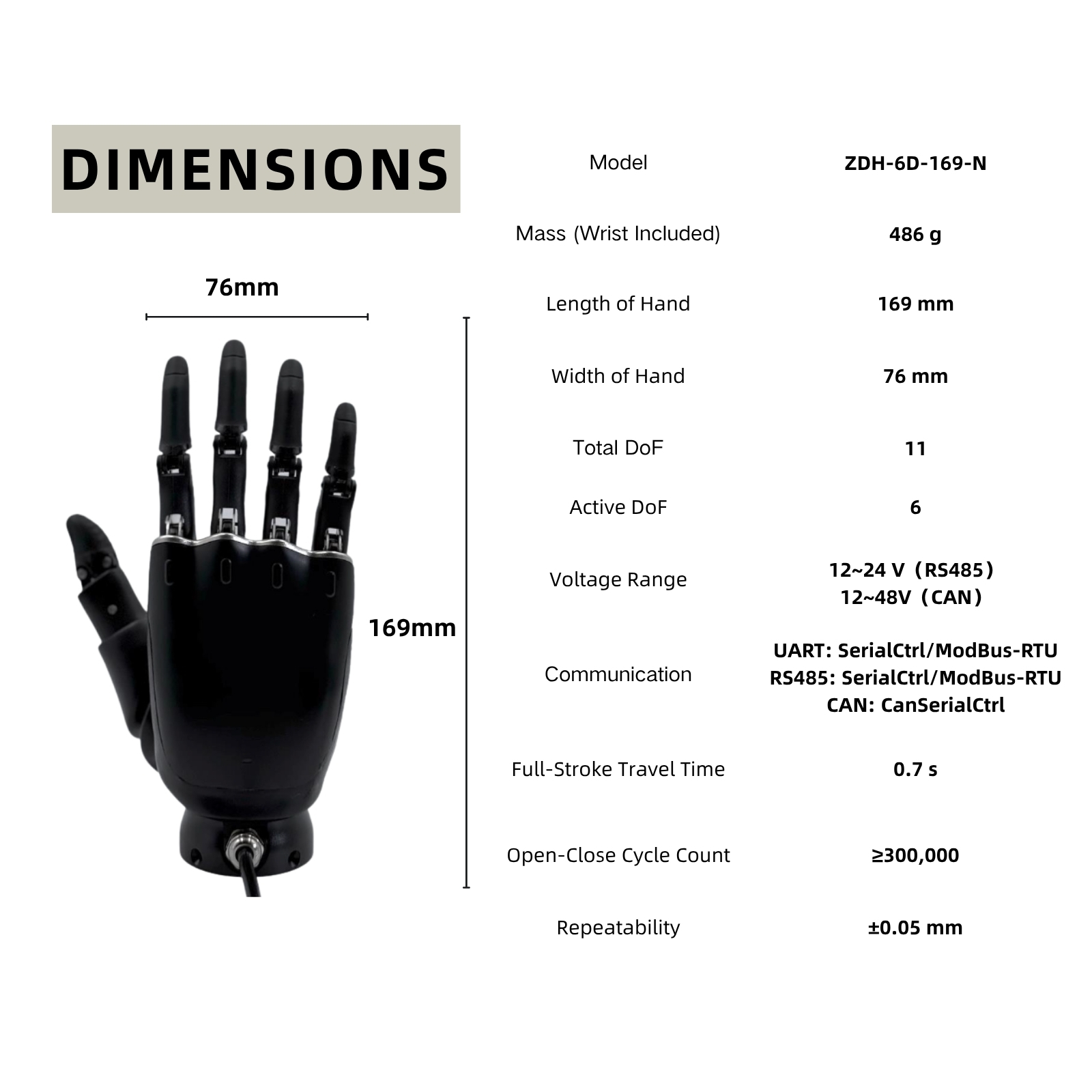

Mass(Wrist Included) 486 g
Length of Hand 169 mm
Width of Hand 76 mm
Total DoF 11
Active DoF 6
Voltage Range 12~24 V(RS485)
12~48V(CAN)
Static Current 0.12A @24V
Average Current During Idle Motion 0.25A @24V
Maximum Current for Maximum Grip 1.9A @24V
Communication Protocal UART: SerialCtrl/ModBus-RTU
RS485: SerialCtrl/ModBus-RTU
CAN: CanSerialCtrl
Baud Rate UART: 9600/19200/38400/57600/115200/230400/460800/921600
RS485:
9600/19200/38400/57600/115200/230400/460800
CAN: 1M
Full-Stroke Travel Time 0.7 s
Open-Close Cycle Count ≥300,000
Repeatability ±0.05 mm
Max. Active Thrust(Straight) index finger: ≥4.41 N
middle finger: ≥4.41N
ring finger: ≥4.41N
little finge: ≥4.41N
Max. Active Thrust(Bent) thumb: ≥9.8 N
index finger,: ≥9.8 N
middle finger: ≥9.8 N
ring finger:≥9.8 N
little finge: ≥9.8 N
Max Payload(Straight) 5 kg (single finger)
Max Payload(Bent) 8 Kg (single finger)
25 Kg (palm facing up)
Material Aluminum alloy, zinc alloy, stainless steel, silicone, plastic
Max opening and closing angle of the thumb side 0~31°
Max opening and closing angle of thumb to palm 0~50°
Thumb lateral rotation angle 0~90°
Finger touch screen Supported
Operating Temperature(℃) -10~40
Operating Humidity ≤85%
