380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
380V 50Hz Vial Leak Testing Machine Full Servo High Voltage Power
Specifications
Brand Name :
Z-Zone
Model Number :
AJLL
Certification :
GMP ISO
Place of Origin :
China
MOQ :
1
Price :
100,000-20,0000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
60days
Packaging Details :
Wooden packing
Application :
1-20ml
Output :
400bottles/min（adjustable）
Power :
10kV~35 kV
Weight :
about 1000kg
Warranty :
1 Year
Color :
Grey
Dimension :
3694mm×1180mm×1364mm(L×W×H)
Provider :
Z-Zone
Model :
AJLL800
Capacity :
300bottles/min @2ml ampoule/vial
Description

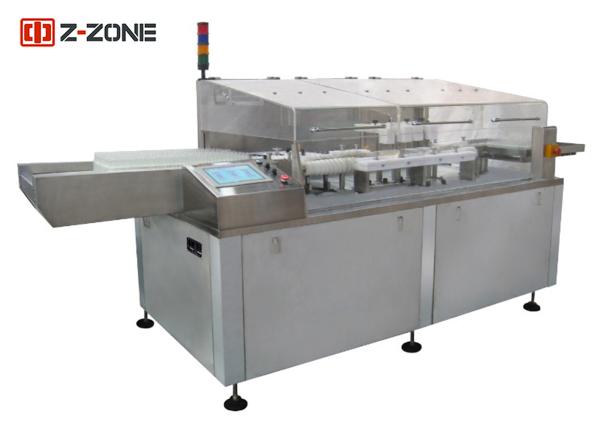

Z-Zone Full- Servo Vial Leakage Test Machine

Application
The machine is dedicated to inspect vial and oral liquid products for possible liquid leakage. It can inspect pinhole and cracks on those bottles.

Parameters

Application 1-20ml
Capacity 300-400 bottles/min
Power 2.4kW,380V 50Hz
Weight about 1000kg
Dimension 3694mm×1180mm×1364mm(L×W×H)
Output power range 10kV~35 kV
Output frequency range 500Hz~50kHz
Warranty 2Years

Working principle

V is a high -frequency and high voltage detection power supply, and the ends of the launch and receiving pole are connected to both ends. The C1 and C2 are the capacitance value between the electrode and the capacitor (due to the partition of the bottle wall, the electrode cannot be contacted with the medicinal solution, so the capacitance is generated) , R is the resistance value of the medicinal solution. When the ampoule bottle is not leaked, the inductive micro-circular I1 is generated. When the bottle is leaked, the capacitance between the insulation bottle and the electrode disappear. The circuit generates a larger current I2. As long as compare the micro current, you can determine whether the bottle is leaked.
