Servo Vial Leak Testing Machine High Frequency 1 Year Warranty
Servo Vial Leak Testing Machine High Frequency 1 Year Warranty
Specifications
Brand Name :
Z-Zone
Model Number :
AJLL
Certification :
GMP ISO
Place of Origin :
China
MOQ :
1
Price :
100,000-20,0000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
60days
Packaging Details :
Wooden packing
Application :
1-20ml
Output :
400bottles/min（adjustable）
Warranty :
1 Year
Color :
Grey
Dimension :
3694mm×1180mm×1364mm(L×W×H)
Provider :
Z-Zone
Capacity :
300bottles/min @2ml ampoule/vial
Description

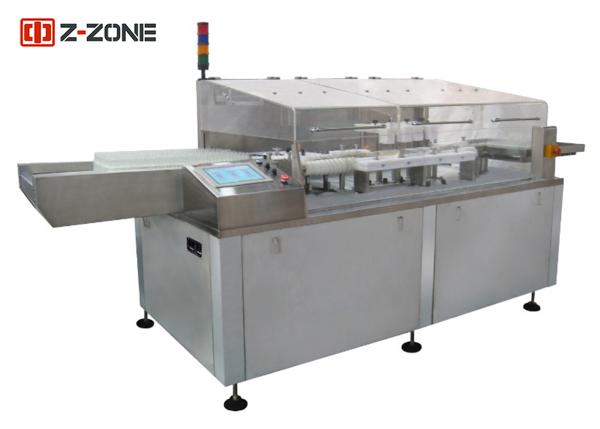

Z-Zone Servo Vial Leakage Test Machine

Application

The apparatus is designed specifically for the examination of vials and oral liquid commodities with regards to any probable liquid seepage. It is capable of detecting pinhole and fissures on said containers.

Parameters

Application 1-20ml
Capacity 300-400 bottles/min
Power 2.4kW,380V50Hz
Weight about 1000kg
Dimension 3694mm×1180mm×1364mm(L×W×H)
Output power range 10kV~35 kV
Output frequency range 500Hz~50kHz
Warranty 2Years

Working principle

V is a power supply designed for high-frequency and high-voltage detection. It operates by connecting the launch and receiving pole to both ends, with C1 and C2 representing the capacitance value between the electrode and the capacitor. As the bottle wall partitions prohibit direct contact between the electrode and medicinal solution, capacitance is generated instead. The resistance value of the medicinal solution is represented as R. In the event that the ampoule bottle is not leaked, an inductive micro-circular I1 is generated. However, when the bottle leaks, the capacitance between the insulation bottle and the electrode is eliminated, resulting in a larger current I2 being generated within the circuit. With a simple comparison of the micro current levels, it becomes possible to determine whether the bottle has been leaked.

Servo Vial Leak Testing Machine High Frequency 1 Year Warranty

Servo Vial Leak Testing Machine High Frequency 1 Year WarrantyServo Vial Leak Testing Machine High Frequency 1 Year Warranty

Servo Vial Leak Testing Machine High Frequency 1 Year Warranty
