12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
Specifications
Brand Name :
YZY
Model Number :
YVO1230VML-L1
Certification :
CE，RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
$1.99-199.99 Piece
Payment Terms :
T/T
Supply Ability :
Up to 1,000 pcs/day
Description
12.3 Inch Bar TFT LCD Module 1920x720 LVDS 50 Pin 700 Nits Wide Temperature Display
Product Overview

This 12.3 inch bar type TFT LCD module features 1920x720 resolution, LVDS interface and normally black display mode. It supports 16.7M colors, 700 cd/m² typical brightness, 72% NTSC color gamut, 1100:1 typical contrast ratio and 88/88/88/88 typical viewing angle performance. With HC surface treatment, wide operating temperature range and long bar display structure, it is suitable for vehicle-mounted displays, industrial control panels, dashboard screens, smart terminals and embedded bar LCD applications. Customization is available for brightness, interface, touch panel, FPC structure, cover lens and other specifications based on different project requirements.

Key Features
  • 12.3 inch bar type TFT LCD module with 1920x720 resolution
  • LVDS 50 pin interface for vehicle and industrial display systems
  • 700 cd/m² typical brightness for clear dashboard and terminal display use
  • Wide operating temperature range from -30℃ to +85℃
  • 88/88/88/88 typical viewing angle for stable visual performance
  • 72% NTSC color gamut for better image and UI display quality
  • Normally black display mode with 1100:1 typical contrast ratio
  • Customization support for brightness, touch panel, cover lens and FPC design
Technical Specifications
Screen Size 12.3 Inch
Resolution 1920 × 720

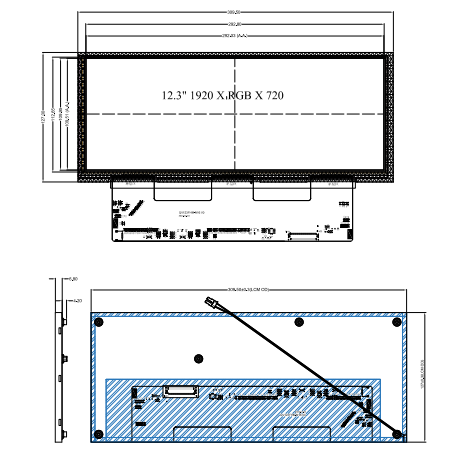

Module Dimensions 307 × 125.5 mm
Active Area 292.032 × 109.512 mm
Brightness 700 cd/m²
Display Interface LVDS / 50 Pin
Viewing Angle 88/88/88/88 Typ.
Operating Temperature -30℃ to +85℃
Storage Temperature -40℃ to +90℃
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
Application Scenarios

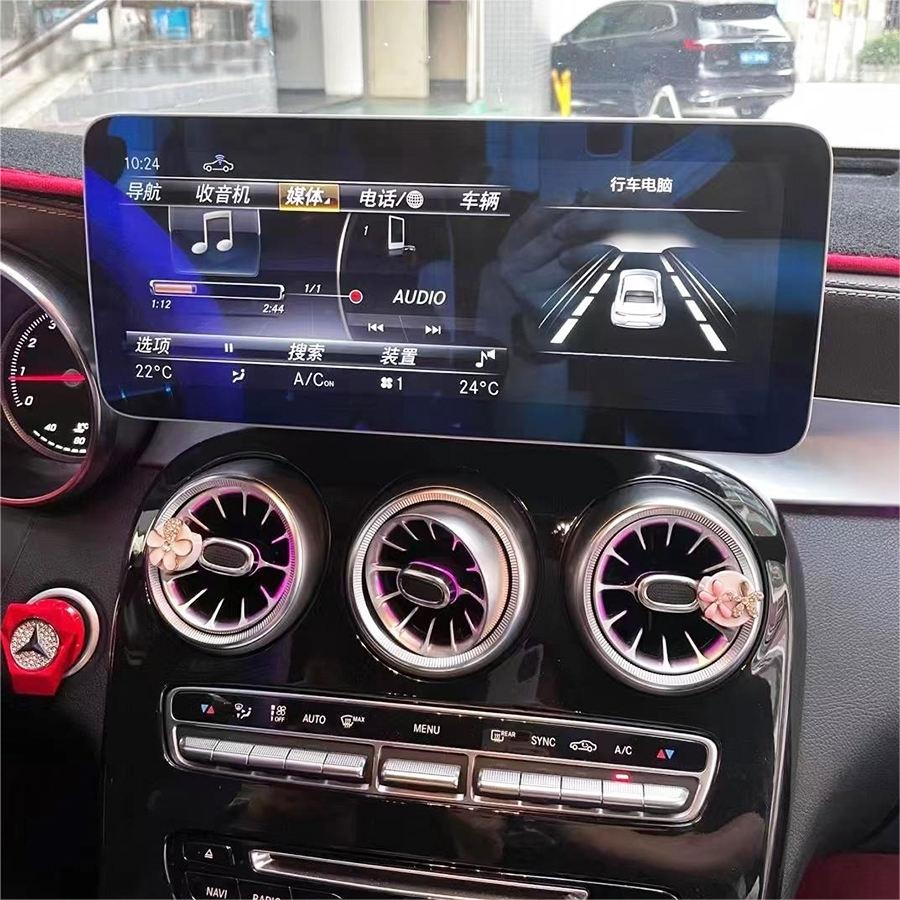

  • Vehicle-mounted display systems and automotive dashboard screens
  • Industrial HMI panels requiring wide bar LCD modules
  • Smart cockpit display and instrument cluster applications
  • Commercial equipment control panels with long bar display layout
  • Medical and testing equipment requiring 12.3 inch bar screens
  • Custom embedded display projects requiring 1920x720 LVDS LCD modules
Company Capabilities
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
12.3 Inch Bar Type TFT LCD Module with 1920x720 Resolution and 700 Nits Brightness for Industrial and Vehicle Displays
  • Rich Inventory: Over 1 million items in stock including Raspberry Pi boards, LCD displays, touch screens, enclosures, cables and accessories from leading brands
  • Competitive Pricing: Significant price advantages to reduce procurement costs and save valuable time. We wholesale and distribute new, original, branded electronic components globally
  • Quality Assurance: Equipped with international advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality
  • Expert Team: Composed of elite professionals with over 20 years of industry experience and deep understanding of international market trends
Frequently Asked Questions
How is product quality controlled?
Every product undergoes rigorous testing before shipment to ensure reliability and performance.
Do you provide samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically, shipment within 7 working days after payment confirmation.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What if we receive defective goods?
Please contact us immediately, we will investigate and provide the best solution as soon as possible.
What are your main products?
Comprehensive product line including Raspberry Pi development boards, LCD displays, touch screens, enclosures, cables, accessories, and development boards and accessories from leading brands such as NVIDIA, micro:bit, Arduino, BeagleBone Black.
What payment methods do you accept?
We accept wire transfer (T/T) payments.
What shipping methods do you provide?
We provide shipping services via DHL and China Post.
