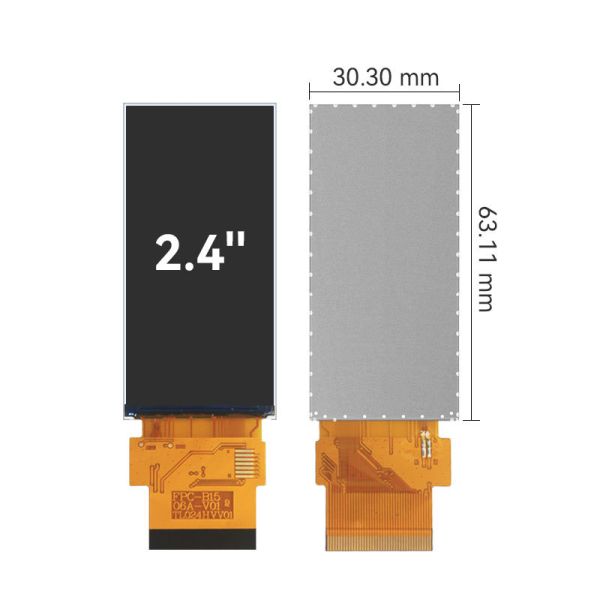

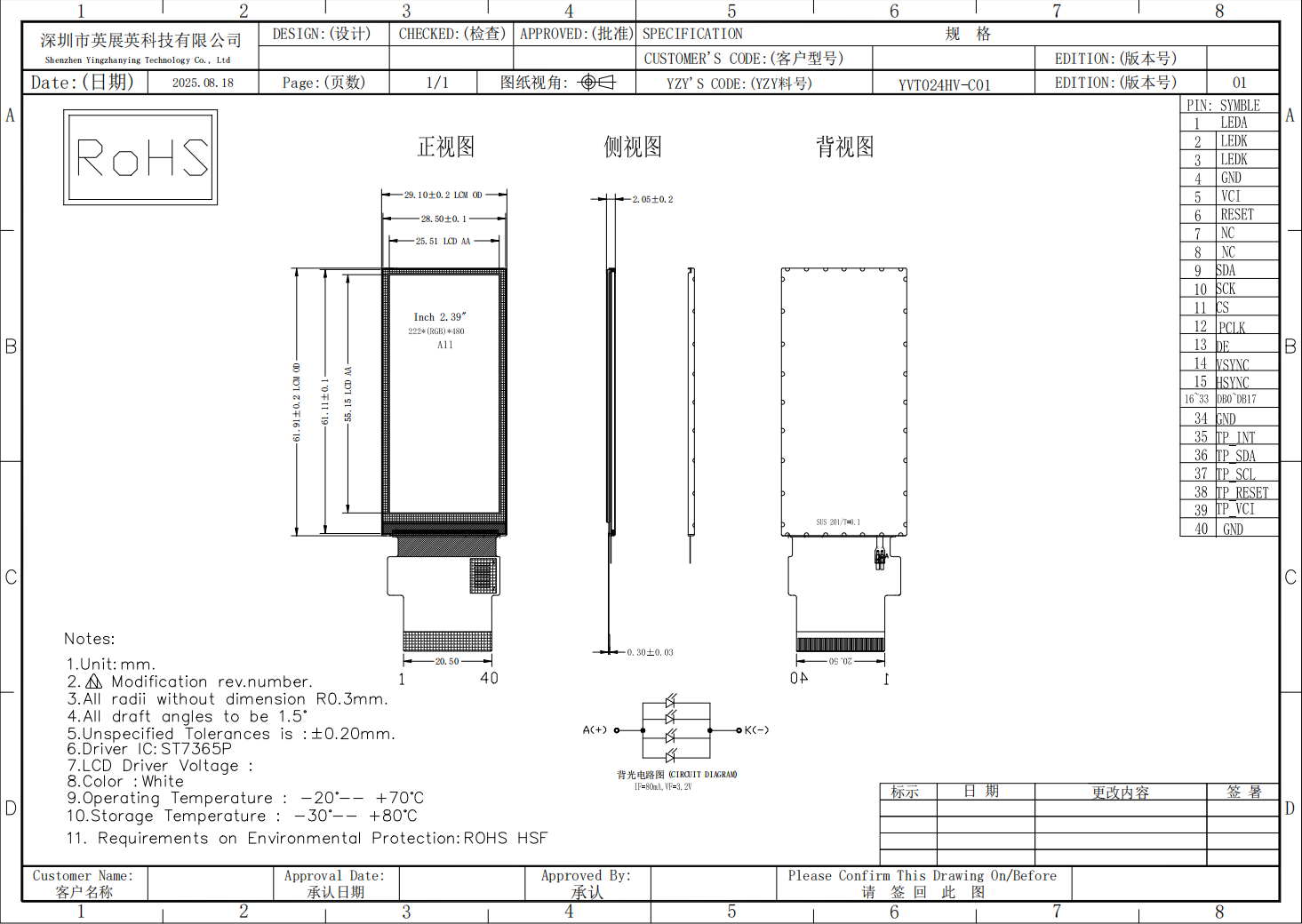

The YVT024HV-C01 is a 2.39 inch LCD display module suitable for industrial and consumer applications. It boasts a resolution of 222×480 pixels, with ST7365P as the driver IC, and supports SPI+RGB interface. Featuring a compact module outline dimension of 29.1(H)×61.91(V)×2.05(D) mm and an active area (LCD AA) of 25.51×55.15 mm, this module is well-suited for scenarios requiring a bar-shaped display. The IPS panel ensures full viewing angles and vivid image quality. It utilizes white LED backlight, offers 262K colors, and has an operating temperature range of -20℃ to +70℃ as well as a storage temperature range of -30℃ to +80℃, making it adaptable to various environments.

The YVT024HV-C01 LCD module operates with an analog supply voltage range of 2.5V to 3.3V (typical 2.8V) and a maximum analog supply current of 50mA, ensuring stable power performance for continuous use. The digital supply voltage ranges from 1.65V to 1.95V (typical 1.8V), with a maximum digital supply current of 35mA. For operating temperature, it works within -20.0°C to 70.0°C, and the storage temperature ranges from -30.0°C to 80.0°C. The operating and storage humidity is between 10% and 90% RH.

The YVT024HV-C01 LCD module boasts excellent environmental adaptability—with a wide operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C—ensuring stable performance even in harsh temperature conditions and making it suitable for diverse working scenarios; to guarantee long-term reliability, it has also passed a series of rigorous reliability tests, including 120-hour high-temperature (80°C) and low-temperature (-30°C) storage tests, 120-hour high-temperature (70°C) and low-temperature (-20°C) operation tests, and 10 thermal shock cycles (alternating between -20°C, 25°C, and 70°C), with no functional failures or appearance defects observed after all tests. Additionally, note that the module’s glass display panel and flexible polarizer are precision components requiring careful handling during use and assembly: avoid mechanical impacts (e.g., dropping, collision) to prevent panel cracking or damage, use only isopropyl alcohol or ethyl alcohol for cleaning (avoid other solvents that may corrode the polarizer), and strictly implement anti-static measures (e.g., grounding operators and tools) to prevent electrostatic discharge from damaging internal components.

The YVT024HV-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
