7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display
Specifications
Brand Name :
YZY
Model Number :
YVO070FW-C01
Certification :
RoHS/CE/CB
Place of Origin :
Guangdong, China
MOQ :
500
Price :
13.89-18.89/pc
Payment Terms :
,T/T,D/P,D/A,Western Union
Supply Ability :
300k/month
Delivery Time :
14-30days
Packaging Details :
320pcs/box
Description
7.0inch round LCD display 280*1424 resolution optional touch SPI MIPI RGB
280*1424 Resolution NV3052CRGB Driver IC SPI MIPI RGB Interface400 CD/m² Luminance -20℃ ~ +70℃ Operating Temp Wide Viewing Angle (ALL) Optional Capacitive Touch
Product Features
The YVO070FW - C01 is a 6.86 - inch LCD display module suitable for various industrial and consumer applications. It has a resolution of 280(RGB)×1424 pixels, providing clear and detailed visuals. Driven by the NV3052CGRB driver IC and supporting the SPI + RGB interface, this module ensures stable data transmission, meeting the response needs of different display applications.
The module has an outline dimension of 38.2(W)×181.47(H)×3.54(T) mm and an active display area of 33.6×170.88 mm. Its design allows for easy integration into devices with limited space. It maintains consistent color and brightness from any viewing direction (viewing direction: ALL). Also, with good display performance, it ensures vivid and lifelike images.
It uses an LED backlight and can operate stably in a certain temperature range (specific operating temperature not fully specified in the provided specs but adaptable to relevant application scenarios), making it adaptable to different environments.
Product 7.0 inch LCD Module Number YVO070FW - C01
Resolution 280*1424 Display Mode Normally Black
Brightness 400 nit Outline Dimensions 38.2(W)×181.47(H)×3.54(T) mm
Viewing Direction All (IPS) Active Area
33.6*170.88 mm
Interface SPI RGB MIPI Driver IC NV3052CGRB
Backlight LED Operating Temp. -20 ~ +70 °C
Connector Type
0.5 PITCH 40pin
 Storage Temp. -30 ~ +80 °C
Highlight 7.0-inch LCD, 280*1424 resolution, NV3052CRBG driver, SPI RGB MIPI interface

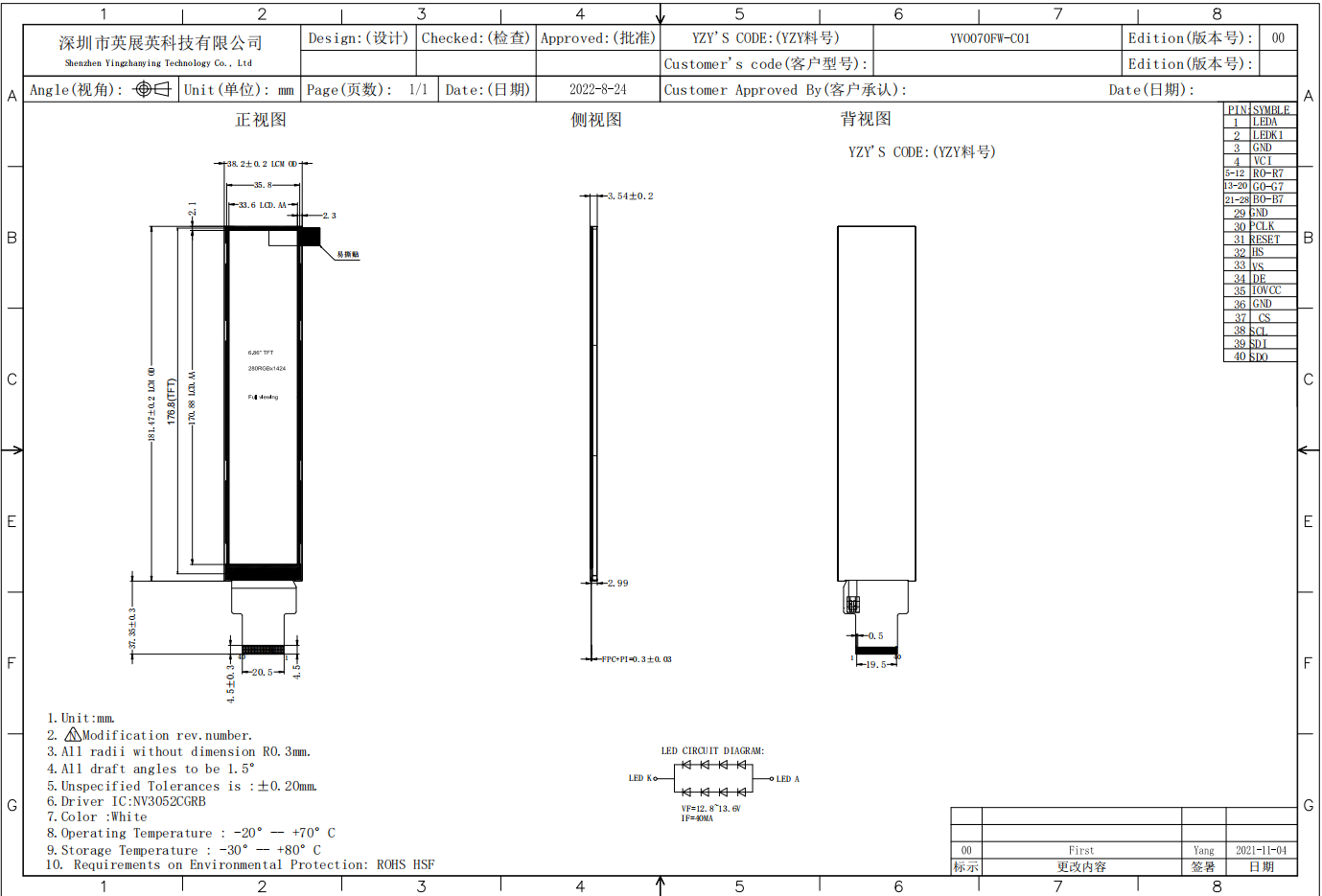

Technical Drawing
The YVO070FW - C01 LCD module boasts reliable electrical performance. The power supply voltage for logic (VDD) ranges from 0.3V to 3.6V. It can operate within a temperature range of -20°C to 70°C and be stored in a temperature range of -30°C to 80°C.
For the backlight, the typical forward current (IF) is 80mA, and the typical forward voltage (VF) is 12.8V, ensuring sufficient brightness. It's noted that if the LED is driven under high current, high ambient temperature, and humidity conditions, the life of the LED will be reduced, with the operating life (when brightness drops to 50% of initial brightness) being estimated data.

7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display

PIN Definition
PIN Symbol Description
1 LED A LED ANODE
2 LED K LED CATHODE
3 GND Ground
4 VCI Power supply
5 - 12 R0 - R7 RED Data Signal
13 - 20 G0 - G7 GREEN Data Signal
21 - 28 B0 - B7 BLUE Data Signal
29 GND Ground
30 PCLK RGB dot clock signal
31 RESET Reset Signal, Active Low
32 HSYNC RGB line synchronizing signal
33 VSYNC RGB frame synchronizing signal
34 DE RGB data enable signal
35 IOVCC Power supply
36 GND Ground
37 CS SPI Chip select signal
38 SCL SPI Clock signal
39 SDI SPI Data signal
40 SDO SPI Data Object

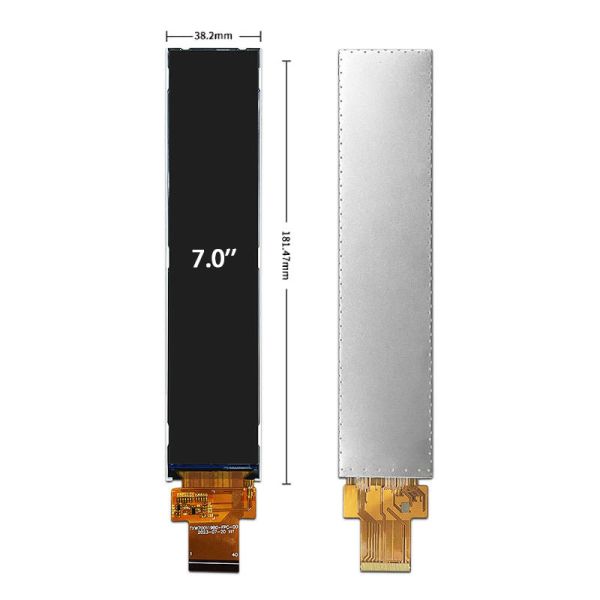

Product Picture

The YVO070FW - C01 LCD module showcases excellent environmental resilience and reliability, having successfully passed a series of rigorous tests. These tests include 120 hours of high - temperature (80°C) storage, 120 hours of high - temperature (70°C) operation, 120 hours of low - temperature (-30°C) storage, 120 hours of low - temperature (-20°C) operation, 120 hours of operation in a humid environment (40°C/90%RH), and 10 cycles of thermal shock (non - operation) with the condition of -20°C ← 25°C → 70°C (0.5 hour ← 5 min → 0.5 hour). After undergoing these tests, the module exhibits no abnormalities in functions and appearance.

7 Inch Bar Type LCD Display 280*1424 Resolution MIPI RGB SPI Interface Display

Customization Options

The YVO070FW-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability
