YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen
YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen
Specifications
Brand Name :
YZY
Model Number :
YBN024EGU-S1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
300 pieces
Price :
$5.5~6.4/pieces
Payment Terms :
T/T
Supply Ability :
10000Pieces
Delivery Time :
14-60 days
Packaging Details :
20*20*8
Description
YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen

The dot matrix resolution of the 2.4-inch HF series serial screen (HFD)is 240x320.It has built-in simplified Chinese font library and English ASCII character set,and open internal dot matrix DDRAM ,which can display pictures and graphics at any position on the screen.In terms of hardware ,it provides UART interface mode with simple wiring.With the sGUI drag-and-drop programming tool developed by our company ,users can design beautiful and gorgeous user interfaces with only a few simple instructions.From then on ,users no longer need to spend high hardware costs and long development cycles to configure LCD color screens for equipment and instruments.HFD 's rich on-chip resources and powerful instruction set are the preferred solution for customer project development.

Technical Specifications
Parameter type
Measurement data
Explain
Display area (A.A)
36.72mm*48.96mm
/
Resolution (PPI)
240*320
/
Display color
65K
/
Pixel layout
RGB vertical strip

Best viewing angle
ALL (Full View)

Contrast
800 :1 (Typ.)

Backlight light source type
WHITE LED
Highlight white LED ,adjust backlight brightness
Module brightness
420cd/m2

Visible indoors and outdoors
Yes

DDRAM
153K video memory
Open internal DDRAM

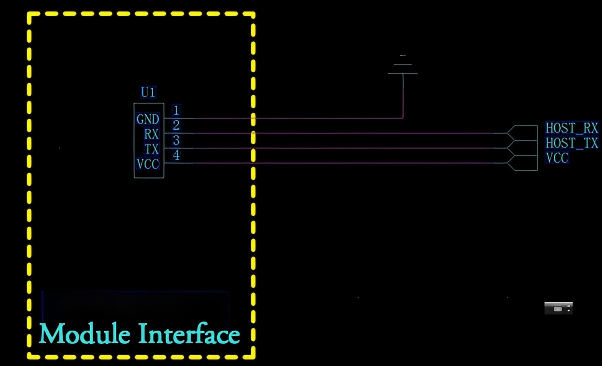

Hardware interface diagram

YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen

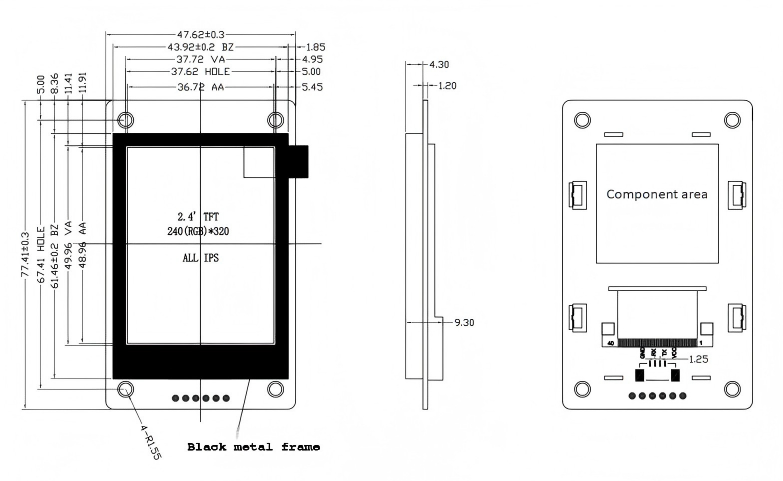

Structural drawings

YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen


Application examples in industrial and consumer devices
YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen
Partner companies and collaborative projects
YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen
Manufacturing facility and quality control environment
YBN024EGU-S1 New HF Series 2.4-inch LCD Screen Intelligent Serial Port Screen Dynamic QR Code Industrial Control Display Screen
Shipping methods and delivery information
Company Profile

Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.

Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.

Frequently Asked Questions
How do you control product quality?

Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including high/low temperature storage, high temperature & high humidity operation, thermal shock, vibration and ESD test.

Do you supply samples?

Yes, we provide samples for customer evaluation and functional testing.

What is the delivery time?

Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.

What is the minimum order quantity?

10 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.

What if we receive missing or defective items?

Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.

What are your main products?

Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive, smart home and consumer electronics applications.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.

What shipping methods do you offer?

DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
