0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
0.90 Round IPS TFT LCD Module 128x128 4-Wire SPI Normally Black ST7735 Driver for Wearables
Specifications
Brand Name :
YZY
Model Number :
YVO0090BBS-J1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
500 pieces
Price :
$2.25~3.99/pieces
Payment Terms :
T/T
Supply Ability :
10000Pieces
Delivery Time :
14-60 days
Packaging Details :
25*25*10
Description
0.90 Inch IPS TFT LCD Display Module

0.90 inch IPS TFT LCD module with 128(RGB)×128 resolution, 4-line SPI interface, 262K full colors, all viewing angle, wide temperature range, designed for smart wearables, fitness trackers, portable medical devices, IoT sensors, handheld instruments and compact embedded display projects.

Product Overview

This 0.90 inch IPS TFT LCD display module uses high-quality IPS wide-viewing technology and compact ultra-thin structure, supporting 128×128 resolution and 262K true color display. Equipped with 4-wire SPI serial interface and ST7735 driver chip, it features high contrast, fast response, stable signal transmission and long-life white LED backlight. With operating temperature range from -20℃ to +70℃, ultra-thin 1.95mm profile and standard 10-pin FPC connector, this module provides stable and clear display performance for small-sized smart electronic products and portable devices.

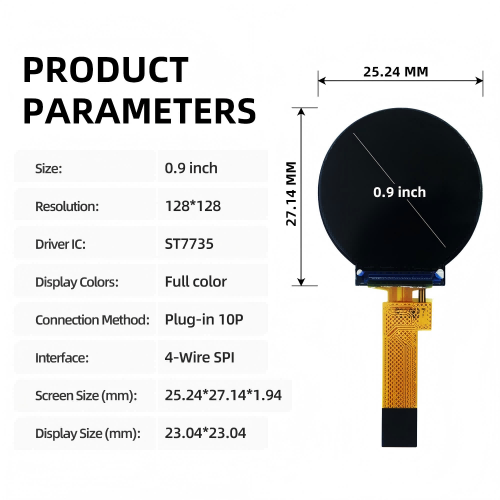

Technical Specifications
Display Type 0.90 Inch IPS TFT-LCD Module LCM
Model Number YVO0090BBS-J1
Part Number T090BI-C10-01
Resolution 128(RGB) × 128 Pixels
Display Mode Normally Black, Transmissive
Display Colors 262K True Colors
Panel Type IPS Full Viewing Angle (ALL Direction)
Interface 4-Wire SPI Serial Interface
Driver IC ST7735
Contrast Ratio 800:1 ~ 1200:1 (Typical)
Response Time 25 ~ 35 ms (Typical)
Viewing Angle 80/80/80/85 deg (Full View)
Brightness 350 cd/m² (Typical)
Backlight White LED, Constant Current 60mA
Backlight Voltage 3.0V (Typical 2.9~3.1V)
Backlight Current 60 mA (Typical)
Outline Dimension 25.24(W) × 27.14(H) × 1.95(T) mm
Active Area 23.04(W) × 23.04(H) mm
Connector 10 Pin FPC 0.5mm Pitch
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Touch Panel Without Touch
Compliance RoHS Compliant
Key Features
  • 0.90 inch IPS TFT LCD with 128×128 resolution and 262K true color display
  • IPS full viewing angle design ensures clear image from all directions
  • High contrast ratio for sharp and vivid visual effect
  • 4-wire SPI interface for easy control and stable signal transmission
  • Built-in ST7735 driver IC for reliable and consistent performance
  • White LED backlight with long lifespan up to 10,000 hours
  • Ultra-thin 1.95mm thickness for compact device integration
  • Wide temperature range suitable for industrial and consumer applications
  • Standard 10-pin FPC connector for easy assembly and stable connection
  • RoHS compliant, eco-friendly and meets international standards
  • Strict reliability tests ensure stable performance under harsh conditions
  • Support customization for FPC, pin definition and mechanical structure
Applications
  • Smart watch and fitness tracker display
  • Wearable health monitoring devices
  • Portable medical instruments and small healthcare devices
  • IoT smart sensors and compact embedded display systems
  • Handheld measurement equipment and industrial meters
  • Bluetooth audio, smart bracelets and wearable electronics
  • Small consumer electronics and intelligent beauty devices
  • Compact industrial control modules and battery-powered devices
Product Documentation
0.90
Product drawing
0.90
Application examples in industrial and consumer devices
0.90
Partner companies and collaborative projects
0.90
Manufacturing facility and quality control environment
0.90
Shipping methods and delivery information
Company Profile

We are a professional display solution provider focusing on R&D, production and sales of TFT LCD modules, touch displays and optoelectronic components. With rich experience in industrial display applications, we provide stable, reliable and highly compatible display products for global customers in intelligent manufacturing, automotive electronics, medical devices, smart home and consumer electronics.

Our main products include IPS TFT LCD modules, capacitive touch screens, custom LCD assemblies and FPC flexible circuit solutions. All products undergo strict reliability and quality testing to ensure stable performance in complex environments. We support OEM/ODM customization to meet different structural, interface and functional requirements.

Frequently Asked Questions
How do you control product quality?

Each module undergoes full inspection before shipment, including high/low temperature test, high temperature and high humidity test, ESD test, vibration test and aging test to ensure long-term stability.

Do you supply samples?

Yes, we provide sample support for customer evaluation, testing and prototype development.

What is the delivery time?

Standard orders are usually shipped within 7 working days after payment confirmation. Customized products require additional lead time.

What is the minimum order quantity?

We accept small MOQ for sample orders and provide flexible bulk order support.

What if we receive defective items?

We provide free replacement or after-sales support for confirmed quality problems.

Can you customize FPC or interface?

Yes, we support customization of FPC length, pin definition, outline structure and interface type.

What payment methods do you accept?

We accept T/T, Western Union and PayPal for sample and small orders.

What shipping methods do you offer?

We support DHL, FedEx, UPS and other international express services for fast and safe delivery.
