1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI
Specifications
Brand Name :
YZY
Model Number :
YVT016IWV-C01
Certification :
RoHS/CE/CB
Place of Origin :
Guangdong, China
MOQ :
500
Price :
2.89-3.99 /pc
Payment Terms :
,T/T,D/P,D/A,Western Union
Supply Ability :
500k/month
Delivery Time :
14-30days
Packaging Details :
320pcs/box
Description
1.6 inch round LCD display 400*400 resolution optional touch SPI RGB MIPI
400×400 Resolution ST77903 Driver IC QSPI/MIPI Interface 350 nits Brightness -20~70°C Operating Temp
Product Features

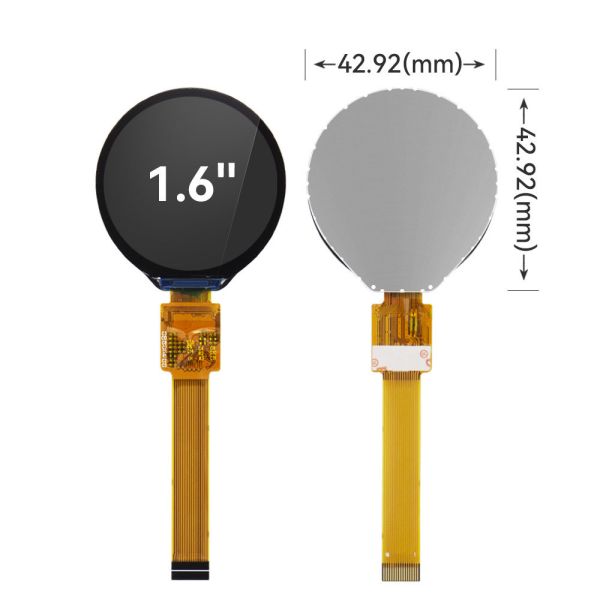

The YVT016IWV-C01 is a 1.6-inch round LCD displaymodule designed for industrial and consumer applications. Boasting a 400×400 resolution and powered by the ST77903 driver IC, it supports QSPI/MIPI interface for versatile connectivity. Measuring 42.94×45.89×2.09 mm in outline dimension with an active area of 39.84×39.84 mm, its compact design makes it perfect for circular smart devices. While it comes without a touch function as standard (touch capability can be added via customization), the IPS panel guarantees full viewing angles, 16.7 million colors, and striking image vividness.

Product 1.6 inch Round LCD Module Number YVT016IWV-C01
Resolution 400×400 Touch Without
Brightness 350 nits Outline Dimensions 42.94*45.87*1.55 mm
Viewing Direction All (IPS) Active Area 39.84*39.84 mm
Interface QSPI/MIPI Connector Type 0.5 Pitch 40 Pin
Driver IC ST77903 Operating Temp. -20 ~ +70 °C
Number of color 16.7M Storage Temp. -30 ~ +80 °C
Highlight 1.6-inch round LCD, 400×400 resolution, ST77903 driver, QSPI/MIPI interface

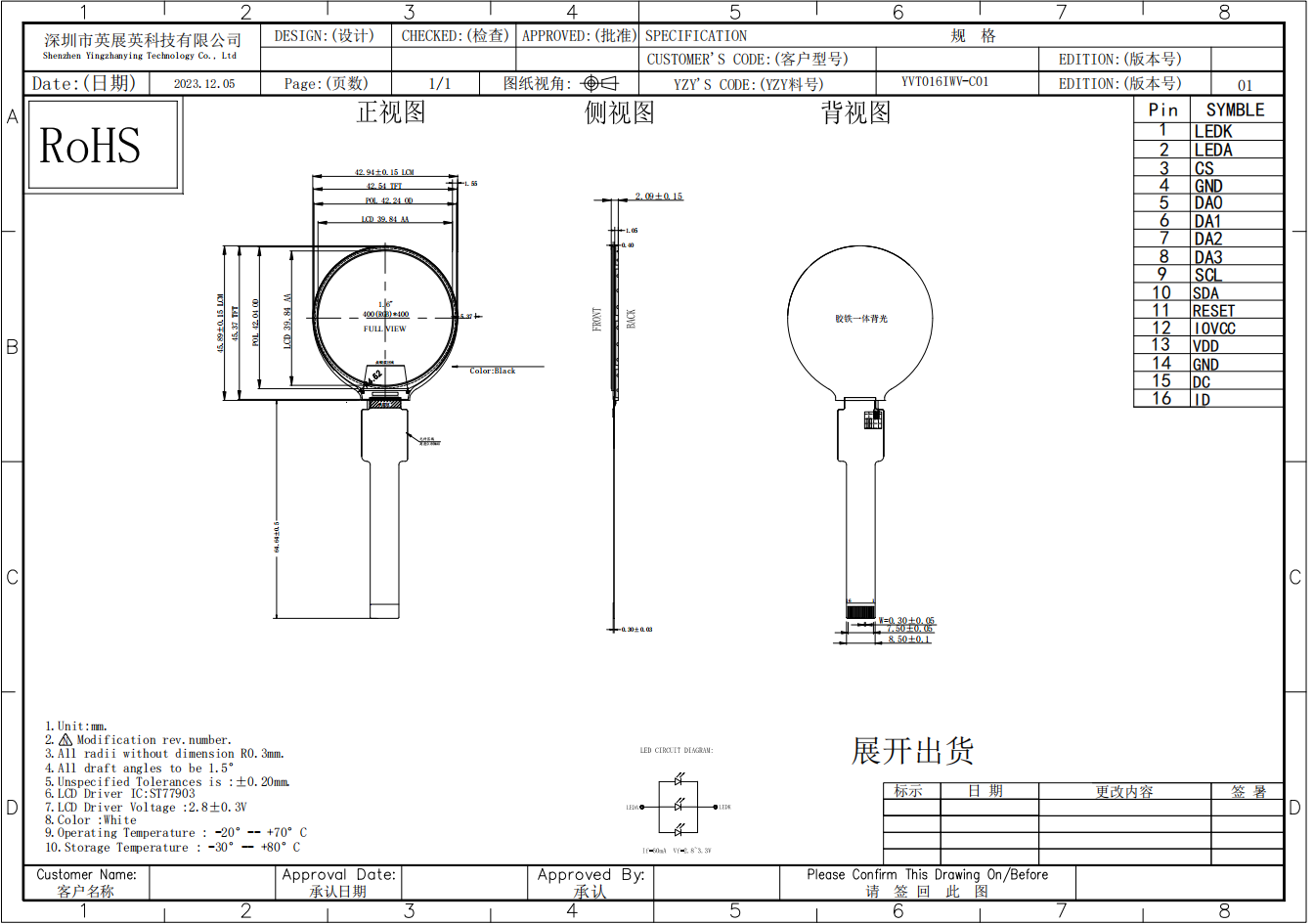

Technical Drawing
The YVT016IWV-C01 LCD module operates within an input voltage range spanning from 4.5V to 6.5V, with a typical voltage of 5V. This wide voltage tolerance ensures compatibility with a range of power sources. The maximum supply current is set at 200mA, guaranteeing stable power delivery during continuous operation.​For illumination, it is equipped with a series - connected LED backlight system. Comprising 3 LEDs, this backlight functions at a typical forward voltage of 3.5V and a forward current of 60mA. This configuration not only offers ample brightness for clear visibility but also optimizes energy consumption, making it energy - efficient for extended use.​
In terms of electrical connection, the module utilizes a 0.8 - pitch 30PIN connector. This type of connector provides a secure and hassle - free connection, streamlining the process of integrating the module into different device circuits. Whether it's for industrial control panels or consumer electronics, the connector design ensures reliable signal and power transfer.

1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI

PIN Definition
Pin No. Symbol Description
1 LEDK
Power Supply For LED Backlight Cathode Input
2 LEDA
Power Supply For LED Backlight Anode Input.
3 CS
Chip selection pin
4 GND
Ground
5 SDA/IO0
QSPI Data / Command Selection pin
6 SDA/IO1
QSPI Data / Command Selection pin
7 SDA/IO2
QSPI Data / Command Selection pin
8 SDA/IO3
QSPI Data / Command Selection pin
9 SCL
Serial data input/output pin.
10 SDA
SPI data signal
11 RESET
Reset Signal input pin.
12 LOVCC
Power Supply 2.8-3.3V
13 VDD
Power Supply2.8- 3.3V
14 GND
Ground
15 DC
(data/ command selection) in SPI Interface .
16 ID
ID
Product Picture
The YVT016IWV-C01 LCD module boasts solid environmental adaptability, with an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, fitting diverse application scenarios. It passes strict reliability tests (120h high/low-temp operation/storage, 10 thermal cycles) with no functional or appearance issues.
For handling: Avoid mechanical shocks to its glass panel and soft polarizer; clean only with isopropyl/ethyl alcohol (never water, ketones). Ensure anti-static measures (ground operators/tools) during assembly; do not disassemble, and store away from direct sunlight/ harmful gases.

1.6 Inch Round LCD Display 400*400 Resolution Optional Touch QSPI MIPI

Customization Options

The YVT016IWV-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
