IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
Specifications
Brand Name :
YZY
Model Number :
YCH070WVD-T
Certification :
CE/ROHS
Place of Origin :
Guangdong, China
MOQ :
300pcs
Price :
$41.5-45/pieces
Payment Terms :
T/T
Supply Ability :
5K/Month
Delivery Time :
10-30 work days
Display Size :
5 inch
Supplier Type :
Factory
Description
YCH070WVD-T 7 Inch IPS Portable Display with 1024*600 Resolution HDMI and Raspberry Pi Compatibility
Product Overview

The YCH070WVD-T is a 7-inch IPS HDMI LCD display with 1024*600 resolution and 5-point capacitive touch screen, designed for versatile applications including Raspberry Pi projects, gaming consoles, and computer displays.

IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility

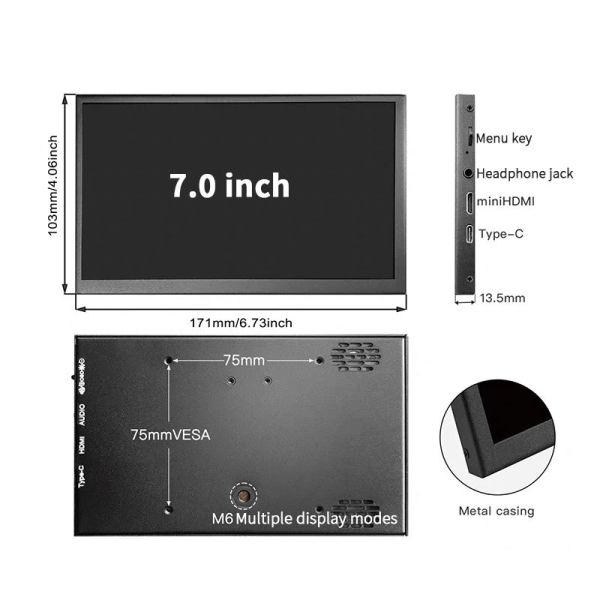

Product dimension
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
Interface and Controls
No Component Description
1 USB-5V Power and touch signal input interface (USB-C)
2 HDMI Video and audio signal input interface (miniHDMI/HDMI)
3 AUDIO Audio output interface
4 LED Power indicator (green: power-on, red: power-off)
5 POWER Power button for on/off control
6 MENU Activates OSD menu or confirms function adjustments
7 UP Menu navigation or volume increase shortcut
8 DOWN Menu navigation or volume decrease shortcut
9 EXIT Menu exit or input signal switch shortcut
10 Speakers 1.5W×2 stereo speakers
Mechanical Structure
No Feature Description
11 M2.5/58×49mm Mounting holes for Raspberry Pi 3B/4B motherboard
12 M3/75×75mm VESA standard bracket fixing holes
13 M6 Fixing hole for monitor installation
14 Adjustable Angle Bracket mounting hole (optional accessory)
Windows/macOS Connection
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility

Connect HDMI cable between computer and monitor

For non-touch models: USB cable provides power only (≥0.5A current)

For touch models: Connect USB to Windows host with data transfer capability

Connect power before HDMI for proper signal transmission

Some macOS versions may have touch compatibility issues

Windows Display Settings
  1. Right-click desktop → Select "Display settings"

IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility

2. Configure display preferences as needed

IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
Game Console/TV Box Connection
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
  • Game devices don't support touch functionality
  • Connect power before HDMI cable
Raspberry Pi Setup
  1. Download and install official Raspberry Pi image
  2. Modify config.txt file by adding:
    max_usb_current=1
    hdmi_force_hotplug=1
    config_hdmi_boost=7
    hdmi_group=2
    hdmi_mode=87
    hdmi_drive=2
    hdmi_cvt 1024600606000
  3. Insert microSD card and connect Raspberry Pi via HDMI and USB (use ≥3A power supply)
Technical Specifications
Model YCH070WVD-T
Screen Size 7.0 inch
Resolution 1024*600
Power Supply DC 5V-1A (5W)
Viewing Angle 170° Full View
Dimensions

171×103×17.3mm
NTSC Ratio 50% NTSC
Response Time 25ms
Aspect Ratio 16:9
Contrast 800:1
Brightness 300cd/m²
Touch Function Capacitive 5-Point Touch
Speakers 1.5W×2 Stereo
Shell Material Aluminum Alloy (Black/White)
Mounting Supports wall mounting (58×49mm)

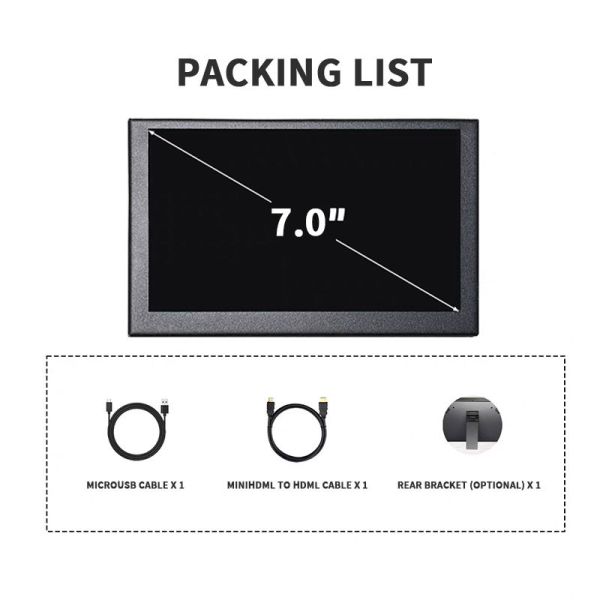

Package Contents LCD Screen, HDMI Cable, USB Cable, User Guide
IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility
Troubleshooting and FAQs
Display Problems

No display or black screen with proper cable connection:

  • Connect power (USB) before HDMI cable
  • Avoid using interface converters - some don't support this resolution
  • Check display driver installation (Linux/RPi may require system modifications)
  • Verify HDMI signal output from host

Display flickering, white screen, or auto power-off:

  • Possible insufficient power - use ≥3A supply for Raspberry Pi
  • Try different HDMI cable if signal is unstable
Touch Problems

Display works but touch doesn't respond:

  • Use original cables
  • Verify product touch capability
  • Restart computer with monitor connected
  • Ensure USB cable is properly connected to host
