Specifications
Model Number :
YVO068HD-X01
MOQ :
500 pcs
Brand Name :
YZY
Payment Terms :
T/T
Price :
$16–19 / Piece
Certification :
RoHS
Place of Origin :
Guangdong,China
Description

6.88 Inch Incell TFT LCD Display Module

Incell strip lcd screen MIPI interface with ultra wide temperature for industrial smart devices

6.88 Inch Incell TFT LCD Module with 480×1280 Resolution MIPI Interface and Ultra Wide Temperature -30~+80℃ Bar Type LCD Display

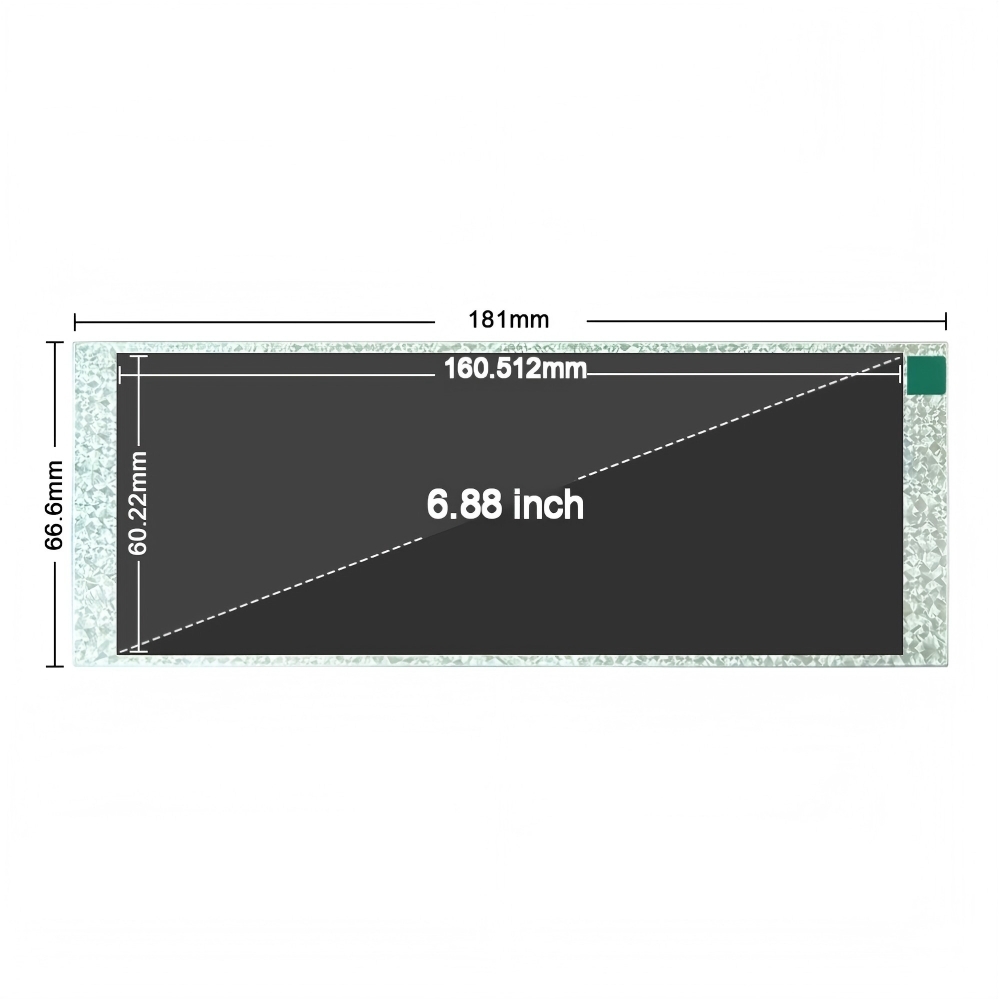

Product Front View


6.88 Inch Incell TFT LCD Module with 480×1280 Resolution MIPI Interface and Ultra Wide Temperature -30~+80℃ Bar Type LCD Display

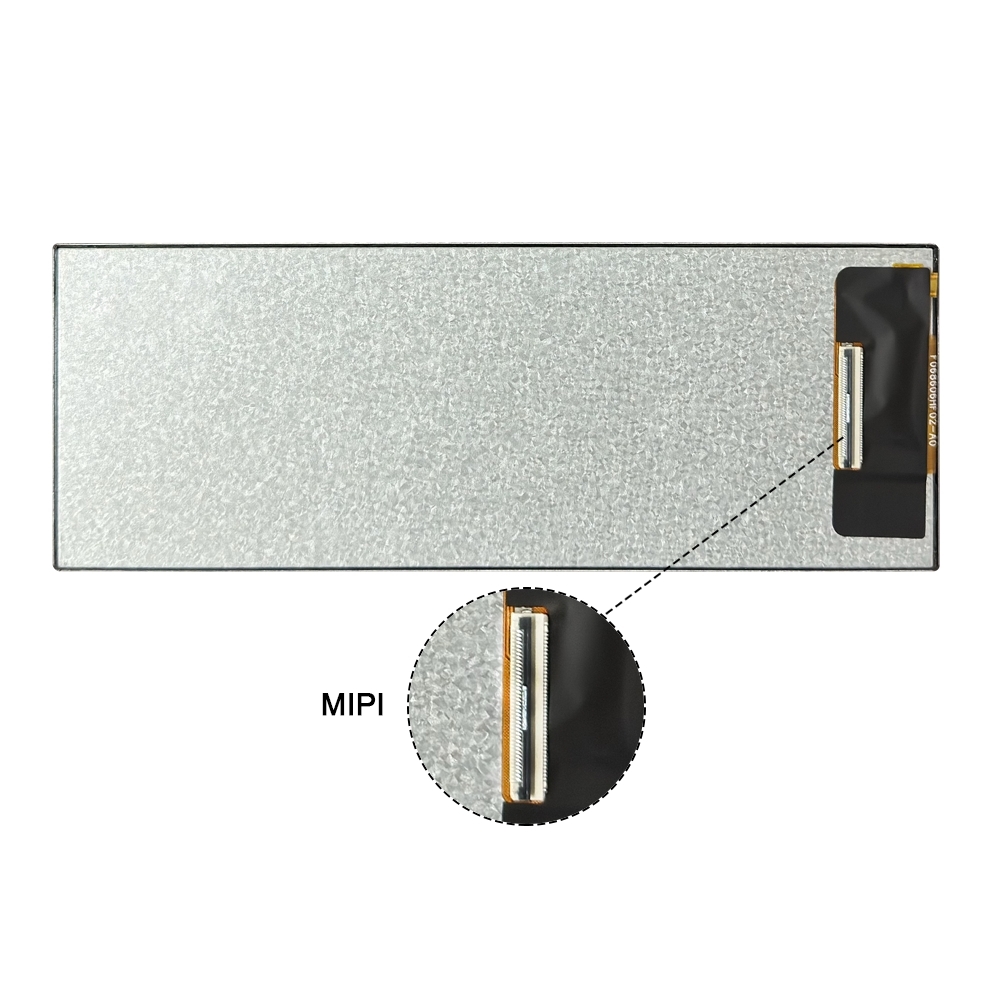

Product Back View

Product Brief Introduction

This 6.88‑inch Incell TFT‑LCD module adopts transmissive Normally‑Black display mode, resolution 480×1280, equipped with MIPI high‑speed interface. It supports ultra wide temperature of -30℃ ~ +80℃, typical brightness 500cd/m², 65% NTSC color gamut, 85‑degree full viewing angle. Built‑in 12 parallel/series white LED backlight, suitable for industrial control and various harsh‑environment embedded strip display equipment.

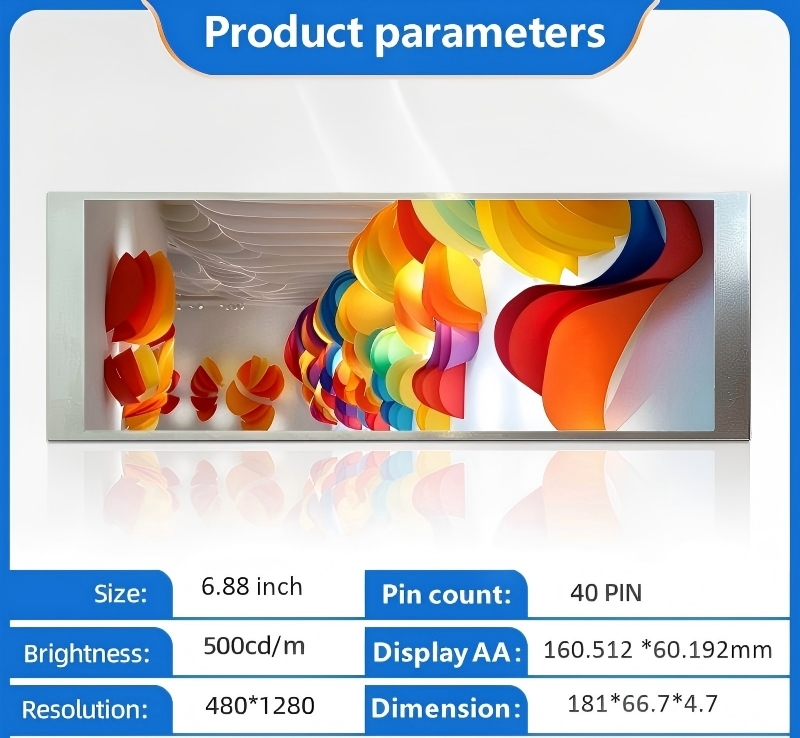

Main Technical Parameters

Item Specification
Display Size 6.88 Inch Incell
Resolution 480 × 1280 Pixels
Active AA Area 160.512(W) × 60.192(H) mm
Outline Dimension 181 × 66.7 × 4.7 mm
Display Mode Transmissive Normally Black
Interface MIPI
Backlight 12 PCS White LED Parallel/Series
Brightness(Typ.) 500 cd/m²
NTSC Color Gamut(Typ.) 65%
Operating Temperature -30℃ ~ +80℃
Storage Temperature -30℃ ~ +80℃

Mechanical Dimension Drawing

6.88 Inch Incell TFT LCD Module with 480×1280 Resolution MIPI Interface and Ultra Wide Temperature -30~+80℃ Bar Type LCD Display

Mechanical Dimension Drawing

Optical Performance Index

  • Typical Brightness: 500 cd/m²
  • Typical Contrast Ratio: 1000
  • Response Time: 30ms(Typ), 35ms(Max)
  • NTSC Color Gamut: 65%(Typ.)
  • Wide Viewing Angle: Horizontal & Vertical 85 degree

Reliability Test Conditions

Test Project Test Condition
High Temperature Storage 80℃, 96 Hours power‑off
Low Temperature Storage -30℃, 96 Hours power‑off
High‑Humidity Operation 60℃, 90%RH, 96 Hours powered‑on
Low Temperature Operation -20℃, 96 Hours powered‑on
High Temperature Operation 70℃, 96 Hours powered‑on
Thermal Shock Test -30℃ ~ 80℃,72 cycles

Typical Application Scenarios

  • Industrial long‑strip embedded display terminal
  • Equipment status indicator display panel
  • Outdoor equipment auxiliary display screen
  • Ultra wide temperature strip lcd display devices

Important Usage Reminders

  1. Avoid strong impact,twist and bend on LCD module surface.
  2. Prevent static‑electric damage,keep grounding for assembly operation.
  3. Do not use corrosive liquid to wipe polarizer surface.
  4. Please confirm MIPI timing and power supply parameters before sample test.

Get In Touch With Us

Welcome to inquire samples, quotation and custom lcd module solutions.
