Specifications
Supply Ability :
10000Pieces
Model Number :
YC1010NSU-Q1
Payment Terms :
T/T
Price :
$3.99~5.99/pieces
Certification :
CE, ROHS
MOQ :
500 pieces
Delivery Time :
14-60 days
Brand Name :
YZY
Place of Origin :
Guangdong, China
Packaging Details :
45*25*8
Description
10.1 Inch YC1010NSU-Q1 Android Touch All-in-One Panel PC D1-101 IPS 10-Point Capacitive Touch IP65 HMI Monitor with RJ45 WiFi BT5.0

This 10.1 inch Android touch all-in-one machine (Model YC1010NSU-Q1, Part No.D1-101) adopts low-power multi-core processor and full-laminated IPS LCD capacitive touch screen. The touch surface reaches IP65 protection grade, equipped with abundant I/O interfaces including RJ45 Ethernet, HDMI, USB, TF Card, DC power, supporting Android 10/Linux/Debian system. It features thin lightweight body, stable operation, complete communication ports and multiple installation methods, ideal for indoor & semi-outdoor HMI applications in retail, hotel, medical, education, transportation and industrial automation.

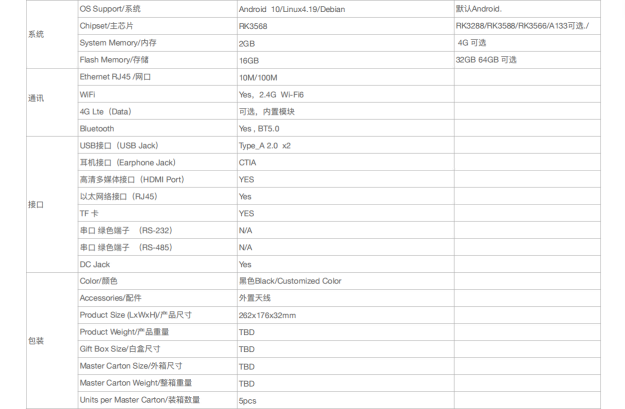

Technical Specifications
Product Name 10.1 Inch Android Touch All-in-One Panel PC
Model Number YC1010NSU-Q1
Part Number D1-101
Screen Size 10.1 inch
Panel Type IPS LCD
Resolution 800×1280 / 1920×1200 Optional
Aspect Ratio 16:10
Contrast Ratio 800:1
Brightness 300cd/m² Standard, 500/800 nits High Brightness Optional
View Angle 85/85/85/85 Full Viewing Angle
Touch Type 10 Point Capacitive Touch, AG Anti-Glare / Full Lamination Optional
Touch Protection Grade IP65 Front Touch Surface
Main Chipset RK3568, RK3288, RK3588, RK3566, A133 Optional
Operating System Android 10 (Default), Linux4.19, Debian Optional
RAM 2GB / 4GB Optional
Storage Flash 16GB / 32GB / 64GB Optional
Ethernet RJ45 10M/100M Fast Ethernet
Wireless 2.4G WiFi6, Bluetooth 5.0, 4G LTE Data Module Optional
Interfaces HDMI, Dual USB2.0 Type-A, TF Card Slot, 3.5mm Earphone Jack, DC Power Jack, RESET Button
Product Dimension 262(L) × 176(W) × 32(H) mm
Active Display Area 216.96(W) × 135.6(H) mm
Installation VESA Wall Mount, Cantilever Bracket, Desktop Base Support
Color Black Standard, Custom Color Available
EMC Standard ESD 3 Level, EFT 3 Level, Surge 3 Level, PFMWF 5 Level (GB/T National Standard)
Compliance RoHS Compliant, 10 Years Environmental Service Life
Key Features
  • 10.1-inch IPS full viewing angle screen with 10-point capacitive touch, support full lamination & AG anti-glare customization
  • IP65 waterproof & dustproof front touch panel, stable performance for indoor and semi-outdoor working environment
  • Multiple Rockchip main chips & Android/Linux dual system optional, low power consumption & high integration design
  • Flexible memory & storage options: 2/4GB RAM + 16/32/64GB flash to match different industrial project demands
  • Complete I/O ports: RJ45 wired network, WiFi6 + BT5.0 wireless, HDMI, dual USB, TF expansion, DC power supply
  • Multiple mounting solutions: VESA wall mount, cantilever stand, desktop base for cabinet, wall, counter installation
  • Ultra-thin lightweight integrated body, good heat dissipation structure, stable long-time continuous operation
  • Customizable service: touch panel design, customer logo, shell color, anti-fingerprint coating, whole machine assembly
  • Passed professional EMC anti-interference test, suitable for complex industrial electromagnetic environment
  • RoHS environmental protection standard, long 10-year safe service cycle for commercial & industrial terminals
Applications
  • Retail self-service kiosks, supermarket cash touch terminals and store display screens
  • Hotel front desk check-in panels, room control touch screens and lobby information displays
  • Catering ordering machines, self-service ordering touch panels and kitchen display terminals
  • Education classroom interactive equipment, student learning touch screens and training terminals
  • Medical ward control panels, medical auxiliary human-machine interaction equipment
  • Public transportation information terminals, station inquiry touch screens
  • Government office self-service inquiry terminals, service hall display panels
  • Industrial automation HMI human-machine interface, equipment control touch monitors
Product Documentation
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel

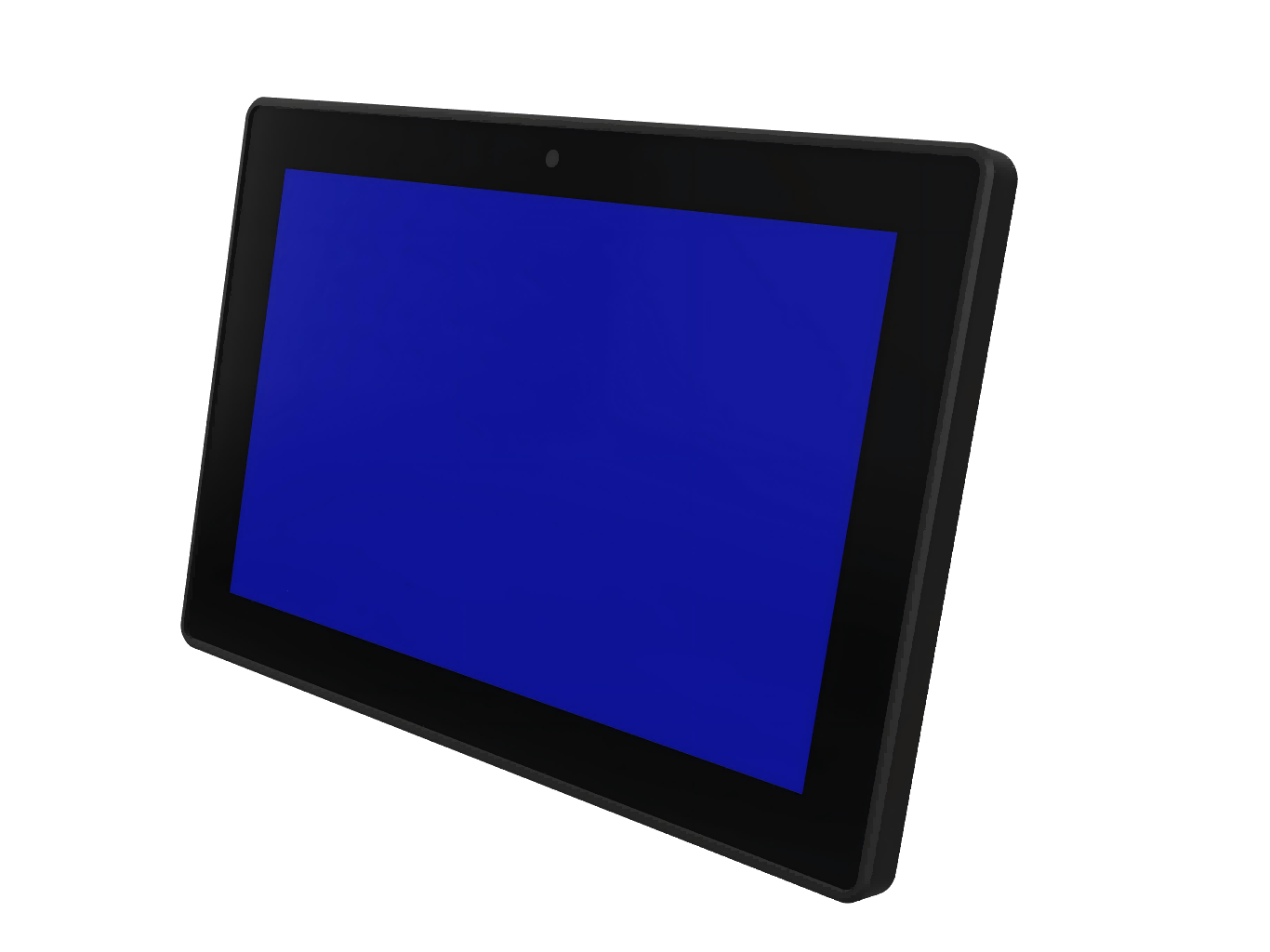

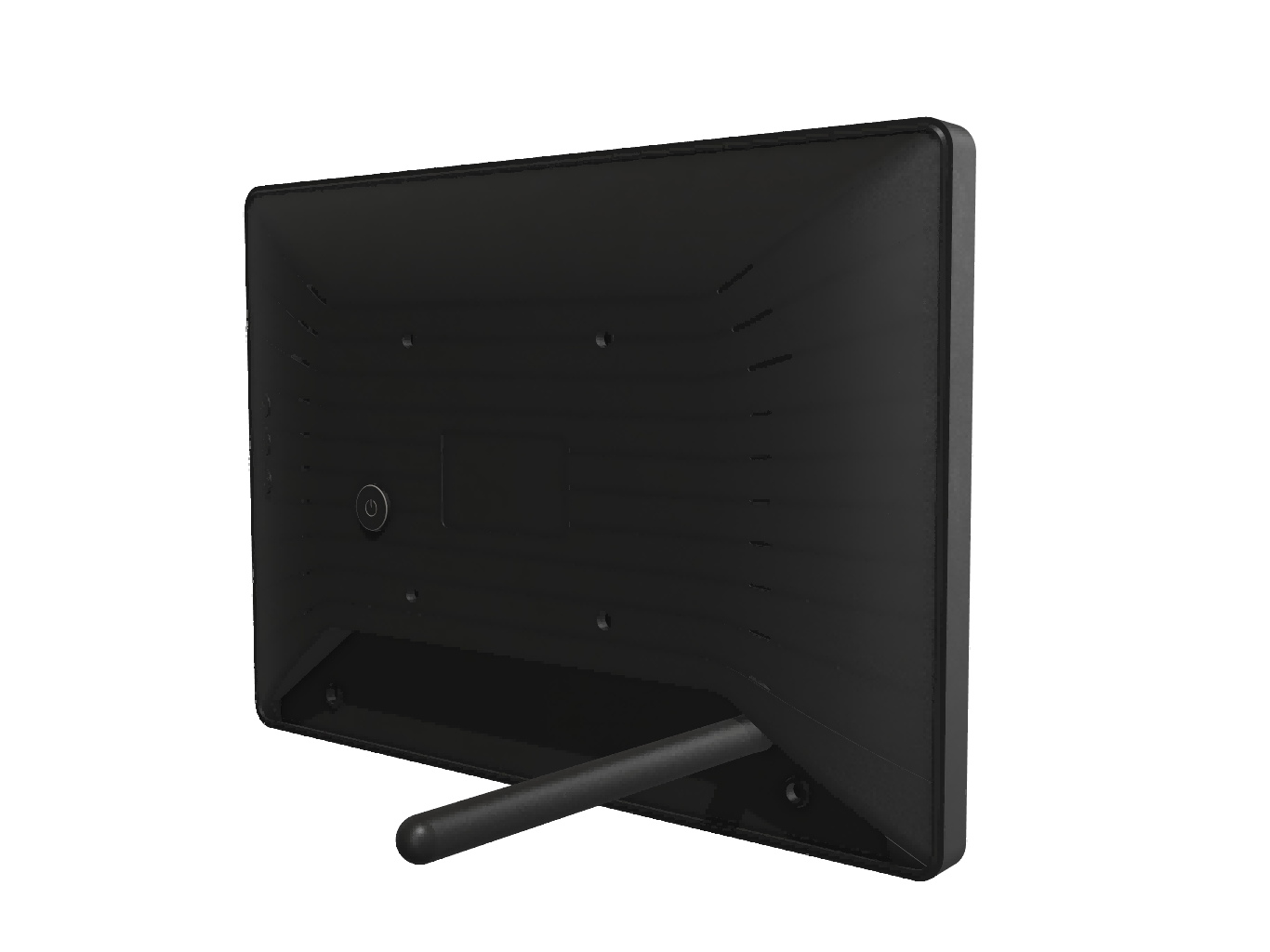

Product Appearance
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel

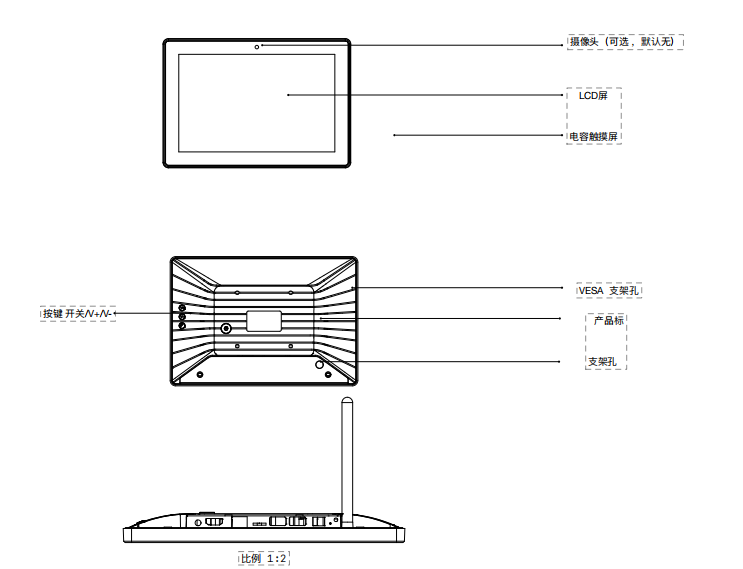

Product Drawing
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel

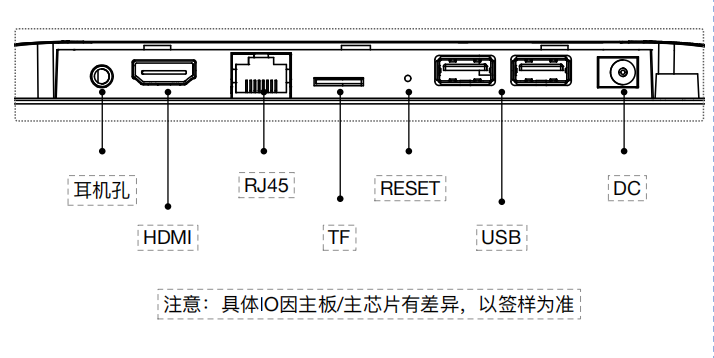

Rear Interface Layout Drawing
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel

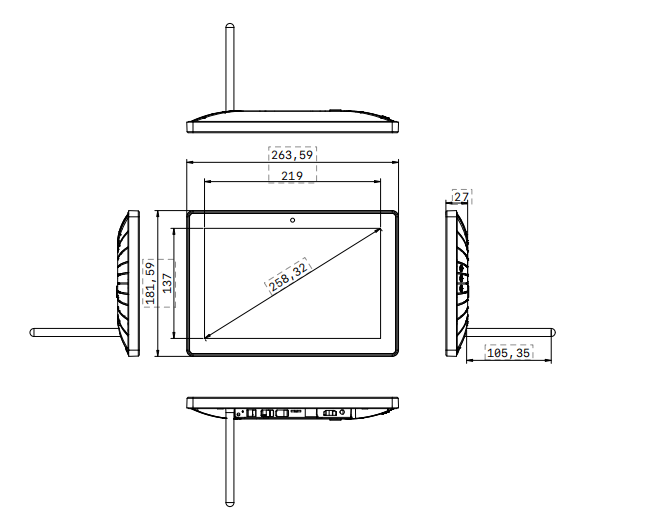

Overall Dimension Mechanical Drawing
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel
VESA Mount Hole Drawing
10.1 Inch Android Touch All-in-One PC IPS 800x1280 Capacitive 10 Point Touch RJ45 WiFi BT5.0 Industrial Panel
Multiple Installation Mode Diagram
Why Choose Us?

Extensive Display Product Supply: We supply full series of industrial touch all-in-one panels, TFT LCD modules, Raspberry Pi displays, OLED screens, industrial monitors, touch HMI, driver boards, self-service kiosk displays, supporting commercial and industrial embedded display projects of all sizes.

Customization Support: Full range customization available, including touch full lamination, AG anti-glare coating, shell color, customer logo, brightness upgrade, 4G module addition, interface definition and whole machine assembly adjustment.

Strict Quality Control: All Android touch all-in-one machines undergo aging test, touch function test, interface communication test and appearance inspection before shipment, comply with EMC anti-interference national standards and RoHS environmental requirements.

Professional Technical Team: Our engineering team has rich experience in industrial HMI solutions, can assist customers to select chip, resolution, brightness and system version according to usage scenarios, provide firmware flashing and screen parameter debugging technical support.

Flexible Order & Stable Delivery: Support sample testing orders and mass bulk orders, stable raw material supply chain to guarantee lead time for commercial and industrial batch projects, complete after-sales troubleshooting guide provided.

Frequently Asked Questions
How do you control product quality?
Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, display performance, touch response and power input. Each batch of 10.1 inch Android touch all-in-one PCs will pass long-time aging test, touch sensitivity test, wired & wireless communication test and full interface detection before delivery.
Do you supply samples?
Yes, samples are available for testing and project evaluation. We can provide sample all-in-one machines for customer verification of touch effect, display resolution, system operation and interface compatibility.
What is the delivery time?
For standard models, delivery time depends on stock and order quantity. For customized products or project-based orders, we will confirm the lead time after checking the detailed requirements like brightness, chip, 4G module and surface craft.
What is the minimum order quantity?
Sample order is available. Bulk order quantity can be discussed based on the product model, stock status and customization requirements.
Can you support customization?
Yes, rich customization items supported: AG anti-glare, full lamination, anti-fingerprint coating, custom shell color, printing customer logo, brightness upgrade, built-in 4G LTE module, touch scheme adjustment and whole machine assembly optimization.
What if we receive missing or defective items?
Please contact us with photos or videos of the issue. We will check the case and provide a suitable solution as soon as possible, including technical guidance for failure diagnosis, firmware upgrade or replacement service.
What payment methods do you accept?
T/T payment is accepted. Other payment methods can be discussed before order confirmation.
What shipping methods do you offer?
DHL, FedEx, UPS, air freight, and China domestic forwarding services are available.
