2.86 Inch Stretched Bar TFT LCD Module 376RGB×960 MIPI 30Pin 750cd/m² High Brightness YVO029WVGA-X01

This 2.86-inch slim long strip a-Si TFT LCD panel adopts vertical RGB pixel arrangement, 376(H)×960(V) resolution and 30Pin MIPI differential FPC interface, with 4 parallel LED backlight circuit. It delivers typical 750 cd/m² brightness and 1500:1 contrast ratio, supports -20℃ to 70℃ operating & storage temperature, passes full temperature and humidity reliability tests, widely used for automotive dashboards, household appliances, industrial control strips and embedded smart devices.

Technical Specifications
Product Name 2.86 Inch Stretched Bar TFT LCD Module
Model Number YVO029WVGA-X01
Diagonal Size 2.86 Inch Stretched Bar
Native Resolution 376(H) × RGB × 960(V)
Active View Area 26.508(W) × 67.68(H) mm
Overall Outline Dimension 31.20(W) × 76.60(H) × 2.45(T) mm
Pixel Pitch 23.5um(H) × 70.5um(V)
Pixel Arrangement RGB Vertical Stripe
Display Mode Normally Black
Interface Type MIPI D-Path Differential
FPC Pin Count 30 Pin
Logic Voltage VCI / IOVCC 3.3V Typical
VGH Gate Voltage 10.0V Min ~ 15.0V Max, Typ 12V
VGL Gate Voltage -15.0V Min ~ -10.0V Max, Typ -12V
VCOM Voltage -3.0V Min ~ 0V Max, Typ -1.3V
Backlight Structure 4 Parallel LEDS
Typical LED Current 80mA
White Luminance Typ 750 cd/m²
Contrast Ratio Min 1000:1, Typ 1500:1
View Angle (CR>10) 85° All Directions Horizontal & Vertical
NTSC Color Gamut Typ 55.1%
Display Color 16.7M Full Colors
Response Time Tr+Tf Typ 30ms, Max 35ms
Operating Temperature -20℃ ~ +70℃
Storage Temperature -20℃ ~ +70℃
Reliability Test Standard 72h High/Low Temp, 72h 60℃ 90%RH Operation
Compliance Standard RoHS Compliant
Key Features
  • Slim long stretched bar 2.86 inch TFT screen with 376×960 vertical RGB high resolution
  • 30Pin standard MIPI differential FPC interface, 3.3V stable logic power supply
  • 4 parallel LED backlight with 80mA typical current, uniform flicker-free brightness
  • 750 cd/m² ultra high brightness, clear display under strong ambient light
  • 1500:1 high contrast ratio, deep black and sharp graphic performance
  • 85° full horizontal & vertical viewing angle with consistent color rendering
  • 55.1% NTSC gamut, support 16.7 million rich display colors
  • Ultra thin 2.45mm total thickness, compact strip outline for narrow equipment structure
  • Industrial wide temperature grade, stable operation -20℃ ~ 70℃
  • Pass 72h high / low temp and high humidity aging reliability test
  • Normally Black panel, low light leakage for meter & indicator UI design
  • Complete 30Pin pinout with reset, clock, data, backlight anode & cathode pins
  • AQL full outgoing inspection including dot defect, mura, light leakage test
Applications
  • Automotive instrument long bar indicator displays
  • Household appliance control strip touchless screens
  • Industrial equipment running status indicator panels
  • Vending machine & smart locker UI strip LCDs
  • Handheld medical device parameter display modules
  • Embedded ARM & MCU control system screens
  • Smart home control panel narrow displays
  • Small-sized custom bar screen bulk OEM projects
Product Documentation
2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display
Product image
2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display

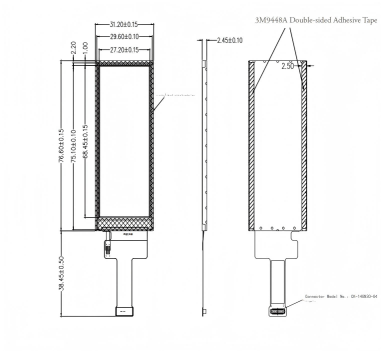

Product Drawing
2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display
Optical luminance & viewing angle test layout
2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display
Tr+Tf response time waveform chart
2.86 Inch Bar TFT LCD Module TB028-I3004S37A-00 376×960 MIPI 30Pin 750nits Industrial Display
Factory reliability testing process
Why Choose Us?

Full Size LCD Supply: We provide complete series small-size & stretched bar TFT LCD modules, MIPI/RGB interface industrial screens, touch integrated displays, matching driver boards, supporting mass OEM & customized development.

Cost-Effective Bulk Price: Stable raw material supply chain, support sample trial, small batch and large volume industrial orders with flexible quotation.

Strict Quality Inspection: Every display passes full visual, electrical and high-low temperature aging test before shipment, screen dot, mura, flicker and backlight uniformity fully inspected.

Professional Technical Support: Display engineering team verifies compatibility based on your mechanical size, interface, brightness and temperature requirements, provide official datasheet for project design.

Frequently Asked Questions
How do you carry out product quality inspection before delivery?
All display modules undergo comprehensive outgoing inspection including dead pixel, bright dot, mura, light leakage, backlight uniformity, signal communication stability and high-low temperature cycling test to eliminate defective goods.
Can I order samples for circuit and structure testing?
Yes, sample service is available for prototype verification, circuit debugging and project feasibility evaluation.
How long is the standard production lead time?
Stock items can be shipped quickly; customized or large quantity orders will confirm accurate lead time after checking detailed technical demands.
What is your minimum order quantity support?
We accept small sample orders, medium trial batches and long-term mass production orders, MOQ can be negotiated according to specific demands.
Do you accept custom modification for display parameters?
Customization service is available for FPC length, backlight current, brightness and partial optical parameters for mass cooperation orders.
If defective screens are received, how will you handle after-sales support?
Please provide clear photos or videos of defective products, our technical team will quickly confirm the problem and offer reasonable after-sales solutions.
What payment methods can I choose for cooperation?
Mainly support T/T wire transfer, other payment terms can be negotiated in advance before order confirmation.
Which shipping ways do you offer for global clients?
DHL, FedEx, UPS international express, air cargo and bulk sea shipping solutions are all available for selection.
