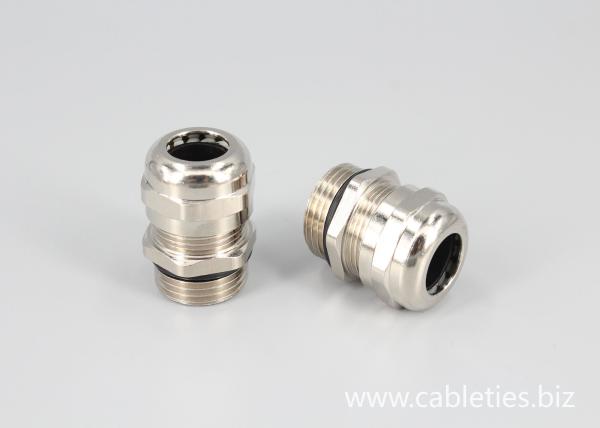

NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
NPT G thread metal brass or stainless steel material cable gland
Specifications
Brand Name :
DEMOELE,ODM,OEM
Model Number :
NPT, G
Certification :
CE
Place of Origin :
China
MOQ :
10000
Price :
USD 0.1-1 / PC
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000000 PCS per day
Delivery Time :
5-10 work days,according to your order quantity
Packaging Details :
100-1000pcs/bag,or according to your requires.
Type :
NPT, G
Material :
Brass or Stainless steel
IP degree :
IP68
Description

Material:Brass or Stainless steel material,the sealing is NBR material,the clamp claw is nylon material.

Thread: NPT and G

IP degree:IP68

Working temperature:-40℃ to 100℃

Feature:Resistant to salt water,weak acid,alcohol,oil,grease,etc.High tension.

NPT G thread metal brass or stainless steel material cable gland

Specification

Remark:Special specification can be customized.
Type Cable diameter(mm) Thread diameter AG(mm) Teeth number within 25mm Thread length GL (mm) Jointment length H(mm) Wrench diameter(mm)
G1/4 3-6.5 13.1 19 10 19 14
G3/8 4-8 16.6 19 10 19 14
G1/2 6-12 20.9 14 10 20 17
G3/4 13-18 26.4 14 10 20 17
G1 18-25 33.2 11 10 21 20
G11/4 22-33 41.9 11 10 21 20
G11/2 32-38 47.8 11 15 22 22
G2 37-44 59.6 11 15 22 22
G21/2 42-52 75.1 11 15 23 24
G3 65-70 87.8 11 15 23 24
NPT1/4 3-6.5 13.6 18 15 25 24
NPT3/8 4-8 17 18 15 25 24
NPT1/2 6-12 21.2 14 15 27 30
NPT3/4 13-18 26.5 14 15 27 30
NPT1 18-25 33.2 11.5 15 29 35
NPT11/4 22-33 41.9 11.5 15 29 35
NPT11/2 32-38 48 11.5 15 31 40
NPT2 37-44 60 11.5 15 31 40
NPT21/2 42-52 72.6 8 15 37 50
NPT3 65-70 88.6 8 15 37 50

Details of product

NPT G thread metal brass or stainless steel material cable gland

NPT G thread metal brass or stainless steel material cable gland
