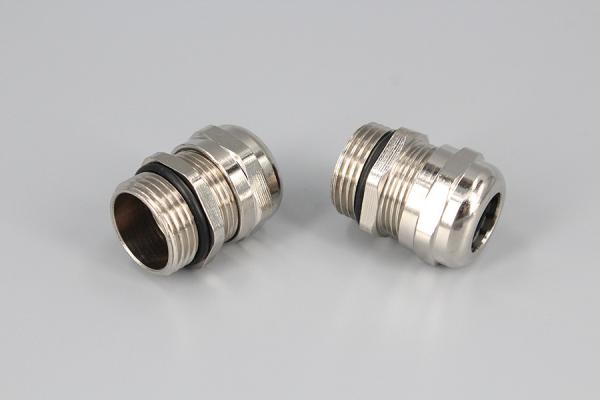

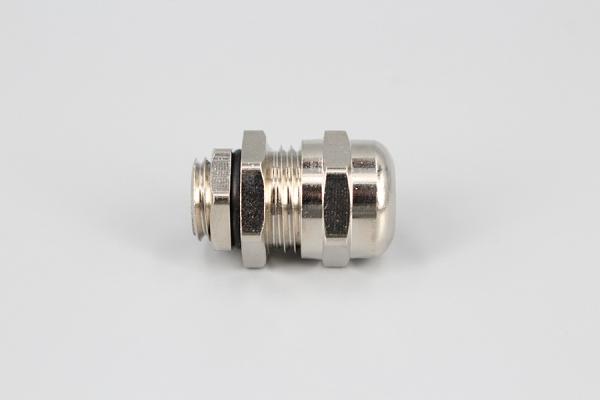

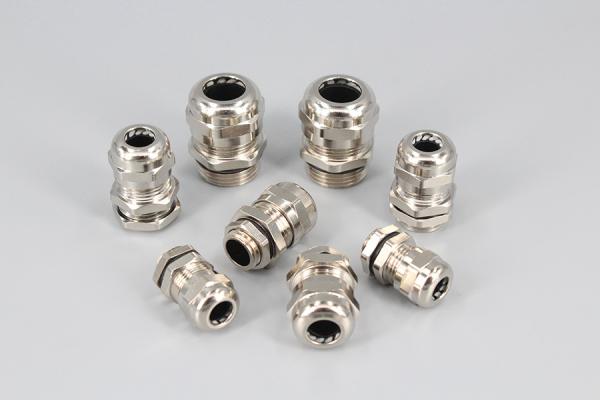

Metal cable gland-Brass nickel plated and stainless steel
Metal cable gland-Brass nickel plated and stainless steel
Metal cable gland-Brass nickel plated and stainless steel
Metal cable gland-Brass nickel plated and stainless steel
Metal cable gland-Brass nickel plated and stainless steel
Metal cable gland-Brass nickel plated and stainless steel
Specifications
Brand Name :
DEMOELE,ODM,OEM
Model Number :
PG,Metric,NPT,G
Certification :
CE
Place of Origin :
China
MOQ :
10000
Price :
USD 0.1-1 / PC
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10000000 PCS per day
Delivery Time :
5-10 work days,according to your order quantity
Packaging Details :
100-1000pcs/bag,or according to your requires.
Type :
M8-100
Material :
Brass or Stainless steel
IP degree :
IP68
Description

Material:Brass nickel plated or Stainless steel material,the sealing is NBR material,the clamp claw is nylon material.

Thread: Metric

IP degree:IP68

Working temperature:-40℃ to 100℃

Feature:Resistant to salt water,weak acid,alcohol,oil,grease,etc.High tension.

Metal cable gland-Brass nickel plated and stainless steel

Specification

Remark:Special specification can be customized.
Type Cable diameter
(mm)		 Thread diameter AG(mm) Thread length GL(mm) Thread length
(lengthen type)
GL(mm)		 Jointment length H(mm) Wrench diameter(mm) Remark
PG7 3-6.5 12.5 7 10 19 14 Standard type
PG9 4-8 15.2 8 10 20 17
PG11 5-10 18.6 8 10 21 20
PG13.5 6-11 20.4 8 15 22 22
PG16 10-13 22.5 9 15 23 24
PG19 12-15 25 9 15 25 24
PG21 13-18 28.3 9 15 27 30
PG25 16-21 32 10 15 29 35
PG29 18-25 37 11 15 31 40
PG36 22-32 47 12 15 37 50
PG42 32-38 54 13 15 38 57
PG48 37-44 59.3 14 15 38 65
PG63 42-50 72 15 20 42 77
PG7 2-5 12.5 7 10 19 14 Rubber ring thicken type
PG9 2-6 15.2 8 10 20 17
PG11 3-7 18.6 8 10 21 20
PG13.5 5-9 20.4 8 15 22 22
PG16 7-12 22.5 9 15 23 24
PG19 10-13 25 9 15 25 24
PG21 9-16 28.3 9 15 27 30
PG25 13-18 32 10 15 29 35
PG29 13-20 37 11 15 31 40
PG36 20-26 47 12 15 37 50
PG42 25-31 54 13 15 38 57
PG48 29-35 59.3 14 15 38 65
PG63 32-40 72 15 20 42 77

Details of product

Metal cable gland-Brass nickel plated and stainless steel

Metal cable gland-Brass nickel plated and stainless steel
