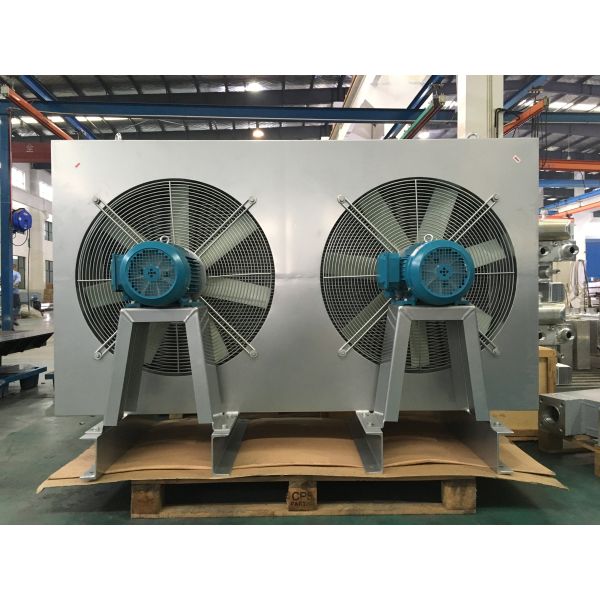

85KW Liquid Cooling Systems For Power Transmission Transformation In New Energy Applications
85KW Liquid Cooling Systems For Power Transmission Transformation In New Energy Applications
Specifications
Brand Name :
YUDA
Model Number :
LSF-85kw
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Application Industry :
New Energy Wind Power Solar Power Generation
Cooling Capacity :
85 KW
Operating Pressure :
Up to 1.6 MPa
Cooling Medium :
Deionized Water or Glycol Mixture
Rated Flow Rate :
30 to 120 L per minute
Application Field :
Power Transmission and Transformation in New Energy
Main Material :
Industrial Grade Aluminum
Optional Material :
Stainless Steel
Temperature Range :
Minus 20 C to 60 C
Power Supply :
AC 380V 50 Hz or Customized
Description
85KW Water Cooling System for Power Transmission and Transformation
The 85KW Water Cooling System is a professional liquid cooling solution designed for modern electrical infrastructure with high power density and continuous operation requirements. In new energy systems including wind power, solar power, and energy storage integration projects, power transmission and transformation equipment generates significant heat during operation. Effective thermal management is essential to ensure safety, efficiency, and long service life.
This water cooling system delivers stable heat dissipation for critical power transmission and transformation components including transformers, converters, rectifiers, and high voltage power modules. With a rated cooling capacity of 85KW, the system supports long-term continuous duty and adapts to complex operating environments worldwide.
System Design and Performance
The system adopts a closed-loop water cooling structure combined with a high-efficiency heat exchanger. This design ensures fast heat transfer and precise temperature control for power transmission and transformation equipment operating under variable electrical loads. Industrial-grade materials and reliable circulation components provide strong resistance to thermal stress and environmental impact.
The intelligent control system continuously monitors temperature and operating status, enabling stable operation of power transmission and transformation systems in new energy projects. The compact and modular design allows flexible installation in substations, converter stations, and power distribution cabinets.
Technical Specifications
Parameter Value
Heat dissipation power range 10-200kW
Cooling medium flow range 3-20m³/h
Temperature difference (inlet vs ambient) ≥5℃
Cooling medium Pure water and ethylene glycol antifreeze
Antifreeze concentration 0-55%
System static pressure 0.15MPa
Design pressure 0.8MPa
Operating Conditions
Parameter Value
Storage environment relative humidity ≤95%
Operating environment temperature -40℃~40℃
Operating environment relative humidity ≤95%
Altitude ≤3000m
Power supply AC380V ±10%, 50 ±1Hz
Applications
Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.
85KW Liquid Cooling Systems For Power Transmission Transformation In New Energy Applications 85KW Liquid Cooling Systems For Power Transmission Transformation In New Energy Applications 85KW Liquid Cooling Systems For Power Transmission Transformation In New Energy Applications
