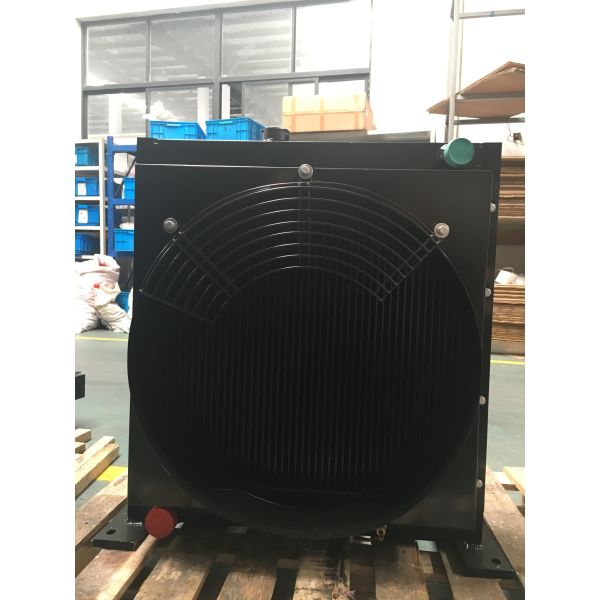

Filter Expansion Tank Plate Heat Exchanger Closed Type Water Cooling System 10-170L/min
Filter Expansion Tank Plate Heat Exchanger Closed Type Water Cooling System 10-170L/min
Specifications
Brand Name :
YUDA
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Heat Dissipation Power :
10–90 kW
Cooling Medium Flow :
10–170 L/min
Temperature Difference (ΔT) :
≥5°C
Cooling Method :
Closed-loop water circulation
Maximum Inlet Temperature :
40°C
System Pressure :
1–6 bar
Pump Type :
Variable speed centrifugal pump
Control Mode :
Automated temperature and flow regulation
Installation :
Floor-mounted with compact footprint
Working Medium :
Water, water-glycol mixture (optional)
Description
Filter Expansion Tank Plate Heat Exchanger Closed-Type Water Cooling System

Designed specifically for medical nuclear magnetic resonance systems, this closed-type water cooling system ensures optimal performance and reliability in demanding medical environments.

Technical Specifications
  • Frame-cabinet design with strategically placed exhaust and drain valves for easy maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, expansion tank, plate heat exchanger, and control system
  • Advanced temperature and pressure monitoring with both independent operation and remote control capabilities via terminal or serial port communication
  • Engineered for stability across various working conditions with optimized heat dissipation
  • Constructed with stainless steel and purple copper components for compatibility with deionized water cooling medium
Performance Metrics
Parameter Specification
Heat dissipation power range 10-90 kW
Cooling medium flow range 10-170 L/min
Temperature difference range ≥5℃ between inlet temperature of cooled device and inlet water temperature
Cooling medium Deionized water (external cooling: industrial circulating water)
System static pressure 0.15 MPa
Design pressure 1.0 MPa
Test pressure 1.0 MPa
PH external water coolant 6-9
Key Features

Medical-grade reliability: Specifically designed for nuclear magnetic resonance systems with precise temperature control and stable operation.

Robust construction: High-quality materials ensure compatibility with deionized water and long service life.

Flexible control: Supports both local operation and remote monitoring for integration with medical facility systems.
