New Energy Wind Power Grade Closed Type Water Cooling System With 10-90kW Heat Dissipation
New Energy Wind Power Grade Closed Type Water Cooling System With 10-90kW Heat Dissipation
Specifications
Brand Name :
YUDA
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
Wooden Case
Turbinetype :
Horizontal Axis Wind Turbine
Capacityfactor :
25% - 45%
Poweroutputrange :
100 kW - 10 MW
Bladematerial :
Fiberglass Reinforced Polyester
Noiselevel :
Less than 105 dB at 100 meters
Operationaltemperaturerange :
-20°C to 40°C
Cut-Outwindspeed :
25 m/s
Hubheight :
50 - 150 meters
Productname :
Wind Power
Ratedwindspeed :
12 m/s
Description

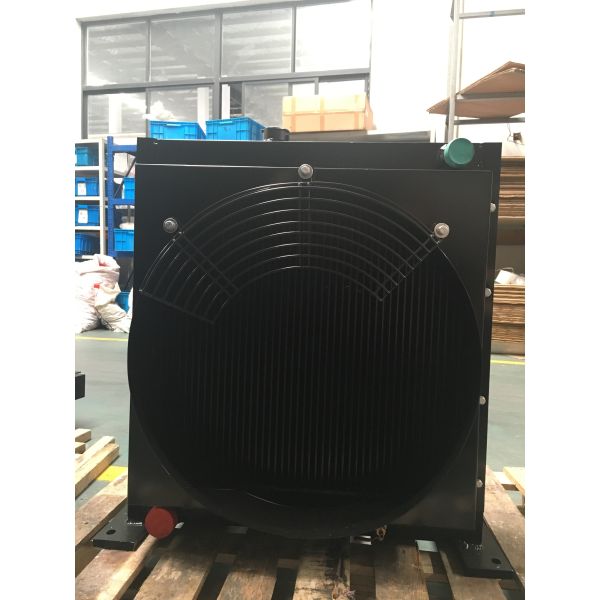

New Energy and Wind Power Grade Closed-Type Water Cooling System
This advanced closed-type water cooling system is specifically engineered for new energy and wind power applications, integrating a filter, expansion tank, and plate heat exchanger to deliver stable and efficient cooling for high thermal load industrial equipment. The fully closed-loop design ensures reliable temperature control, minimizes contamination risks, and supports continuous operation for critical wind power turbines, energy storage systems, and renewable energy infrastructure.
System Components & Design
  • Frame-cabinet design with strategically placed exhaust and drain valves for easy maintenance
  • Comprehensive system includes main circulating pump, electric three-way valve, filter, expansion tank, plate heat exchanger, and control system
  • Advanced temperature and pressure monitoring with both independent operation and remote control capabilities via terminal or serial port communication
  • Engineered for stability across various working conditions with optimized heat dissipation
  • Constructed with stainless steel and purple copper components for compatibility with deionized water cooling medium
Performance Specifications
Heat dissipation power range 10-90 kW
Cooling medium flow range 10-170 L/min
Temperature difference range ≥5℃ between inlet temperature of cooled device and inlet water temperature
Cooling medium Deionized water (external cooling: industrial circulating water)
System static pressure 0.15 MPa
Design pressure 1.0 MPa
Test pressure 1.0 MPa
PH external water coolant 6-9
Key Features
  • Engineered specifically for new energy and wind power applications with high thermal density
  • Fully closed-loop water circulation minimizes contamination and fluid loss, ensuring operational safety
  • Wide cooling medium flow range of 10-170 L/min provides flexible adaptation for diverse industrial systems
  • Maintains a minimum temperature difference of ≥5°C for stable thermal management under continuous operation
  • Modular and compact design allows easy integration into wind power and energy storage facilities
Global Market Applications
With its high reliability and adaptable design, this closed-type water cooling system is built for global deployment. It supports efficient thermal management in wind power generation, renewable energy infrastructure, and industrial power systems worldwide. Trusted by energy system integrators and manufacturers, this cooling system ensures stable operation, reduces maintenance costs, and delivers long-term performance for new energy and wind power projects in the international market.
