XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N
Specifications
Brand Name :
YDPB
Model Number :
XI 200720N
Certification :
ISO
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Model :
XI 200720N
Material :
50Mn Or according to you
Structure :
Cross roller bearing
Dimension :
584x812x58mm
Application :
Manipulators
Name :
INA Cross roller bearing slewing rings
Description

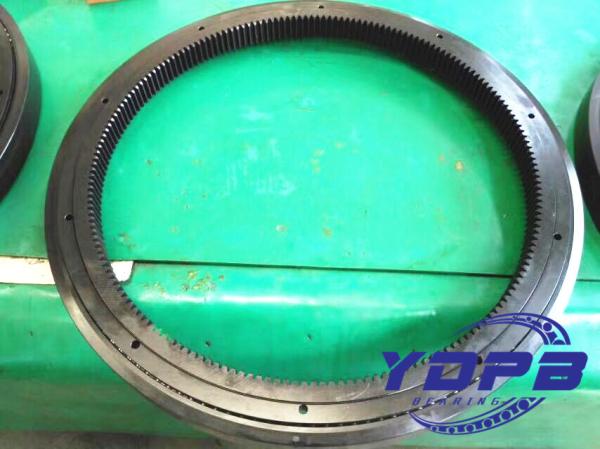

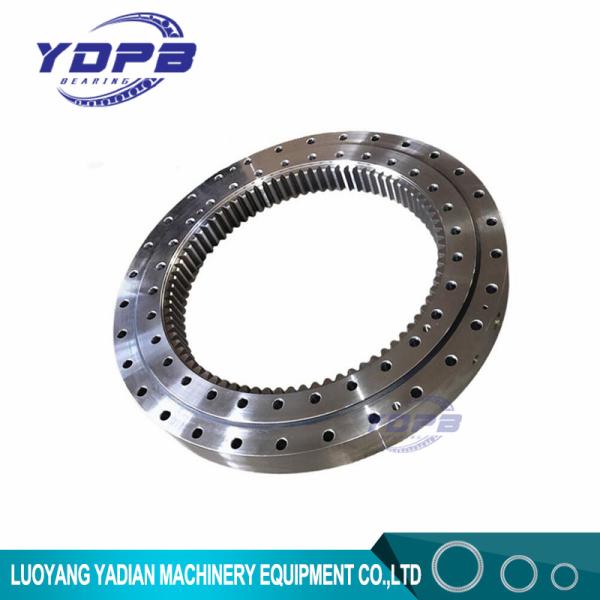

XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N

  • Structure:Cross roller
  • Gear teeth: internal
  • Seals type:double seals
  • Material: 50Mn/ custom made
  • For light duty industrial manipulator or precision robotics.

Structure and Parameters:

XI 200720N slewing ring bearing 584x812x58mm Cross roller XI 180865N China supplier luoyang bearing XI 140897N

Model INA Outer dimension(mm) Mounting dimension(mm) Gear datas(mm)

Axial Static

load

rating (KN)

Weight

(KG)
Da D di H La Li n1 n2 φ1 φ2 m z do x
XIU10/288 XI120288N 216 340 38 324 252 20 20 9 9 4 56 224 340 12
XIU10/420 XI 120420N 332 486 38 462 378 16 16 14 14 4 85 340 500 24
XIU15/489 XI 160489N 384 562 45 538 440 40 40 14 14 6 66 396 710 35
XIU15/575 XI 140575N 462 657 45 625 525 16 16 18 18 6 79 474 830 45
XIU20/635 XI 180635N 504 722 54 690 580 24 24 18 18 8 65 520 1040 65
XIU30/713 XI 300713N 560 817 80 785 640 52 52 18 18 10 58 580 1980 130
XIU20/720 XI 200720N 584 812 58 780 660 40 40 18 18 8 75 600 1420 80
XIU20/865 XI 180865N 736 952 54 920 810 20 20 18 18 8 94 752 1325 90
XIU15/897 XI 140897N 776 976 54 944 850 32 32 18 18 8 99 792 1270 75
XIU30/1128 XI 301128N 936 1258 86 1210 1045 36 36 26 26 12 80 960 2825 285
XIU20/1100 XI 201100N 950 1200 70 1160 1040 30 30 22 22 10 97 970 2000 150
XIU15/1087 XI 141087N 960 1166 65 1134 1040 40 40 18 18 10 98 980 1500 105
XIU25/1120 XI 241120N 960 1228 73 1188 1052 40 40 22 22 10 98 980 2400 195
XIU20/1150 XI 221150N 984 1255 74 1215 1085 40 40 22 22 12 84 1008 2425 200
XIU25/1220 XI 261220N 1060 1330 78 1290 1150 48 48 22 22 10 108 1080 2650 230
XIU30/1304 XI 301304N 1140 1416 86 1380 1228 76 76 20 20 10 116 1160 3240 280
XIU40/1385 XI 401385N 1176 1528 110 1480 1290 56 56 26 26 12 100 1200 3450 490
XIU30/1348 XI 301348N 1180 1465 86 1425 1270 60 60 22 22 10 120 1200 3340 300
XIU30/1500 XI 301500N 1308 1630 86 1582 1418 48 48 26 26 12 111 1332 3710 380
XIU35/1615 XI 341615N 1416 1753 95 1705 1525 64 64 26 26 12 120 1440 4300 470
XIU30/1700 XI 301700N 1498 1830 92 1782 1618 56 56 26 26 14 109 1526 4250 450
XIU35/1785 XI 341785N 1568 1923 95 1875 1695 72 72 26 26 14 114 1596 4800 550
XIU40/1865 XI 401865N 1616 2024 108 1970 1760 68 68 30 30 16 103 1648 5900 750
XIU40/1945 XI 401945N 1722 2088 110 2040 1850 48 48 26 26 14 125 1750 6200 740
XIU20/1905 XI 201905N 1740 2010 82 1970 1840 48 48 22 22 12 147 1764 3450 340
XIU40/2026 XI 402026N 1764 2184 122 2130 1921 72 72 30 30 18 100 1800 6500 900
XIU45/2180 XI 452180N 1920 2355 127 2295 2065 64 64 33 33 16 122 1952 7600 1090
XIU30/2280 XI 302280N 2072 2413 110 2365 2195 84 84 26 26 14 150 2100 5900 760
XIU35/2540 XI 342540N 2286 2700 118 2640 2440 64 64 33 33 18 129 2322 6750 1040
XIU45/2600 XI 452600N 2336 2775 127 2715 2485 76 76 33 33 16 148 2368 8850 1330
XIU25/2686 XI 262686N 2480 2800 114 2760 2615 108 108 22 22 20 126 2520 5800 740
XIU40/2875 XI 402875N 2628 3040 118 2980 2775 72 72 33 33 18 148 2664 9350 1250
XIU30/2980 XI 302980N 2796 3100 109 3060 2900 160 160 22 22 12 235 2820 7200 820
XIU45/3280 XI 453280N 3006 3455 127 3395 3165 96 96 33 33 18 169 3042 11550 1710
XIU50/3383 XI 503383N 3100 3565 138 3505 3260 116 116 33 33 20 157 3140 14400 1970
XIU35/3403 XI 343403N 3168 3560 110 3500 3305 80 80 33 33 16 200 3200 9100 1290
XIU50/3500 XI 503500N 3200 3690 138 3630 3370 124 124 33 33 20 162 3240 14100 2170
XIU50/3720 XI 503720N 3420 3910 138 3850 3590 132 132 33 33 20 173 3460 15000 2310
XIU50/3820 XI 503820N 3520 4010 138 3950 3690 136 136 33 33 20 178 3560 15400 2370
XIU60/4035 XI 604035N 3720 4234 160 4174 3896 144 144 33 33 20 188 3760 17600 3100

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available


Online shopping Address: www.ydpbbearings.com
