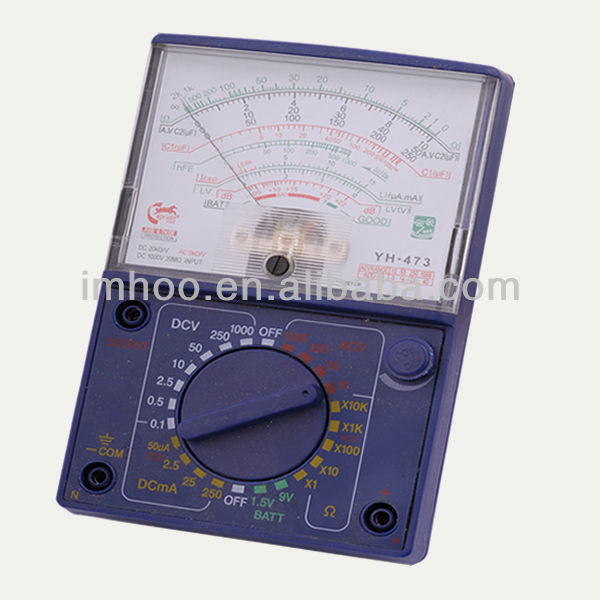

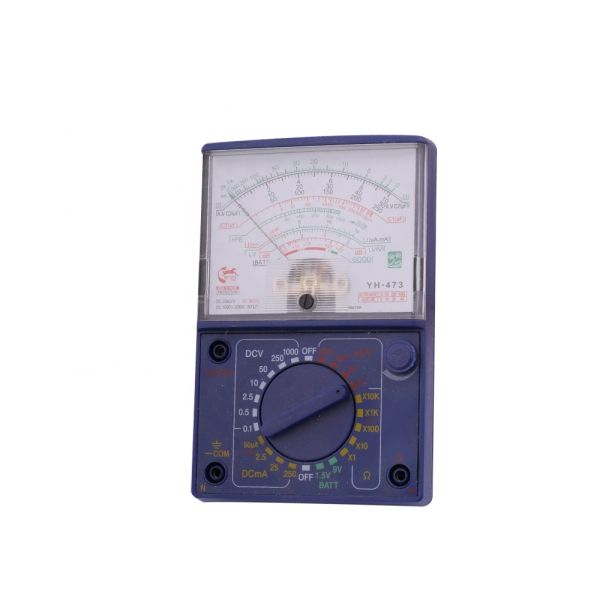

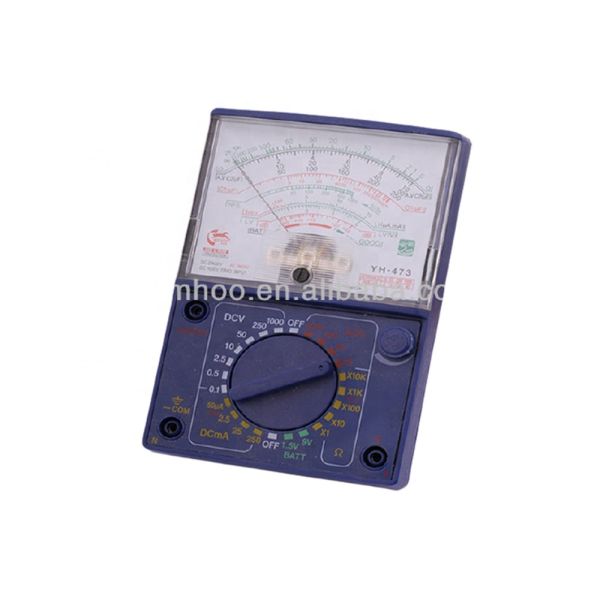

High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
High Accuracy Regular 473 Digital Analog Multimeter
Specifications
Measuring Current Range :
50uA~250mA
Measuring Voltage Range :
0.1~1000V
Model Number :
473
Brand Name :
Imhoo
Place of Origin :
Jiangsu, China
Dimensions :
1650x100x36mm
Measuring Capacitance Range :
100pF~2000uF
Measuring Inductance Range :
/
Measuring Resistance Range :
1~10KΩ
Operating Temperature :
0~40℃
color :
blue
MOQ :
1000 units
Price :
$1-7.90 / unit
Description
High Accuracy Regular 473 Digital Analog Multimeter

Professional-grade multimeter combining digital and analog functionality for precise electrical measurements across multiple parameters.

Key Features
  • Fuse and Diode protection for enhanced safety
  • Transistor & LED testing capabilities
Technical Specifications
Capacitance Test

Ranges: 100pF / 0.025uF / 2.5uF / 25uF / 2000uF

Accuracy: ±3% f.s

Measurement Type Ranges Accuracy
DC Voltage 100m / 500m / 2.5 / 10 / 50 / 250 / 1000V (20KΩ/V)
2.5KV (with Hvprobe)		 ±3% f.s
AC Voltage 10 / 50 / 250 / 1000V (9KΩ/V) ±4% f.s
DC Current 50u / 2.5m / 25m / 250mA ±3% f.s
DC Current (High) 2.5A / 10A ±5% f.s
Resistance 2 / 20K / 200K / 2M / 20mΩ ±3% of arc
Additional Functions

dB Range: -10~62dB

LI Measurement: 150u / 1.5m / 15m / 150mA

Battery Test: 1.5V, 9V

Physical Specifications

Power Supply: R6 (1.5V) x 2, 6F22 (9V) x 1

Dimensions: 150 x 100 x 36mm

Weight: 280g
