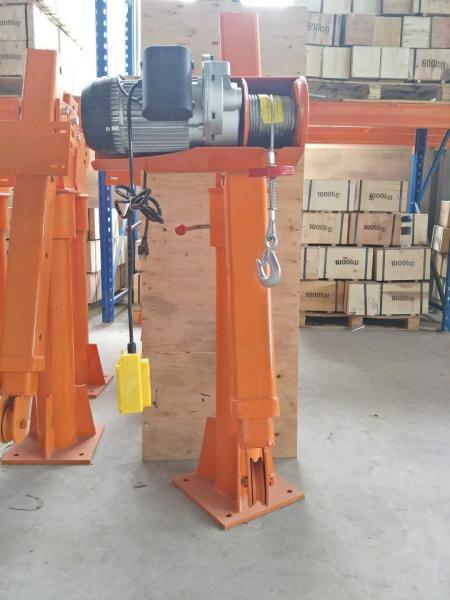

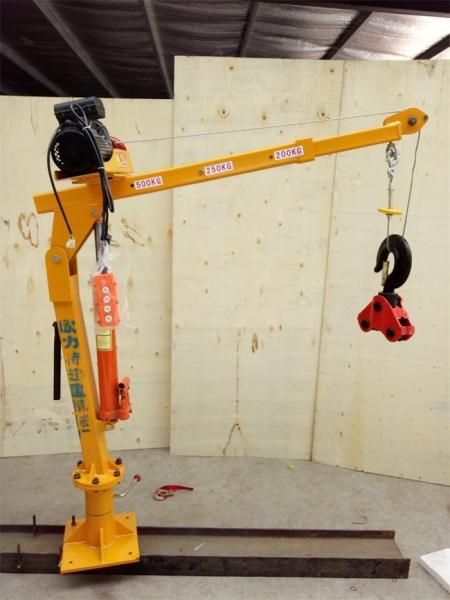

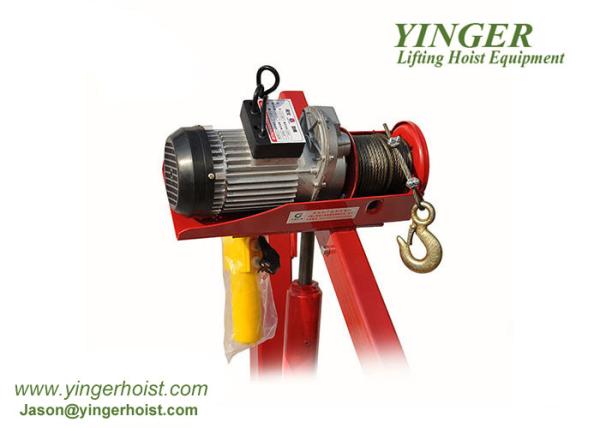

YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
Specifications
Brand Name :
YINGER HOIST
Model Number :
HP
Certification :
CE GS ROSH
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Rated Loading Capacity :
500KG
Product name :
Vehicle mounted crane
Switch cable :
4.2m
lifting speed :
2.5/4.5m/min
Description

AC 220v 500Kg Mini Lifting Hoist Pickup Truck Lift Crane For Crane Hoist

YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane

Features

Compact, easy to install

Max loading and unloading capacity:1000lbs

Simple to operate

360° Free manual rotation

All shafts and pins stainless steel

SPECIFICATIONS FOR 500kg Truck Crane
Single line Lifting Capacity(maximum)
500kg
Double-line Lifting Capacity(maximum)
800kg
Lifting Height Max.Std.(base to hook)
1940mm
Reach Max.(from center of rotation)
1490mm (see Figure 3)
Rotation (continuous) with Brake
360° Manual
Lifting Cable
4.8mm x 4.5m –1pc(for single-line lifting)
4.8mm x 5.5m—1pc(for double-line lifting)
Line speed with No Load
3.6m/min single line
Power Requirements
12V DC 125 amps
Switch Cable
4.2m
Mounting Base
250x250x18mms
Mounting Bolt Hole Pattern
170x170mms
Finish
Powder Coated
Packing Size
140x39x35cm
Weight
N.W.57kgs G.W.60kgs
YINGER HOIST AC 220V 500kg Hydraulic Pickup Crane 4.2m Length Switch Cable For Crane Hoist hydraulic shop crane
