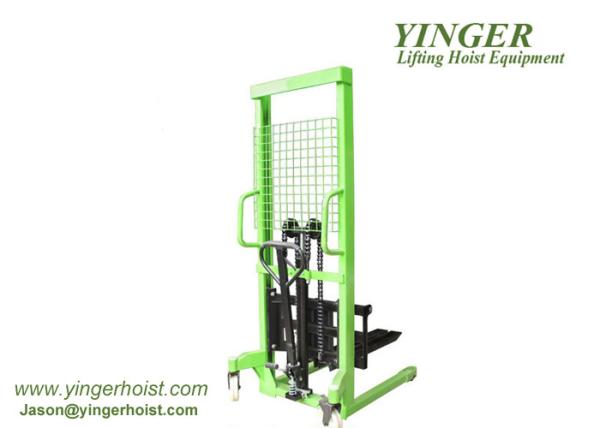

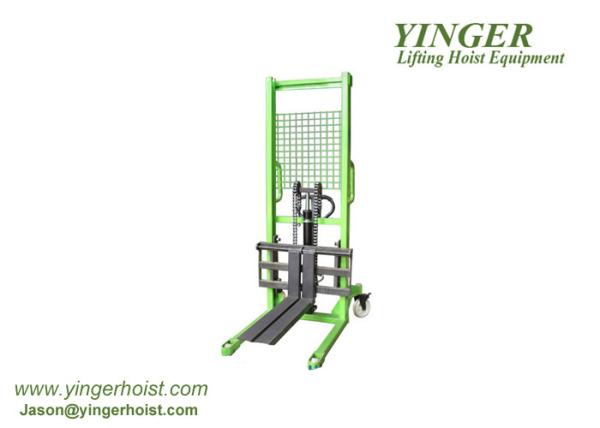

Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker
Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker
Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker
Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker
Specifications
Brand Name :
YINGER HOIST
Model Number :
CBY
Certification :
CE GS ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Oil Cylinder :
casting
Application :
materials handling
Rated Loading Capacity :
2000kg
Fork Width :
550/685mm
Product Name :
manual hand hydraulic fork lifter
weight :
80KG
Description

2000kg Manual Hand Fork Lifter Hydraulic Hand Forklifts Stacker

Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker

  1. The hydraulic consists of three parts:the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
  2. The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
  3. The oil-reflow valve is placed in the hydraulic device.
  4. The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.
manual forklift manual pallet stacker
CTY-D10
CTY-D15
CTY-D20
Load Capacity
kg
1000
1500
2000
Load Center Distance
mm
500
500
500
Front wheel
Φ80*75
Φ80*75
Φ80*75
Driving Wheel
Φ180*50
Φ180*50
Φ180*50
Front wheel Base
mm
600
600
600
Driving Wheel Base
mm
690
690
690
Fork Lift Height
mm
2000/2500/3000
2000/2500/3000
2000/2500/3000
Fork Ground learance(Forging)
mm
75
75
75
Width of Fork(Forging)
mm
200-910
200-910
200-910
Length of Fork(Forging)
mm
900
900
900
Overall Length
mm
1300
1300
1300
Overall Height
mm
1580/1830/2080
1580/1830/2080
1580
Overall Width
mm
960
960
960
Net Weight
Kg
275/310/345
285/320/355
300

Manual Pallet Truck 550 / 685mm Fork Width And Controlled Descending Speed mini hand pallet truck manual pallet stacker
