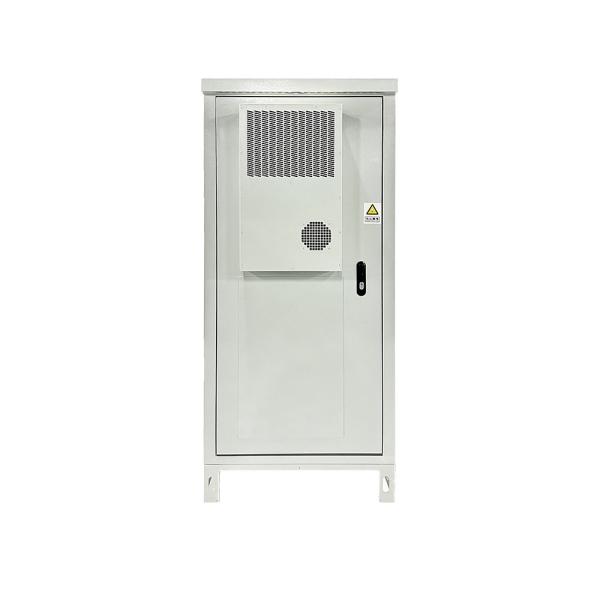

IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
Specifications
Model Number :
YM010
Brand Name :
YIMA
Place of Origin :
Guangdong, China
Certification :
CE/RoHS/UN38.3/MSDS
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$5,886.00/pieces 2-9 pieces
Battery Type :
LiFePO4, LiFePO4 Battery Pack
Dimension (L*W*H) :
1000*1280*1800mm
Weight :
1100kg
Communication Port :
RS485, CAN
Protection Class :
IP54
Grid connection :
Hybrid grid
Cooling :
Air Cooling
Product name :
Solar Energy Storage Battery
Application :
Industrial and Commercial Energy Storage Battery
Cycle life :
6000 Times
OEM/ODM :
Aceeptable
Warranty :
3-5 Years
Communication :
CAN/RS485
Nominal Capacity :
100KWH
Battery cell :
BYD Cell
Port :
Shenzhen/Hongkong
Description

High Voltage Solar Energy 100KWH Industrial and Commercial Energy Storage Container Containerized BYD Batteries

Our Advantage:

12 years professional experience
5 years warranty
24 hours service time
100% grade A cells
Products Description
Type
H100L
Basic Parameters
Nominal Voltage
768V
Rated Capacity
130AH
Rated Energy
100KWH
Internal Impedance
≤100mΩ
Group Plan
1P240S
Standard charge
26A
Standard discharge
26A
Max Charging Current(Icm)
100A
Max continuous Discharging current
100A
Upper limit charging voltage
840V
Discharge Cut-off voltage(Udo)
660V
Communication
Modbus-RTU/TCP
Operating temperature
-20-50℃
Operating humidity
≤95% (No condensation)
Highest work altitude
≤3000m
Dimension
1280*1000*1800mm
Weight
1100kg
Communication Interface and Protocol
Ethernet, Modbus TCP/IP
Design Standard
IEC 62933, IEC62619, GB_T36558
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
IP54 100KWH High Voltage Commercial Solar Energy Storage Containerized With BYD Batteries
Company Profile
Shenzhen Yima Power Supply Co., Ltd. (hereinafter referred to as "Yima"was established in 2017. Yima is mainly committed to the research and development, producing and sales of lithium-ion 18650 21700 series cells and battery modules. Our products are widely used in four major sectors: Two-wheeler market (E-Bike, electric motorcycle/scooter, golf cart), Robot market (AGV, AI, early childhood education robot), Energy storage market (solar lights, industrial energy storage, household energy storage), Power tools market (garden tools, vacuum cleaners, sweepers).
Yima is High-tech enterprise, has passed the ISO9001 and ISO14001 quality and environmental management system, and all product have passed CE, UN38.3, MSDS, UL, ROSH and other certification.
Yima not only insist on principle of quality first, but also insist on the concept of technology first. And has cultivated a technical team from BAK, ATL, Sunwoda, central south University and other famous enterprise in the industry.
