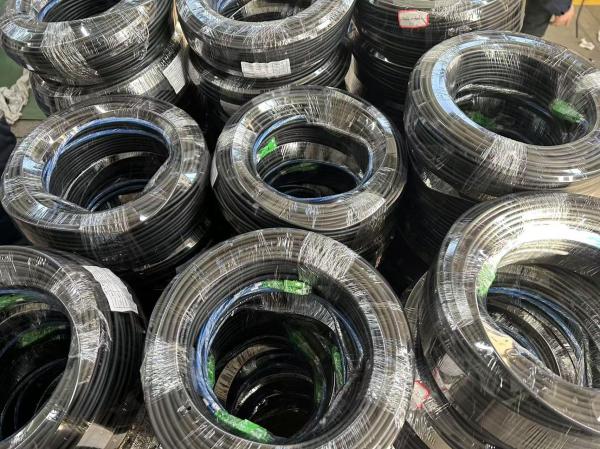

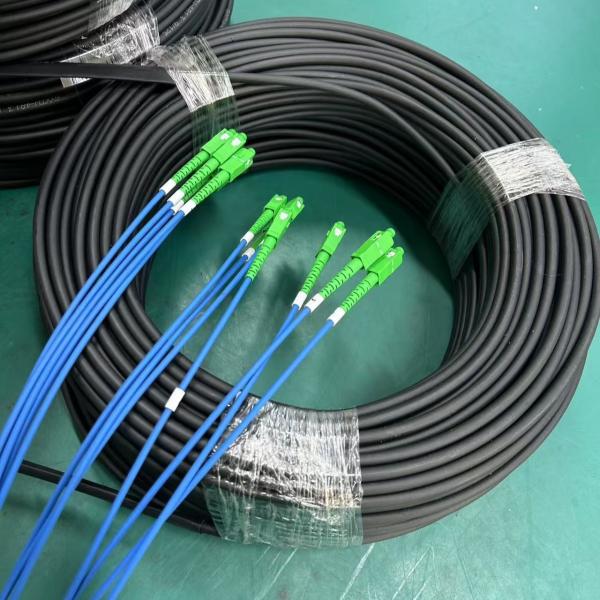

Pre-connected 1 Core G657A1 FTTH Drop Cable Patch Cord with SC UPC APC Connectors 50M 100M
Pre-connected 1 Core G657A1 FTTH Drop Cable Patch Cord with SC UPC APC Connectors 50M 100M
Pre-connected 1 Core G657A1 FTTH Drop Cable Patch Cord with SC UPC APC Connectors 50M 100M
Pre-connected 1 Core G657A1 FTTH Drop Cable Patch Cord with SC UPC APC Connectors 50M 100M
Specifications
Brand Name :
Ebocom
Model Number :
Drop Cable Patch Cord
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 Pieces
Price :
1 USD per Piece
Payment Terms :
L/C, T/T
Delivery Time :
3-10 days
Packaging Details :
Plywood Drum or Custimized
Length :
50m/100m/150m/200m/customized
Application :
FTTH FTTB FTTX Network
Jacket :
LSZH
Warranty :
1 Year
Connector type :
SC-SC/Customized
Fiber type :
G657A1
Sheath color :
black/white
Sample :
Avaliable
Description

Product Overview

Ebocom provides FTTH drop cable patch cords with SC connectors, also called SC drop cable jumpers, designed for fiber-to-the-home (FTTH) networks. These pre-terminated cables are manufactured with single mode G.657A1/G.657A2 fibers and are available with SC/UPC or SC/APC polishing.

The SC drop cable patch cord simplifies FTTH installation by eliminating field splicing. It ensures low insertion loss, stable transmission, and reliable performance in last-mile fiber access. With customizable lengths and jacket types, it is widely used by telecom operators, ISPs, and data center projects.

Key Features

  • Connector: Factory-installed SC/UPC or SC/APC.

  • Fiber Type: G.657A1 or G.657A2 bend-insensitive single mode fiber.

  • Easy Installation: Plug-and-play design, no splicing required.

  • Durability: Reinforced with FRP or steel wire, jacket options LSZH.

  • Customization: Length, jacket color, and packaging available.

Applications

  • FTTH and FTTB fiber access

  • Optical distribution networks (ODN)

  • Telecom and ISP projects

  • Home and office broadband connections

Technical Specifications

Item Specification
Fiber Type Single Mode G.657A1 / G.657A2
Fiber Count 1 / 2 cores
Connector Type SC (UPC / APC)
Jacket Material LSZH / PVC
Cable Type Flat Drop Cable (GJYXCH / GJYXFCH)
Length Options 1m – 100m (customizable)
Insertion Loss ≤ 0.3 dB
Return Loss ≥ 50 dB (UPC) / ≥ 60 dB (APC)

Pre-connected 1 Core G657A1 FTTH Drop Cable Patch Cord with SC UPC APC Connectors 50M 100M

Why Choose Ebocom SC Drop Cable Patch Cords?

  • Professional manufacturer with ISO-certified production lines.

  • 100% tested for insertion loss and return loss before delivery.

  • Flexible OEM/ODM services to meet customer requirements.

  • Reliable supply for telecom operators and FTTH projects worldwide.
