2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
2.0mm Fiber Optic Patch Cable
Specifications
Brand Name :
Ebocom
Model Number :
SC/UPC-SC/UPC
Certification :
ISO
Place of Origin :
China
MOQ :
50
Price :
USD 0.12-2 Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pieces per day
Delivery Time :
5-10 days
Packaging Details :
Custimized
Length :
1m 2m or Customized
Color :
Yellow/Orange or as required
Jacket :
PVC or LSZH
Connector type :
Lc-Lc/Customized
Fiber type :
OM3,OM2,OM1,G657A1,OM4
Sample :
Avaliable
Description

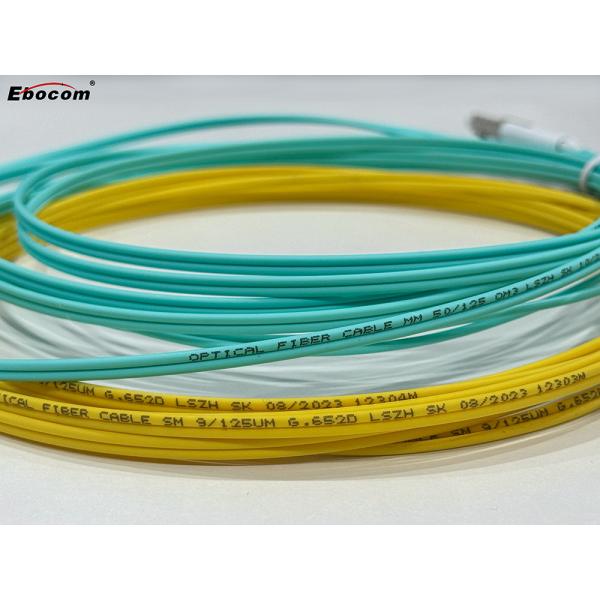

SC/UPC-SC/UPC Duplex Multimode OM3 2.0mm Fiber Optic Patch Cable

Description:

Fiber splicing cables are ideal for supporting fiber optic applications in high-speed telecommunications networks. It can provide OM1, OM2, OM3, OM4, OM5, or OS2 optical fibers to meet the requirements of Gigabit Ethernet, 10-Gigabit Ethernet, and high-speed Fibre Channel. Each terminal is subjected to rigorous parametric testing to ensure the highest network performance.

2.0mm Fiber Optic Patch Cable

Application

Local ring net

Optical fiber sensor

Optical fiber test equipment

Optical fiber communication system

FTTH, LAN, PON & Optical CATV

2.0mm Fiber Optic Patch Cable2.0mm Fiber Optic Patch Cable

Product Performance

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
End-face Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (ºC) -40~+80

2.0mm Fiber Optic Patch Cable
