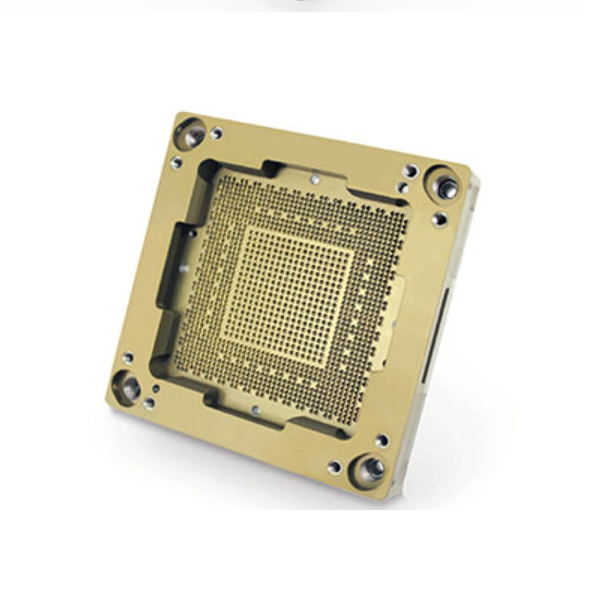

Customization Precision Machined Semiconductor Test Socket High Performance
Customization Precision Machined Semiconductor Test Socket High Performance
Specifications
Brand Name :
Yiding
Certification :
ISO 9001
Place of Origin :
Guangdong, China
MOQ :
5
Supply Ability :
1000peice/week
Delivery Time :
10-15Business days
Material Specification :
Stainless Steel 17-4PH (standard), Beryllium Copper (high-cycle), Titanium (lightweight); optional nickel or gold plating.
Dimensional Tolerances :
Critical Features – ±0.005 mm (device alignment); Overall Body – ±0.02 mm
Flatness/Coplanarity :
≤0.01 mm across seating surface (ensures uniform contact pressure).
Pin/Lead Channel Width & Depth :
Width – ±0.003 mm; Depth – ±0.005 mm (adjustable for lead deflection).
Pin/Lead Channel Pitch Accuracy :
±0.005 mm (fine-pitch ICs), ±0.01 mm (standard).
Description

Product Overview

The Semiconductor Test Socket Guide is engineered to deliver consistent performance across thousands of test insertions. By controlling vertical axis movement, it prevents off-axis actuation that can cause uneven contact force or premature probe wear. Precision-machined guide holes with chamfered lead-ins and optimized clearance profiles ensure smooth compression of pogo pins. The result is repeatable contact resistance, extended socket life, and superior reliability in high-throughput ATE environments.


Surface & Finish


  • Contact Channels: Ra ≤ 0.2 µm (mirror finish)

  • Non-Contact Surfaces: Ra ≤ 0.8 µm

  • Burr-Free: Micro-deburred edges, ISO 13715 compliant



Protective Coatings & Plating Options


  • Hard-coat anodizing (Aluminum)

  • Electroless Nickel (50–100 µin)

  • Gold Flash (0.1–0.3 µin) for enhanced conductivity



Cleanliness & Packaging


  • Class 100 cleanroom packaging

  • Non-volatile residue <5 µg/cm²

  • Ion-free option available


Certifications

ISO 9001:2015 | IPC-9592 (High-Reliability) | MIL-STD-883


Technical Advantages


  • Built from CTE-matched polymers or ceramic-filled compounds for resistance to thermal distortion

  • Maintains dimensional stability at temperatures >150 °C during HTOL and burn-in procedures

  • Prevents warping, misalignment, or probe disengagement under thermal cycling

  • Designed for >100,000 insertions with high-hardness composites and abrasion-resistant materials

  • PTFE fillers or dry-film coatings reduce friction, galling, and particle generation



With its precision engineering, the Semiconductor Test Socket Guide ensures dimensional integrity, long-term durability, and reliable test results — even under demanding mechanical and thermal conditions.
