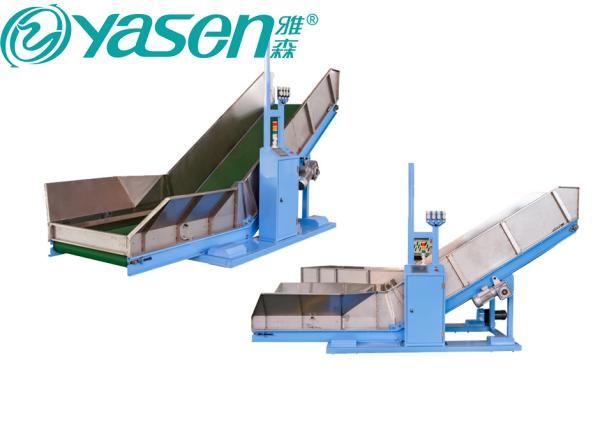

Laundry Conveyor Transfer Shuttle Cart
Laundry Conveyor Transfer Shuttle Cart
Laundry Conveyor Transfer Shuttle Cart
Laundry Conveyor Transfer Shuttle Cart
Specifications
Rated Load Capacity :
≥300 KG
Conveyor Belt Width :
1000mm
Power Supply :
380/3/50 V/Ph/Hz
Shifting Motor Power :
0.75Kw
Conveyor Motor Power :
1.5Kw
Net Weight :
680KG
Description

Shuttle Car Technical Features & Specifications

Key Features:

  1. Automatic Distribution System
    Equipped with an automatic spreading function to prevent linen clumping, ensuring optimal loading into the dryer.

  2. Precision Positioning Design
    Utilizes a binary code positioning system for accurate and reliable operation, preventing misalignment or operational failures.

  3. Intelligent Detection
    Automatically detects position and distance, enabling smart acceleration/deceleration for efficient linen transfer.

  4. Braking & Positioning
    Integrated braking mechanism ensures stable positioning during loading/unloading, preventing unintended movement.

  5. High Load Capacity
    High-torque drive system supports a carrying capacity of ≥300 kg.

  6. Extended Distribution Range
    Long conveyor belt enables effective linen distribution, reducing manual intervention and improving workflow efficiency.

Technical Parameters:

Parameter Unit CZ-4200
Rated Load Capacity kg ≥300
Conveyor Belt Width mm 1000
Power Supply V/Ph/Hz 380/3/50
Conveyor Motor Power kW 1.5
Shifting Motor Power kW 0.75
Net Weight kg 680
Overall Dimensions (W×D×H) mm 4255×1640×2192

Industry Application Context:

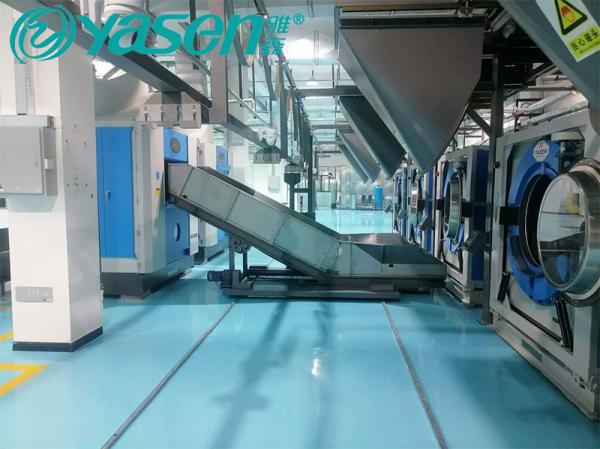

This shuttle car is designed for integration with Yasen’s intelligent washing systems (e.g., tilting washers, tunnel systems), enabling seamless automation in high-volume laundry operations for hotels, hospitals, and commercial laundries. Its precision positioning and distribution capabilities enhance efficiency, reduce labor, and ensure compatibility with downstream equipment (e.g., dryers, sorting lines).
