Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Free spare parts, Online support
Power :
5.5kw
Weight :
2000kg
Size :
1600*1600*1900mm
Product name :
Sanitary isolation washing machine
Capacity :
30kg-100kg
Heating :
Steam Heating or Electric Heating
Model :
BW
Used for :
Hotel.factory .laundry Hospital
Material :
Stainless Steel
Type :
Fully Automatic
Power Supply :
380/3/50 (V/p/Hz)
Cleaning Type :
Clean-In-Place (CIP)
Brand :
YASEN
Packaging Details :
WOODEN PACKAGE
Port :
SHANGHAI
Supply Ability :
100 Set/Sets per Month
Price :
$9,000.00 - $14,000.00/sets
MOQ :
1pc
Description
Barrier Washer Extractor for Hospital Laundry 1600×1600×1900mm Clean-In-Place CIP Now
Barrier Washer Extractor for Hospital Laundry 1600*1600*1900mm Clean-In-Place CIP Now Barrier Washer Extractor for Hospital Laundry 1600*1600*1900mm Clean-In-Place CIP Now Barrier Washer Extractor for Hospital Laundry 1600*1600*1900mm Clean-In-Place CIP Now Barrier Washer Extractor for Hospital Laundry 1600*1600*1900mm Clean-In-Place CIP Now
Applications
SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is used for washing cotton, wool, chemical fiber, and other fabrics.
Product Overview

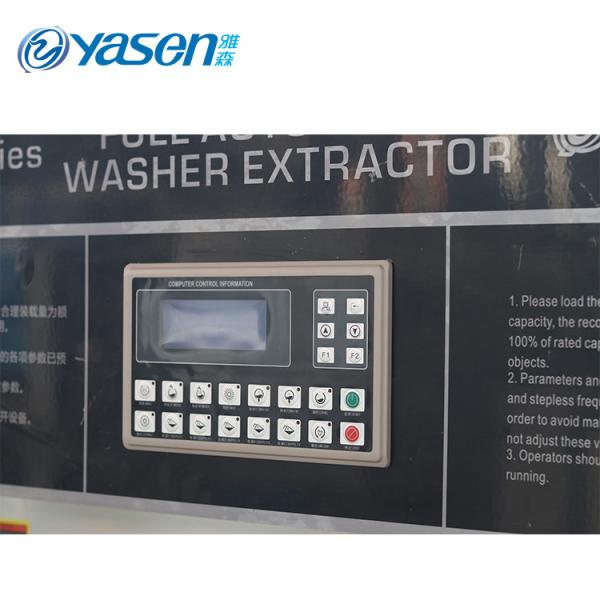

Full-automatic control by computer control system. SXT-F washer-extractor has professional computer control system, excellent capacity and superior functionality, containing 30 programmable procedures and 5 standard programs, all designed with user-friendly features.
Key Features
  • High Strength & Long Durability: Creative stainless steel drum design ensures prolonged machine lifespan during overload situations. Outer vat made of stainless steel resists corrosion and provides high stability.
  • Advanced Shaft Design: High-strength big shaft-pedestal and high-accuracy short shaft effectively reduce transverse vibration. Bearing of major shaft uses high-precision core for extended lifespan.
  • Patented Seal Technology: State invention patent for major shaft seal technology with double water-proof design, imported fluorine rubber seal material, and special compartment design.
  • Minimal Vibration: Scientifically added overload weight combines gravity of suspended object and center of vibration source for perfect balance. Vibration-reducing efficiency up to 98%.
  • Quality Construction: Frequency-conversion drives for stable, quiet operation. High-quality bearings for long lifespan. Stainless steel panel with high corrosion resistance.
  • Safety Features: Patented safe door-lock union design ensures operational safety.
  • Automated Detergent System: Five compartment automatic detergent adding system with nylon combination structure for high corrosion resistance.
  • User-Friendly Design: Larger diameter loading door with ergonomic design for convenient loading and unloading, reducing labor intensity.
  • Heating Options: Available with steam heating or hot water heating.
After-Sales Service
  • One-year warranty for the complete machine
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Overseas engineer service available
Installation & Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service under contract
Warranty
Main spare parts (excluding consumable accessories) under ONE YEAR warranty with defects from manufacturer by free shipping.
Product Specifications
Model SXT-150F SXT-200F SXT-300F SXT-500F SXT-700F SXT-1000F SXT-1500F
Rated Capacity (kg) 15 20 30 50 70 100 150
Drum Dimension (mm) Φ636×472 Φ730×450 Φ900×470 Φ970×650 Φ1200×620 Φ1200×840 Φ1470×880
Washing Speed (r/min) 42 42 40 40 35 35 30
Extracting Speed (r/min) 850 800 770 740 670 670 610
Rated Voltage (V) 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V
Motor Power (kw) 1.5 2.2 3 4 7.5 7.5 15
Water Inlet (lnch) G3/4" G1" G1" G1.5" G1.5" G1.5" G2"
Steam Inlet (lnch) G1/2" G1/2" G3/4" G1" G1" G1" G1.5"
Electric Heating Power (kw) 9 18 27 36 54 72 -
Steam Pressure (Mpa) 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5
Steam Consumption (kg/kg) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Drainage Dimension (mm) Φ60 Φ60 Φ80 Φ90 Φ127 Φ127 Φ127x2
Air Pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Noise dB(A) <78 <78 <78 <78 <78 <78 <78
Dimension W×D×H (mm) 1150×1050×1510 1200×1100×1620 1340×1450×1750 1510×1600×1780 1750×1800×1980 1920×2150×1990 2150×2420×2350
Net Weight (kg) 450 550 1300 1500 2800 3200 5500
